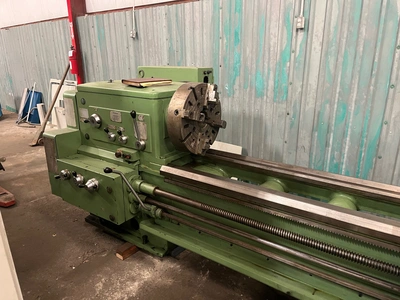

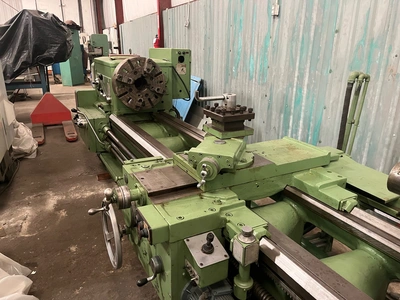

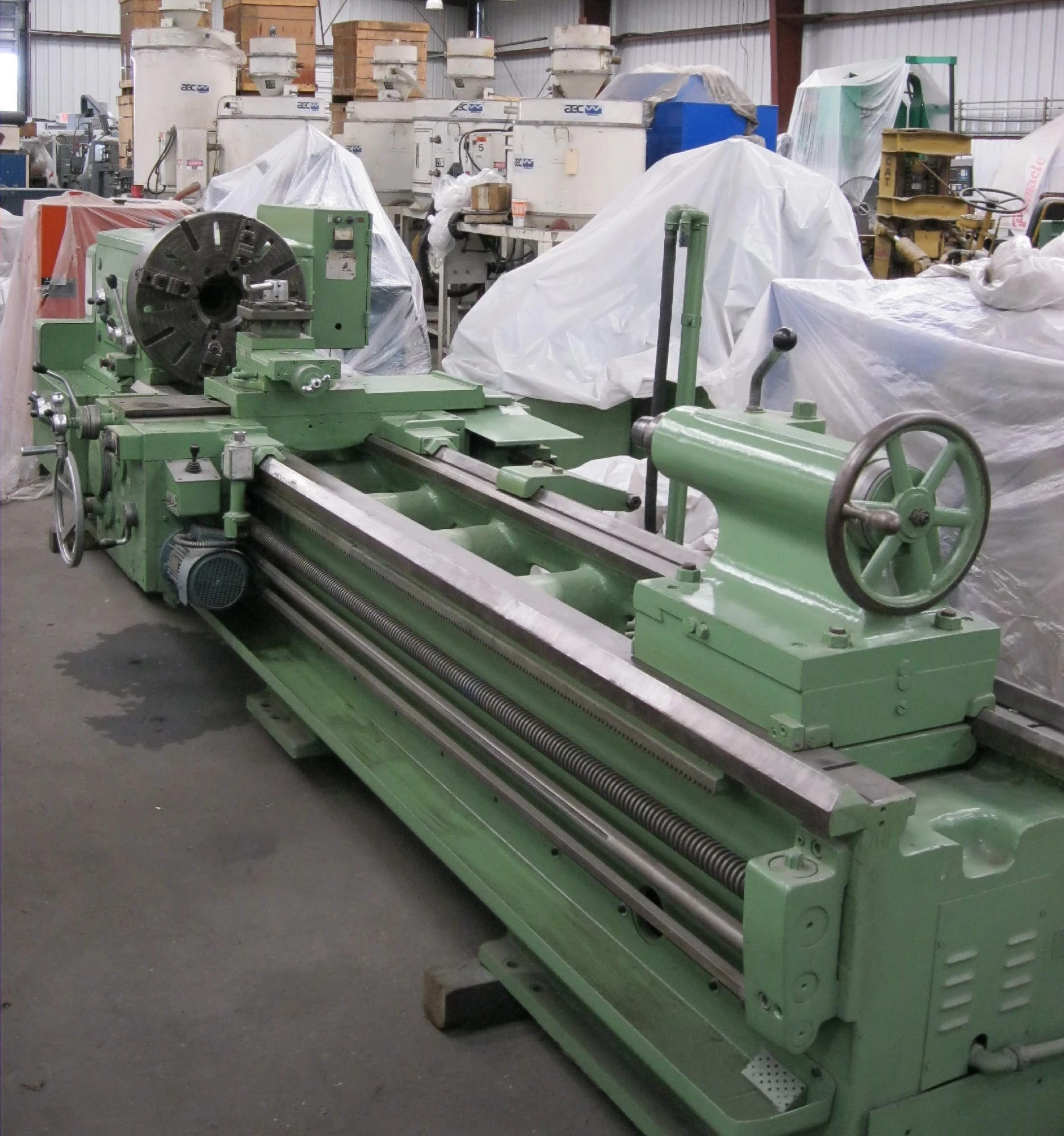

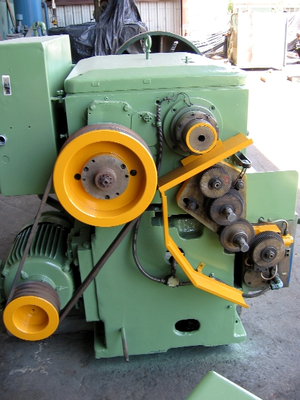

Model 1M63N
Serial number 4749 (1991)
Swing over the bed 27.56”
Swing over the carriage 13.78”
Cross slide travel 15”
Center distance 118”
Chuck 20” 4-jaw with a
5”
bore,
2-piece top jaw
Spindle hole 3.4”
Threading Inch, Metric, Diametral
and Modular threading
Spindle speeds 10-1250, 22 steps,Feeds 32
Main motor 20 hp
Electrics currently 440volt
Dimensions 206” Long x 70” wide x 60” high
Weight 12,600 lbs.
Price: $ 15,500 FOB Houston, TX Subject to prior sale.
Current new cost on this lathe is $ 75,000. Shamrock Machinery and
Stan Canada import these lathes and stock parts for the machines.
