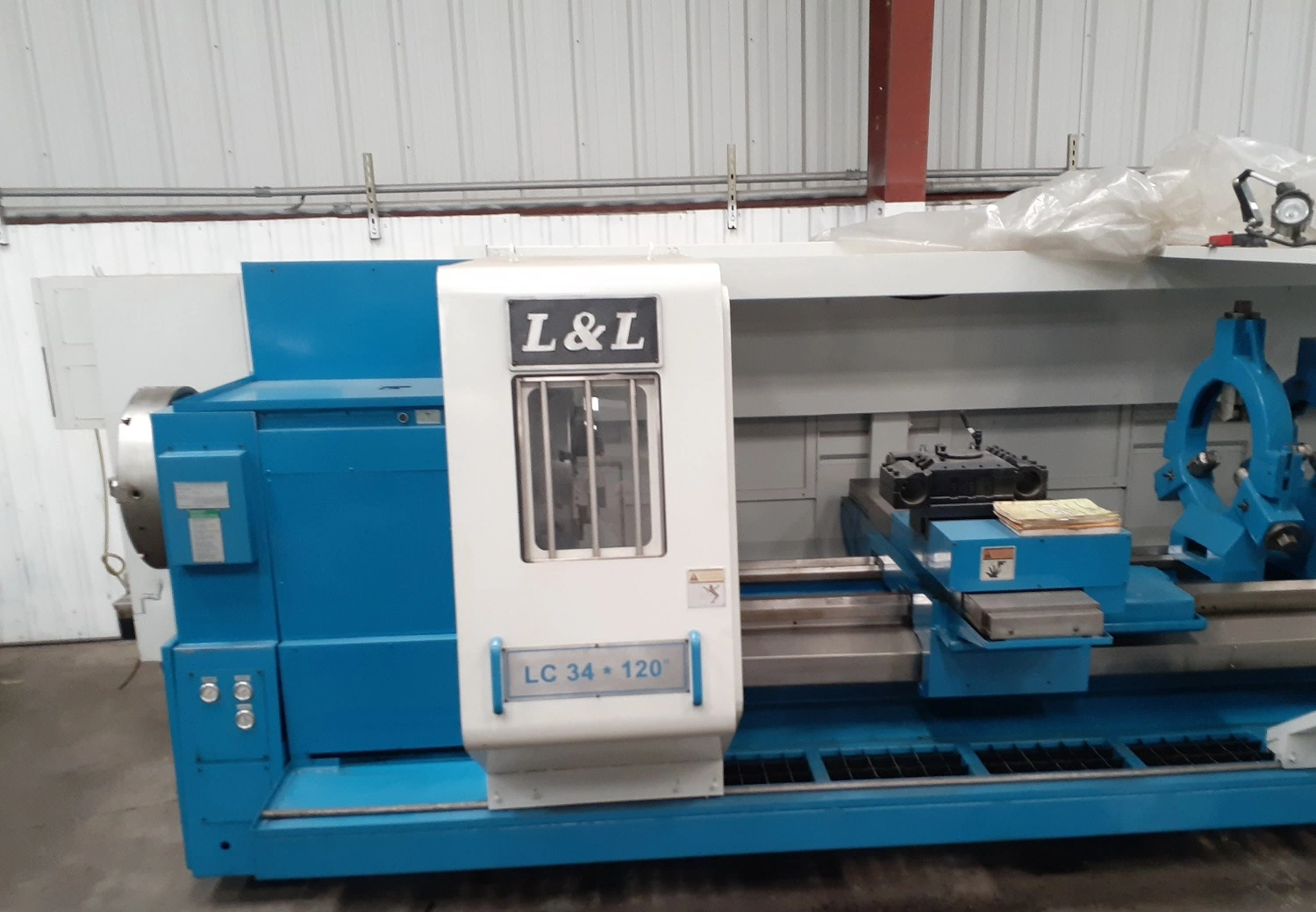

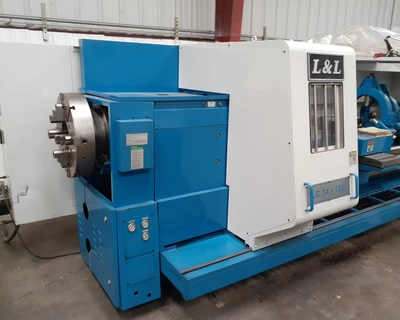

L & L CNC FLAT BED BIG BORE LATHE

Model

LC 34

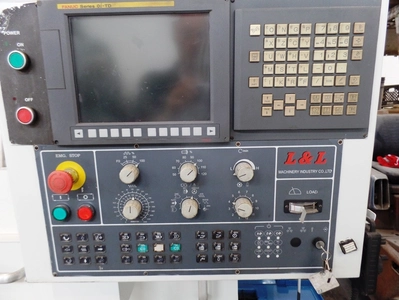

CNC
control

Fanuc OiTC

Serial
number/YOM

TLA203409129/2009

Swing
over bed

34”

Swing
over cross slide

20”

Center
height

17.3”

Width
of carriage

35”

Center
distance

124”

Width
of bed

22”

Spindle
bore

9.25
”

Spindle
nose

A-15

Chucks

F&R Four jaw 24 O.D. x10.5” I.D.

Steady
rests

(2) 12” & 18”

Spindle
speed

4-400 rpm.

Tailstock center

MT # 5

Main
motor

30/37 hp.

Turret
stations

4 stations

Tailstock quill diameter

6.4”

Tailstock center

MT #6

Feeds:

X-axis

6M/min.

X-axis
range

0.1mm/min—3000mm/min.

X-axis
travel

20”

Z-axis
rapid traverse

4M-6M/min.

Z-axis
range

0.1mm/min—3000mm/min.

Z-axis
traverse

157”

Coolant


Yes

Chip conveyor

 Front chip pan & Rear
chip conveyor

Guards

Front door and rear splash guard

Price:

$ 97,500.

FOB
Houston, TX.

Subject to
Prior Sale.

L&L CNC lathe video link:

https://youtu.be/QP9a6n3qB2o
