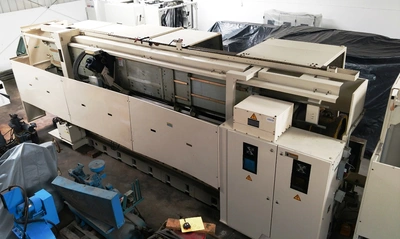

OKUMA LU45-N CNC LATHE

SPECIIFICATIONS:

Model

LU45

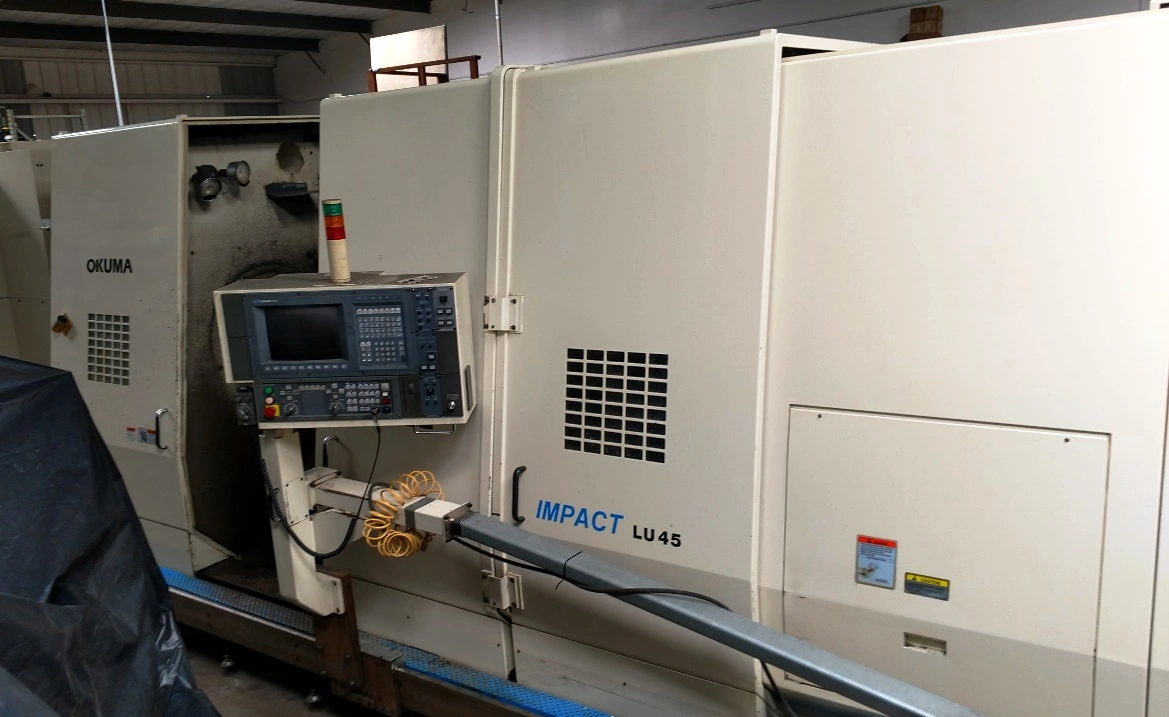

CNC
control

OSP-E100L


Serial
number/YOM

102386

/12 of 2002


Swing
over bed

33"

Max.
turning diameter


XA/XB

23"/18”

Center
distance

121”

Travels, Z axis

120"

X-axis

26"

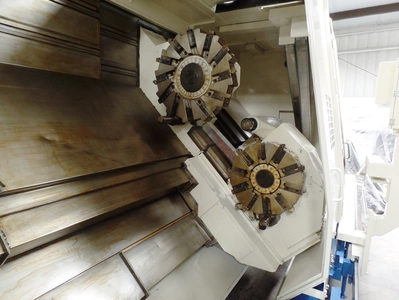

Turret
stations

12 upper/8 lower

Follow
rest

Yes, on lower turret

Spindle
bore

10.23”

Spindle
nose

A-2-20

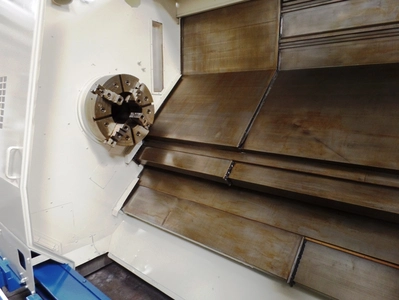

Chucks

(2) 24” Noble 4-jaw F& R with 12.5” bore

Spindle
speed

31-900 rpm.

Spindle
nose

A2-20

Quill
diameter

5.12", MT No. 5

Main
motor (Cont./30 Min)

50
HP / 60 HP


Electrics

220/480/3/60

Machine
weight

56,217 lbs.


Price:

$ 169,500.

Subject to Prior Sale.

Programming:


¨

Conventional two-axis programming steps and language.

¨

OSP makes the conversions for the lower turret .

¨

Machining is executed in the order of “P-codes” (P1--Pn ) as
assigned

by the programmer.
