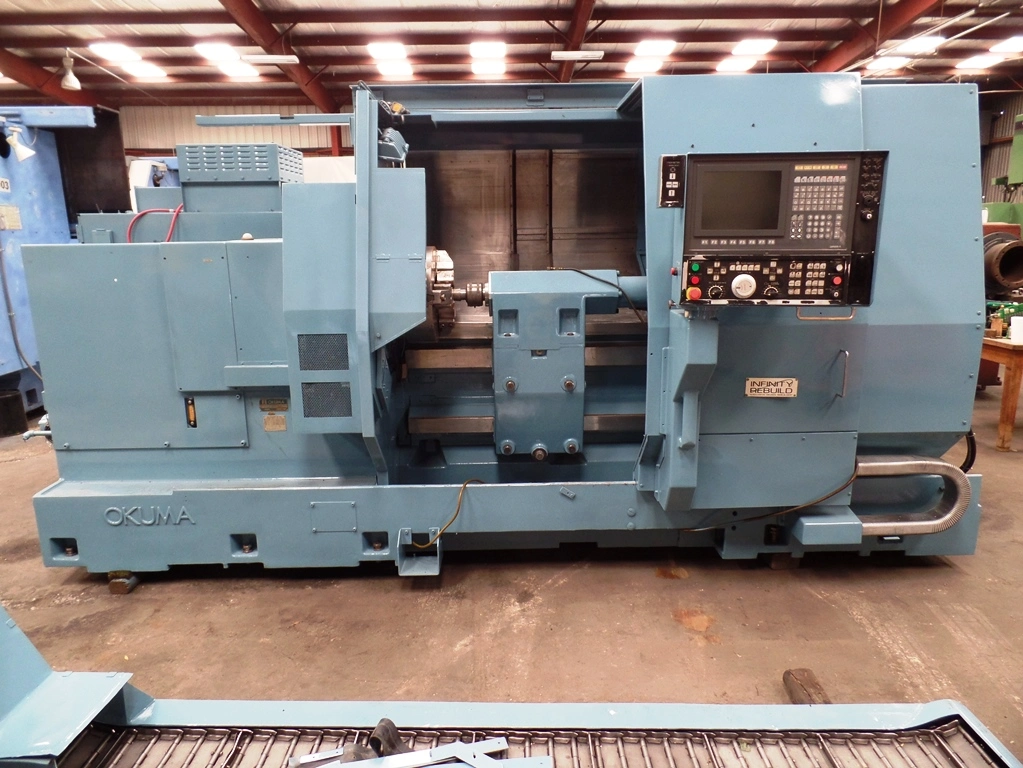

OKUMA LC 40 1SC CNC LATHE

Specifications
:

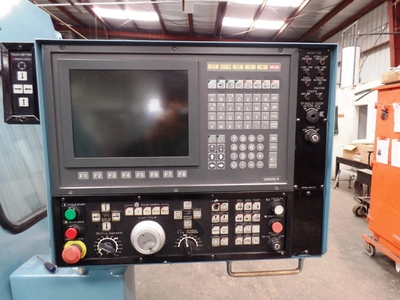

CNC control

OSP 5000G with graphics

Model

LC 40 1SC

Serial Number

0102-1734*

Number of
Controlled Axis

2

Maximum Swing
Over Bed

23.62”

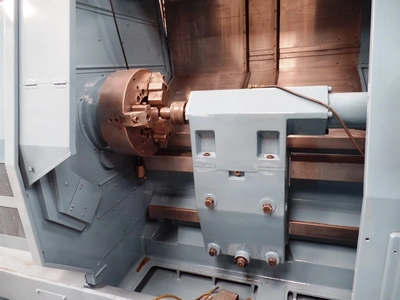

Chuck

18” 3-jaw hydraulic

Maximum
Turning Diameter

21.65”

Distance
Between Centers

40”

Spindle Nose

A2-8

Spindle Hole

3.54”

Spindle
Speeds

10 To 2,500 RPM

Turret
Stations

12

Tailstock
Spindle Diameter

4.72”

Tailstock
Spindle Travel

5.91”

Tailstock
Spindle Taper

No.6 MT

Main Drive
Motor

40 HP

Approximate
Weight

21,000 Lbs.

Equipped With
:


Chip conveyor, Splash/Chip Covers, Coolant System.

Price.

$ 19,500.

FOB
Houston
,
TX
.

Subject to Prior
Sale
.


Note:
Lathe
completely rebuilt in 2003 by Infinity Rebuild Inc., Okuma’s
exclusive rebuilder located in
Charlotte
,
NC
near Okuma
America
’s headquarters.

The lathe is in good condition.
