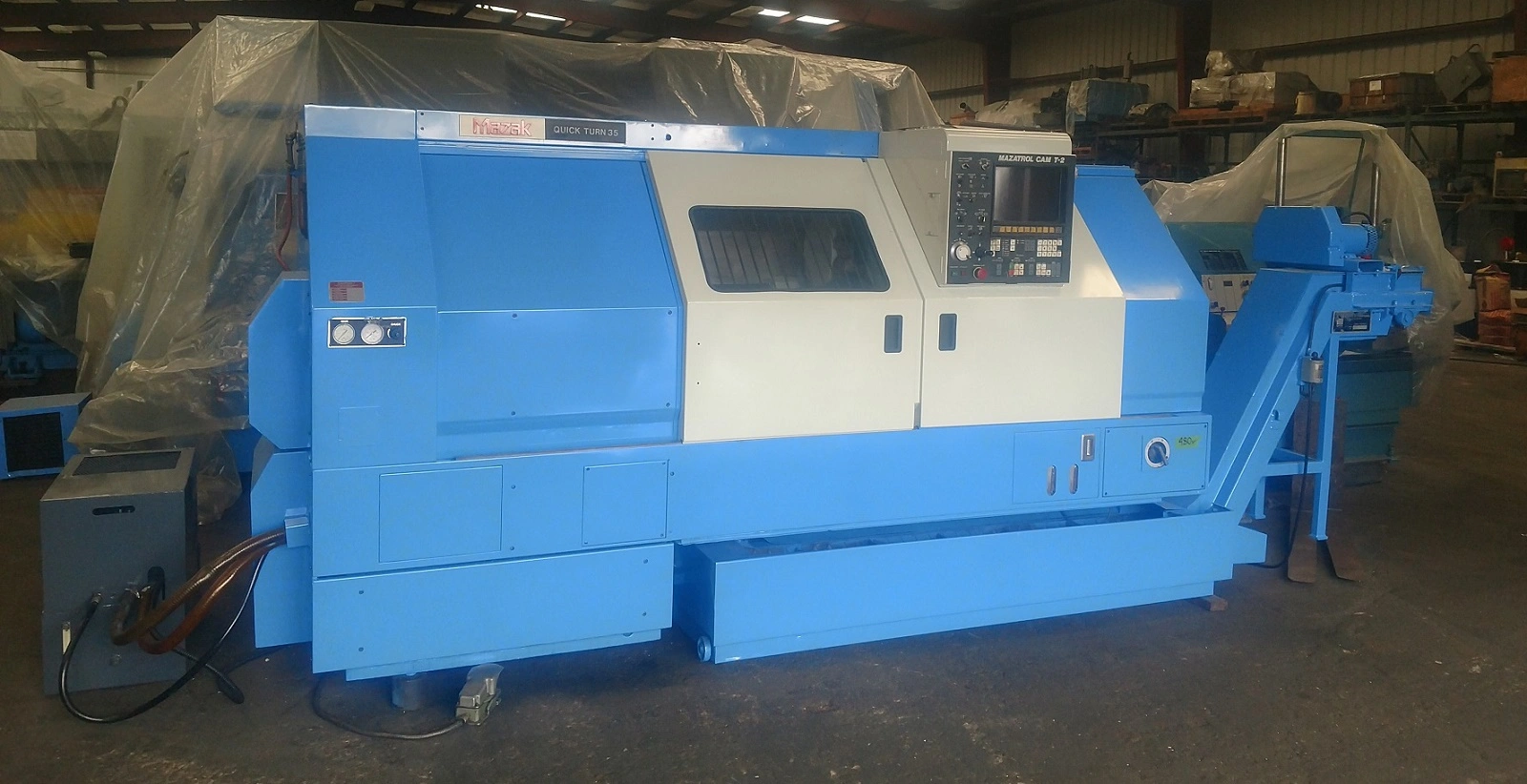

MAZAK QT-35 CNC LATHE

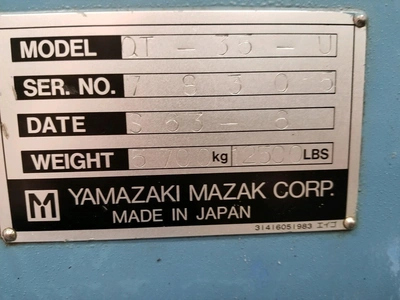

Model
QT-35U
Serial number
78305
Date of mfg.
S-63-6

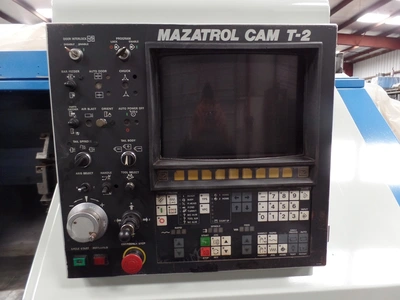

CNC control
Mazatrol Cam T-2
Max. swing
20”
Max. swing over carriage
15.75”
Standard chuck
12” standard, none at preset

We have air chucks which will fit this
lathe
Travel, X & Z
11” & 40”
Max. part between centers
40”
Feed range                                                       1-709 ipm
Rapid traverse rate
472 ipm.

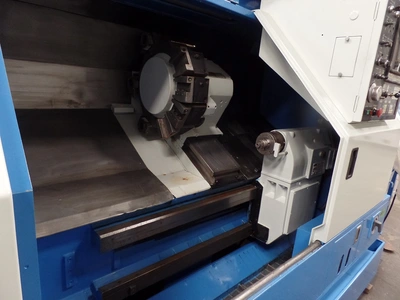

Turret stations
24 stations
Spindle bore
6.5”
Spindle nose
A-11
Spindle speed range
3 ranges, 10-300, 300-750, 750-3000 rpm.
Main motor
30 hp
Tailstock
Yes

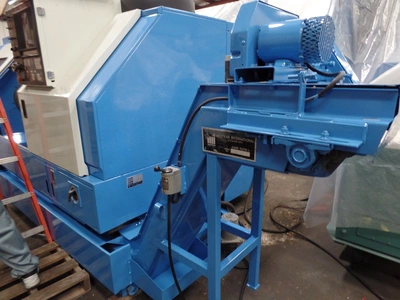

Chip conveyor
Yes
Voltage
440/3/60 at present
Dimensions
140” x 85” x 82”
Machine weight
13,000 lbs.

Price: $ 19,500. FOB Houston, TX.

Comments:
We
have multiple air chucks or hydraulic chucks that will fit this
lathe.

One could be installed at extra cost.

Video link:
https://youtu.be/lBH7X8x-E9Y
