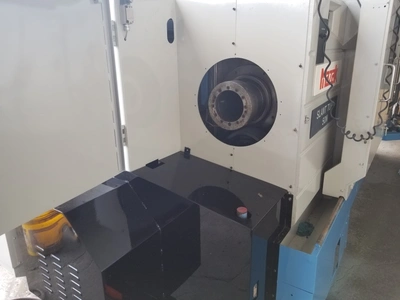

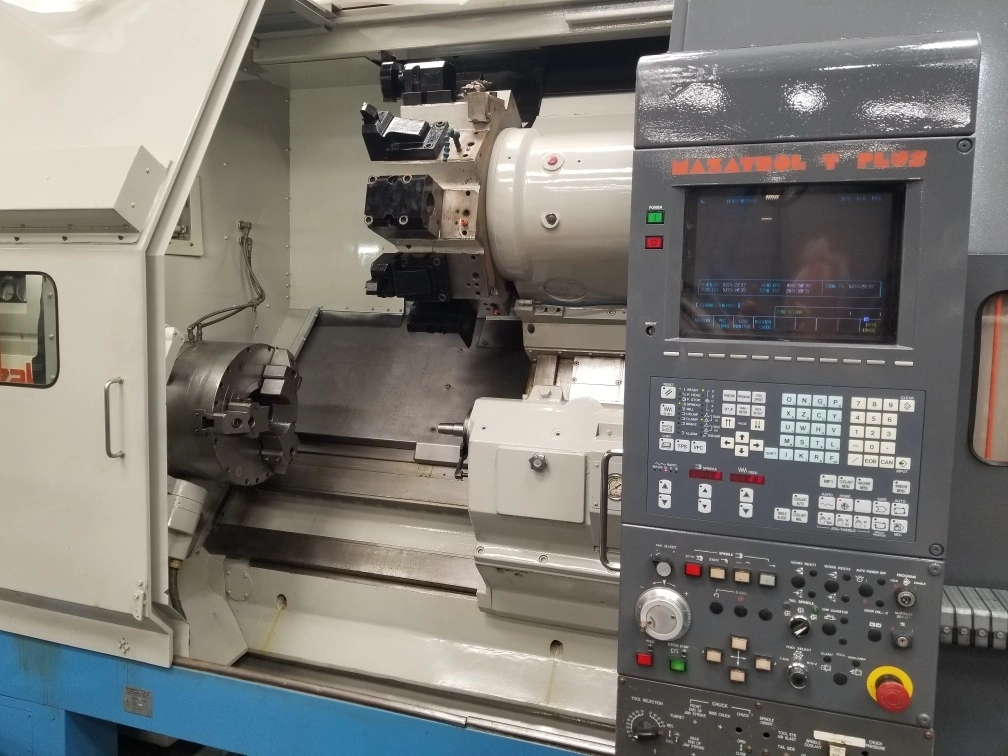

Mazak Slant Turn 50 CNC Lathe

Model
Mazak Slant Turn 50NX-2000U

CNC
Control
Mazatrol T-Plus

Serial
number/YOM
   125859/1996

Max.
Swing Over Bed
   31.69"

Max.
Swing Over Carriage
22.05"

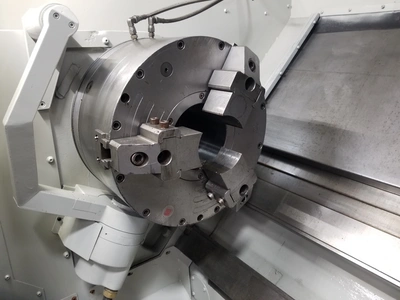

Chuck

SMW EP 460- 6.5” bore


Max.
Cutting Diameter
    25.98"

Distance Between Centers
80”

Tailstock Diameter Taper
5.9"

Max.
Cutting Load
 1763.68 lbs.

Spindle
Speeds, 3 Ranges
2-750 rpm

Spindle
Bore
6.5”


Spindle
Drive Motor
50 hp.

Travel
X-Axis
22.64"

Travel
Z-Axis
 80"

Rapid
Traverse X-Axis
472.4 IPM

Rapid
Traverse Z-Axis
551.18 IPM

Coolant
  Yes

Chip
conveyor
  Yes

Approx.
Weight
26,000 lbs. apx.

Dimensions:  Main body:  8’ 4” W x 19’ L x 9’ H.
 Chip conveyor:  22/42” W x 16’ L x 6’ H.

Equipped with: Tailstock, Chip Conveyor.  Coolant, Way Lube,
Hydraulic System.

Price
:
$ 59,500.
Houston, TX.  Subject to prior sale.

Comments:  The lathe is in good working condition with everything
operating.

MAZAK
ST50N/2000U CNC TURNING CENTER
