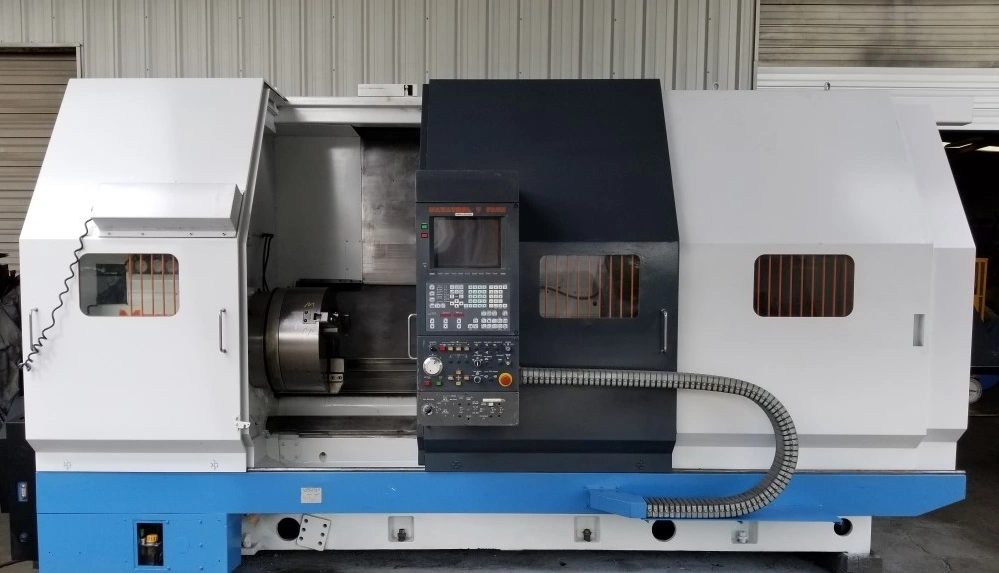

MAZAK ST-50 CNC TURNING CENTER

Model
Mazak Slant Turn 50N

CNC
Control                                     Mazatrol T-Plus

Year of
manufacture
  1998

Max.
Swing Over Bed
   31.69"

Max.
Swing Over Carriage
22.05"

Chuck
SMW
BB-N-500-205-3
extended stroke
air
chuck


(20” O.D x 8” I.D.)



Max.
Cutting Diameter
    25.98"

Distance Between Centers
80”

Tailstock Diameter Taper
5.9"

Max.
Cutting Load
 1763.68 lbs.

Spindle
Speeds, 3 Ranges

2-750 rpm

Spindle
Bore

7.1"

Spindle
Drive Motor
50 hp.

Travel
X-Axis
22.64"

Travel
Z-Axis
 80"

Rapid
Traverse X-Axis
472.4 IPM

Rapid
Traverse Z-Axis
551.18 IPM

Coolant
Yes

Chip
conveyor
Yes

Approx.
Weight
29,260 lbs. plus chuck

Dimensions:


Main body:
8’ 4” W x 19’ L x 9’ H.

Chip
conveyor:

22/42” W x 16’ L x 6’ H

Equipped with: Tailstock, Chip Conveyor.  Coolant, Way Lube,
Hydraulic System.

Price:
$
59,500
.  Houston, TX.  Subject to prior sale.

Comments:  Lathe is in good condition.  It has been
cleaned and painted.  The air chuck has been removed,
disassembled, cleaned, reassembled and tested in both the open and
closed position.

It is
in very good condition, estimated 85% of new.
