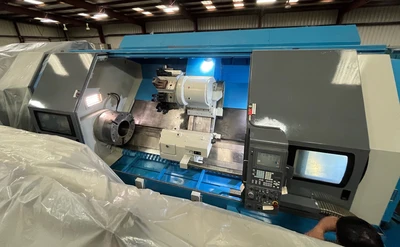

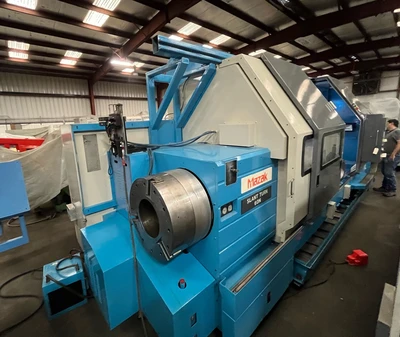

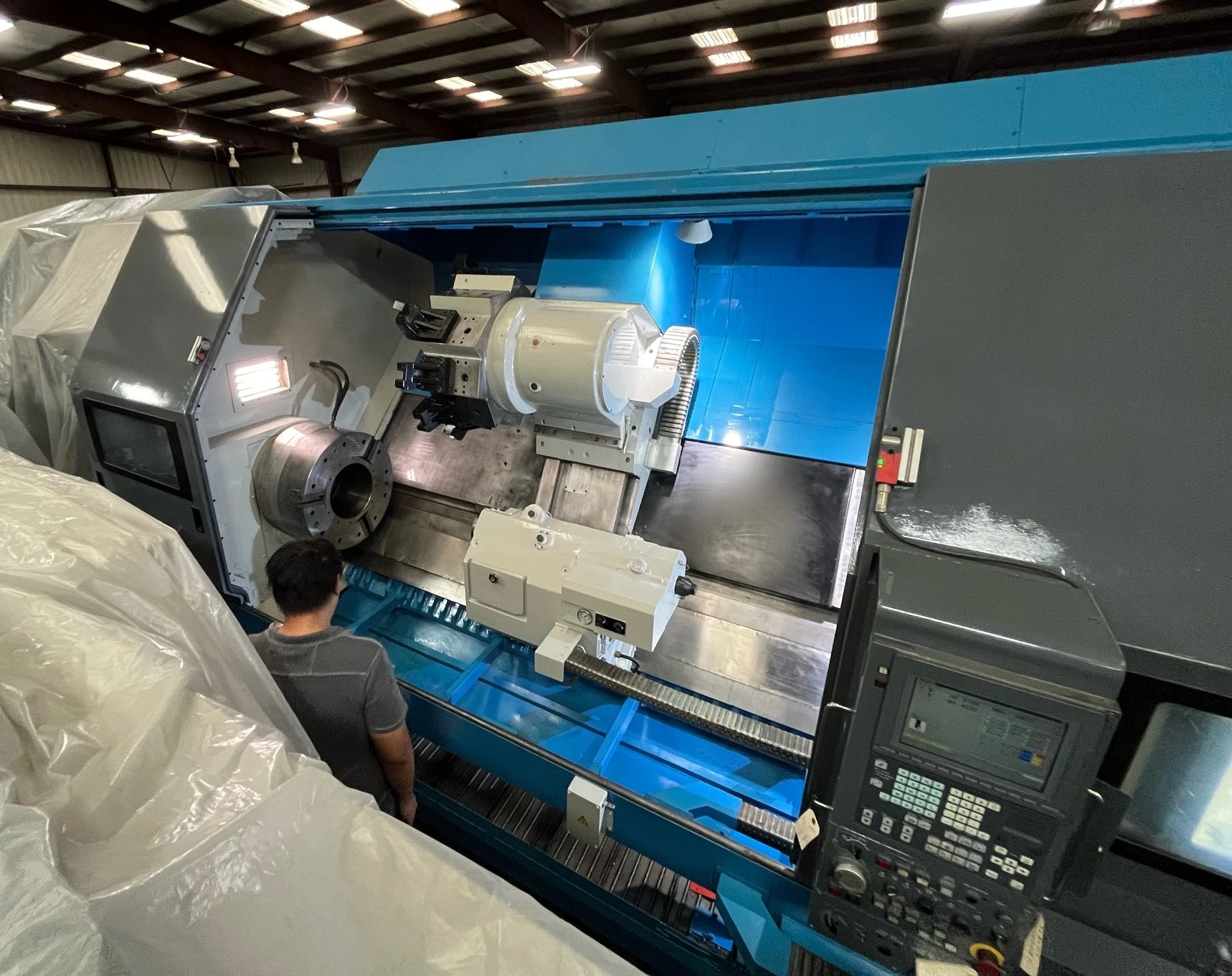

MAZAK SLANT TURN 60N CNC LATHE

Specifications:

Model
Slant Turn 60N

Serial number/YOM
SN: 153958/2002

CNC
Control
Mazatrol 640-T

Swing over bed
42”

Maximum turning diameter
27.96”

Center distance
121”

Main motor
60 kW/80 hp.

Turret tool positions
15 (10 O.D./ 5 I.D.)

Spindle speeds
2-500 rpm

Gear ranges
4

Spindle nose
A-2-15

Spindle bore

10.2”

Chucks

F&R
mounted SMW 630-310 ES (extended stroke) Air Chucks

Spindle torque
6546 lbs.

Rapid traverse rates
(X/Z) 315/400 ipm.

X-axis travel
25.39”

Z-axis travel
118”

Tailstock taper
MT No. 6

Machine weight
41,000 lbs.

Dimensions                                      24’ W (Left to
Right) x 9’ L (Front to Back) x 10’ 6” H

Price:  $ 249,500.  FOB Houston, TX.

Subject to Prior Sale

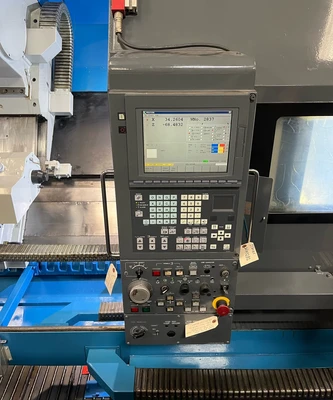

Features:  Mazatrol T-32-2 CNC conversational control w/14”
color CRT, Conversational Programming,

EIA/ISO Input Function, Graphic Display, Chip Conveyor, 45’ Slant
Bed Construction with Hardened

and Ground Box Ways.

MAZAK
SLANT TURN 60N CNC LATHE
