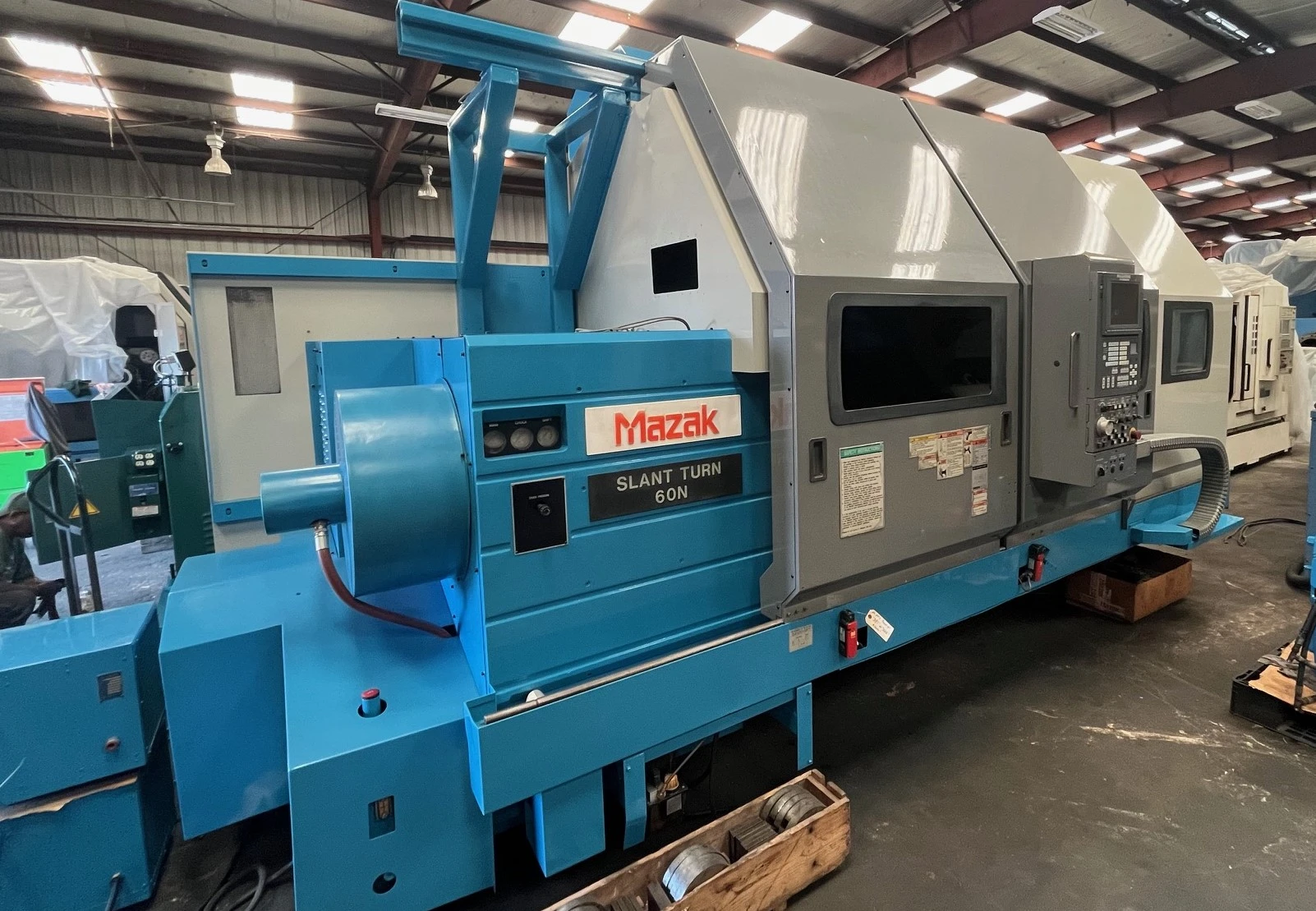

MAZAK SLANT TURN 60N CNC LATHE

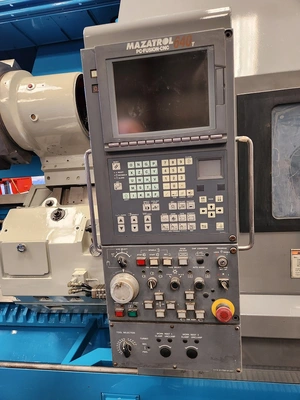

CNC control
Mazatrol Fusion 640T

Serial number
151754

Spindle speed
2--1000 RPM (4-ranges)

Maximum swing
36”

X-axis travel
25.3”

Turning diameter
28”

Z-axis travel:
80”

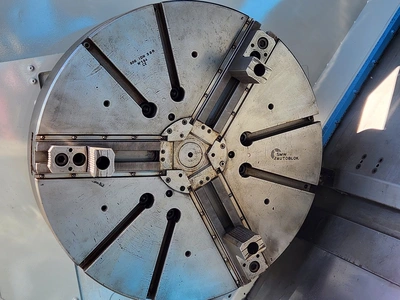

Chuck
32” SMW Autoblok 3-jaw hydraulic chuck

Spindle nose
A-2-11

Spindle bore
6 1/2”

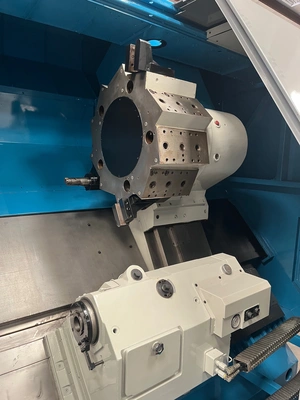

Turret capacity
(15) 10 OD plus 5 ID

Rapid traverse (X/Z
315/394 ipm

Tailstock body travel
70”

Tailstock quill diameter
7”, MT-6

Main drive
60 hp/45 kW

Chip conveyor
Yes

Weight
37,000 lbs.

Dimensions:


Lathe
20’ W x 10 4” H x 9’ 4” W


Chip conveyor
16’ W x 6’ H x 3’ 4” W

Price:  $ 119,500.  FOB Houston, TX.  Subject to
Prior Sale.

Condition:  Good to Very Good.

MAZAK SLANT TURN 60N CNC LATHE
