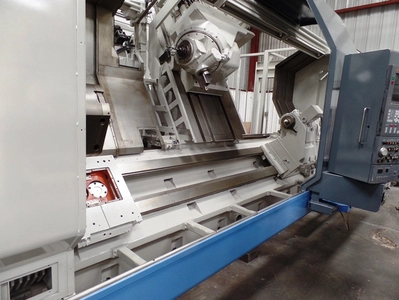

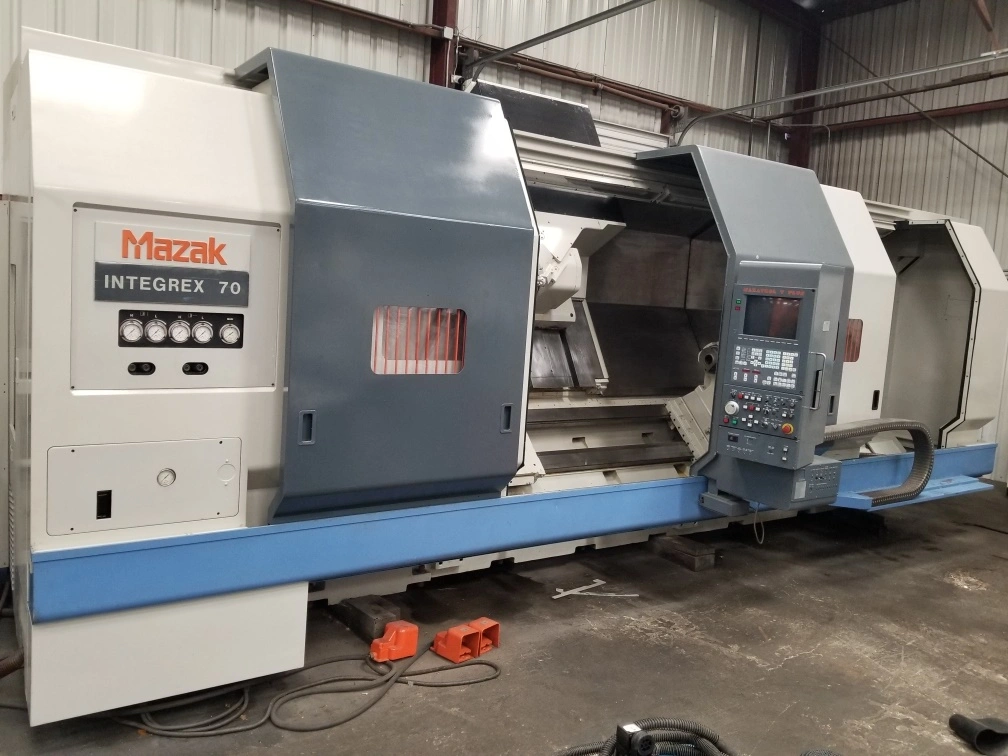

MAZAK INTEGREX 70 CNC LATHE

CNC

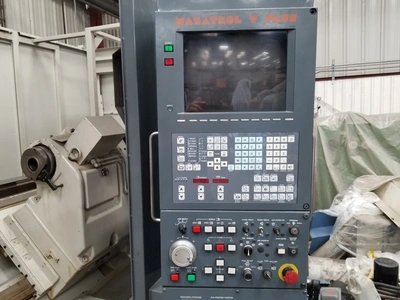

Control

Mazatrol T-Plus Y-axis control

Serial
Number/YOM

162134826
/1998

Chuck

24” 4-Jaw

Chuck

Maximum
Swing Over Bed


36"

Maximum
Swing Over Cross Slide

30.3"

Maximum
Turning Diameter

32"

Maximum
Distance Between Centers

121"

Maximum
Work piece Weight- Chucked

2,200 Lbs.

Maximum
Work piece Weight- Between Centers

4,400 Lbs.

Spindle
Speeds

0 - 750 RPM

Spindle
Bore

6.5"

X-Axis
Travel

27.5"

Z-Axis
Travel

121"

Tool
Stations

30 ATC

Rapid
Traverse Rate:


X- Y-Z Axis

472, 315,590 IPM

Rotary
Tool Spindle Speed

18 - 3,000 RPM


Rotary
Tool Motor

15 HP

Rigid
Tapping

Yes

Coolant

Yes, thru
m
illing
head

Chip
Conveyor

Yes


Spindle
Motor

60 HP

Machine
Weight

68,000 lbs.

Manuals

Yes

Dimensions, Lathe Body

27’ 6” L-R, x 10’ 7” F-B x 9’ H

Dimensions, Chip Conveyor

25’ 6” L x 4’ W x 5’ 5” H

Equipped With:

Hydraulic Tailstock, Milling, Chip Conveyor

Coolant, Splash/Chip Guards, Spindle Chiller, Tooling (16 pieces),
Overload Detection and Transformer.


Dimensions: Spindle Chiller: 30” W x 22” L x 51” H.

Hydraulic Unit: 34” W x 25” L x 29” H.

Transformer: 34” W x 30” L x 29” H.

Box-Tooling, Manuals: 28” W x 35” L x 26” H.


Price:

$ 159,500.

FOB
Houston, TX. Subject to Prior Sale.
