Capacity
Swing Over Bed:
.................................
40.50”
Swing Over Cross Slide
.......................
31.49”
Maximum Turning Diameter:
...............
37”
Maximum Turning Length
....................... 78
”
Distance between Centers
......................
78
”
Headstock
Spindle Nose
.....................................
A2-20
Through Spindle Hole Diameter
..........
15
” (D)
Spindle Speeds
....................
500 rpm
Spindle Motor
.......................
60 HP
Transmission
............
D
model: 2-speed Gear
Maximum torque
.......
C model: 9,000 NM@60 rpm
Turret
Turret Tools
.......... 12
Station
Transmission
.............
Bi-directional servo indexing
Index Time
................
0.35 sec
Clamping way
............
Hydraulic clamp with curvic coupling
Clamping pressure
.....
15,188
kgf
OD Shank
..................
1.25”
Diameter of Boring Bar
.2.5".
STD
/ 3.0” opt
Travel
X Axis
........................
19.29
”
Z Axis
........................
78
”
Feed motor X Z Axis
..........
9kw
X Z Axis Rapid Feed rate
....
394/472ipm
Tailstock
Control
............
Programmable position / quill
Travel (w/o Steady Rest)
..........
78
”
Quill Travel
..............................
3.94”
Quill Diameter
.........................
7.87
Quill Taper
..............................
MT6
Rotary Quill
General Information
Slide way Slant
.............
45
˚
Coolant
Pump
................
1.6HP/ 90 PSI
Machine Dimensions w/ conveyor (LxWxH)
.....................
300
“ x 117“ x 99.6“
Machine Weight
...........
47
,500 lbs
Investment
Cost
Model:

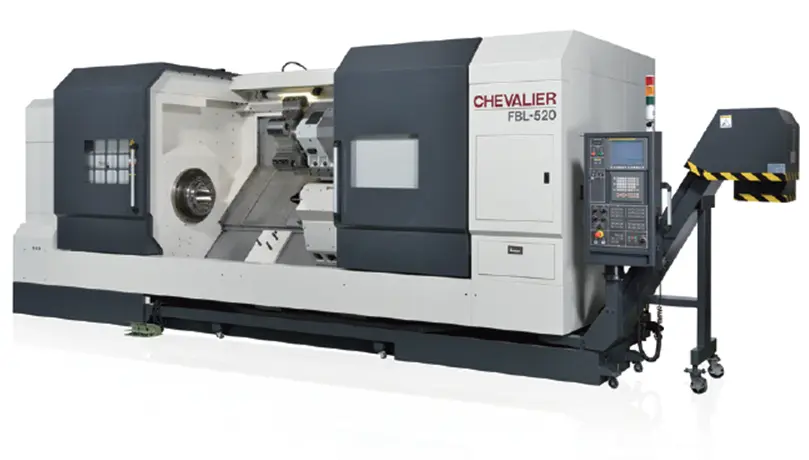

FBL-520D
Price: $449,500.00 IN Stock Houston,TX
