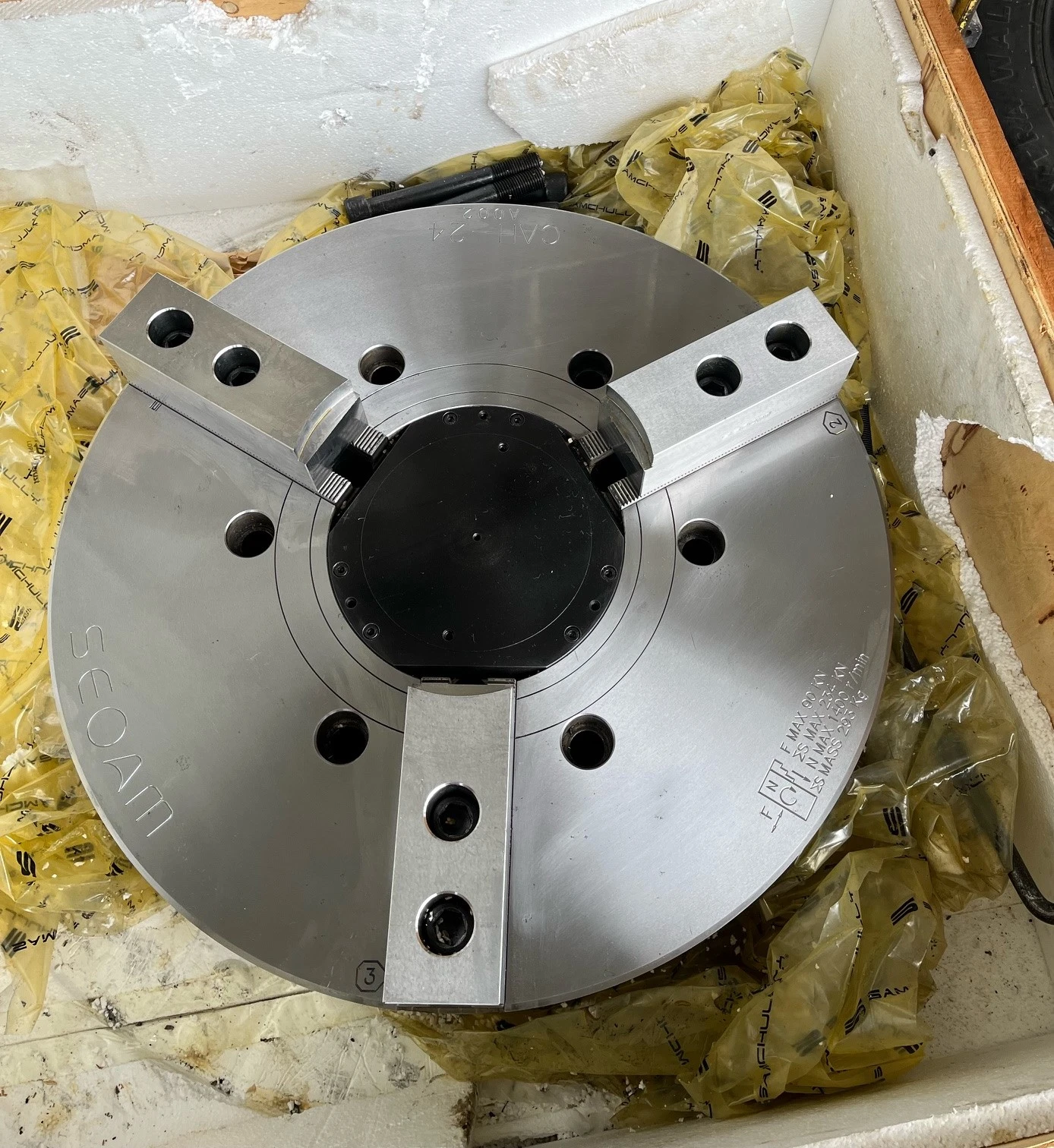

SEOAM 24” 3-JAW HYDRAULIC CHUCK

Model
CAH-24 Big Bore Power Chuck

Serial number
A002

Spindle nose
A-2-15

Thru hole
diameter
165 mm

Jaw stroke
10.4 mm,

Plunger stroke
23 mm

Maximum
gripping diameter
610 mm

Minimum
gripping diameter
110 mm

Maximum input
force
90 KN, (9177 kgf)

Maximum static
gripping force        234 KN,
(23861 kgf)

Maximum rpm
1400 rpm

Weight
293 kg

Moment of
inertia (GD2)
651.2N, (66.4)

Matching
cylinder
YSH-15

Price: $ 7,950.
FOB Houston, TX. Subject to Prior Sale.

Condition: NEW.
New cost $ 16,000 apx. Plus freight.

Manufacturer:
SEOAM, Gwangju, South Korea. Most of these chucks

come in on
Samsung CNC lathes as original equipment.

SEOAM 24” 3-JAW
HYDRAULIC CHUCK
