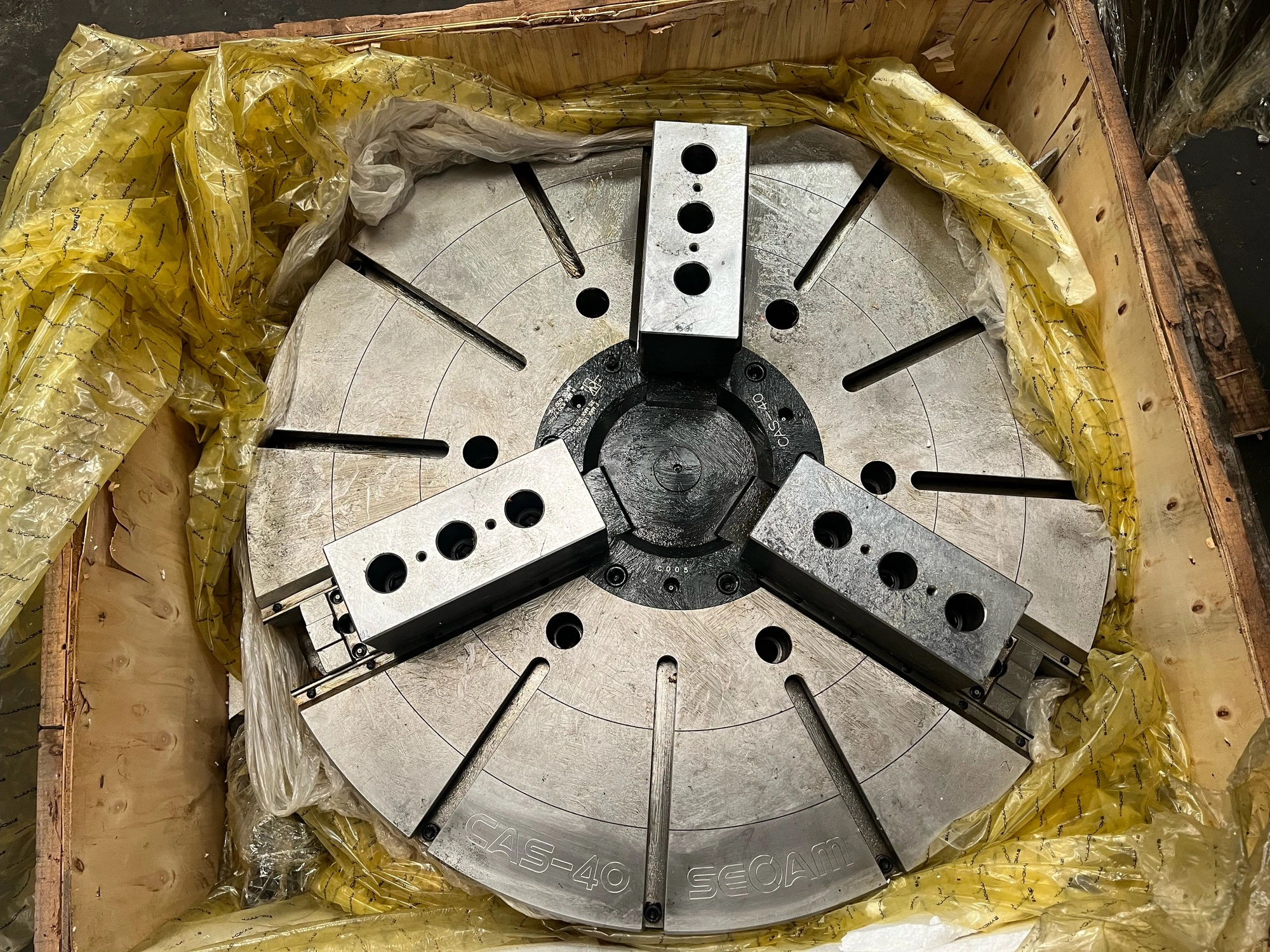

SEOAM 40” 3-JAW HYDRAULIC CHUCK

Model
CAS-40 (Closed face)

Serial number
C005

Spindle nose
Flat back

Jaw stroke
30 mm,

Plunger stroke
57 mm

Maximum
gripping diameter
1000 mm

Minimum
gripping diameter
330 mm

Maximum input
force
161 KN, (16450 kgf)

Maximum static
gripping force        351 KN,
(36836 kgf)

Maximum rpm
630 rpm

Weight
670 kg

Moment of
inertia (GD2)
68N, (7.03)

Matching
cylinder
YAST-245

Price: $ 18,000. FOB Houston, TX.

Subject to
Prior Sale.

Condition: NEW.
New cost $ 27,500 plus freight.

Manufacturer:
SEOAM, Gwangju, South Korea.

U.S.
Distributor: Kenyeriengineering.com Wisconsin.

SEOAM 40”
3-JAW HYDRAULIC CHUCK
