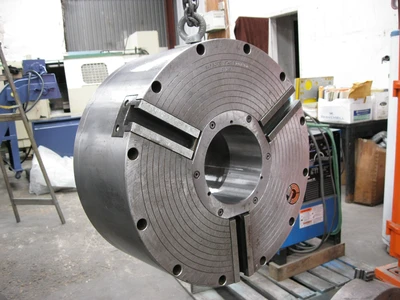

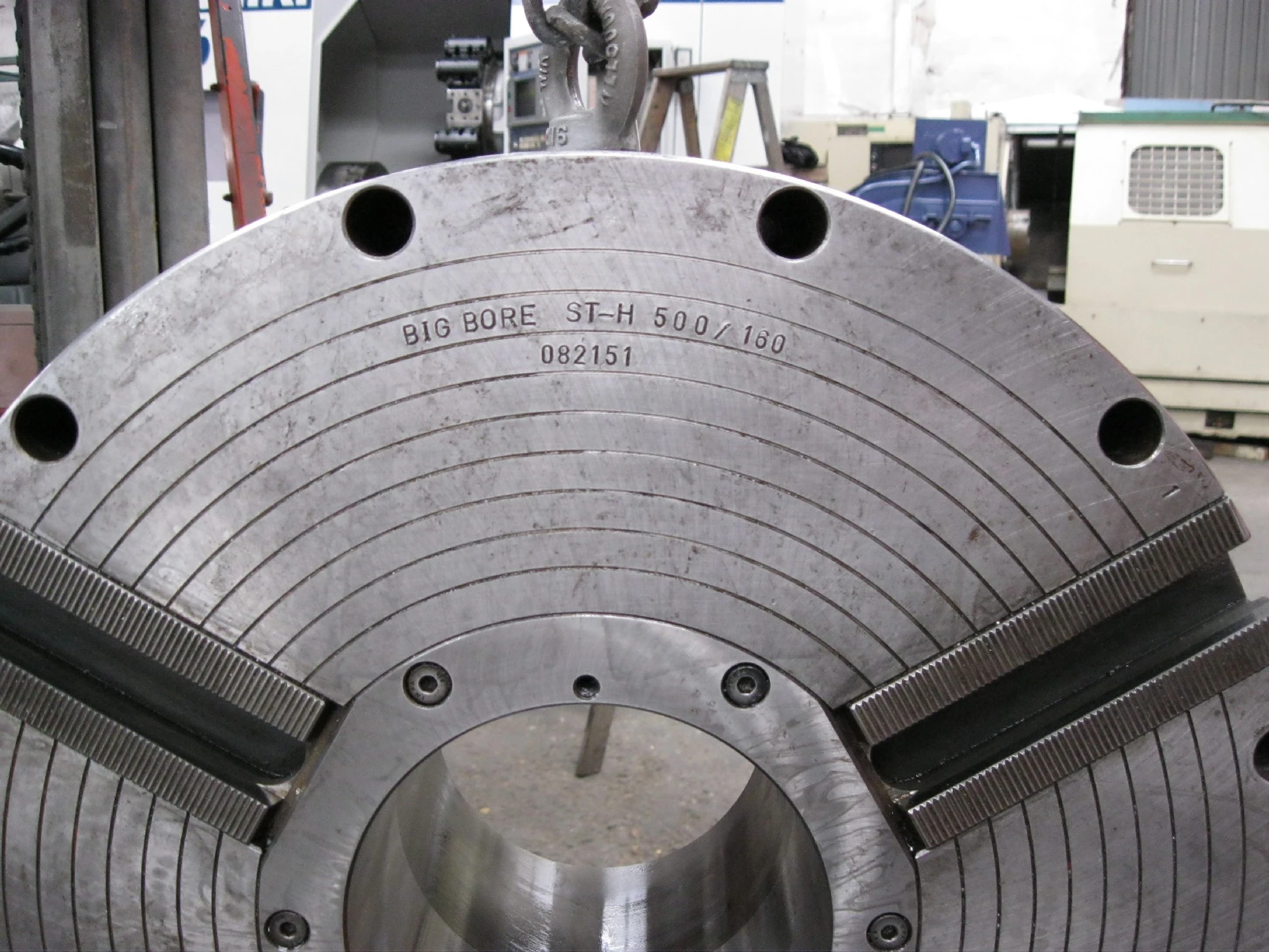

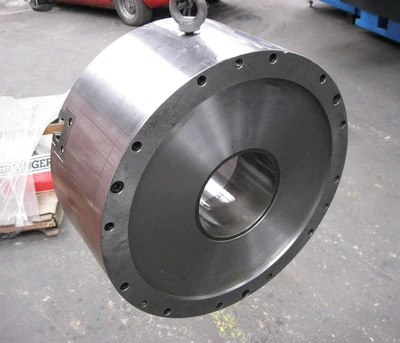

SMW STATIONARY MOUNT BB 500-160 AIR CHUCK

     SMW Air Chucks

     Model STA =
Stationary mount

     500 = 20" O.D.

     160 = 6.3" I.D.

Jaw Serration
3/32 x 90 deg.

Distributor Ring diam
22.4”

Chuck Length
8.7”

Chuck Bore
6.3”

Operating Pressure
30-120 psi

Clamping stroke/jaw
0.335”

Gripping force @85psi
40400 lbs. of force

Condition:
Excellent. New
Surplus, never used.

Availability:
Immediate

Price: $ 6,000. FOB Houston,
SUBJECT TO PRIOR SALE

NOTE:
This is a
stationary mount ONLY air chuck suitable for use

on a machining center, gun drill, deep
hole boring machine, etc. This

chuck cannot be made into a rotating
chuck.
