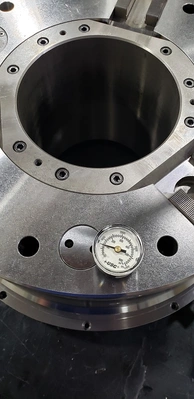

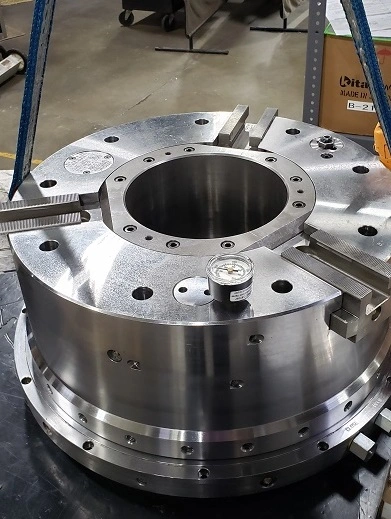

KITAGAWA UPR450U EXTENDED STROKE AIR CHUCK

Model
UPR-450U

Chuck Diameter
17.9”, 455mm

Thru hole
7.2”, 185mm

Spindle nose
flat back

Stroke per jaw
1”, 26mm

Clamping stroke per jaw
0.55”, 14mm

Jaw serrations
3/32 x 90’

Maximum rpm
1,300 rpm

Maximum clamping force
100 kN, (22,400 lbs.)

Weight without top jaw tooling
429 lbs.

Included with the chuck: Air
distributor ring.

Price each:  $25,500. FOB
Houston, TX.

Condition:  Like NEW.

Comments:  This chuck was on
short term loan until a special-order chuck arrived.
