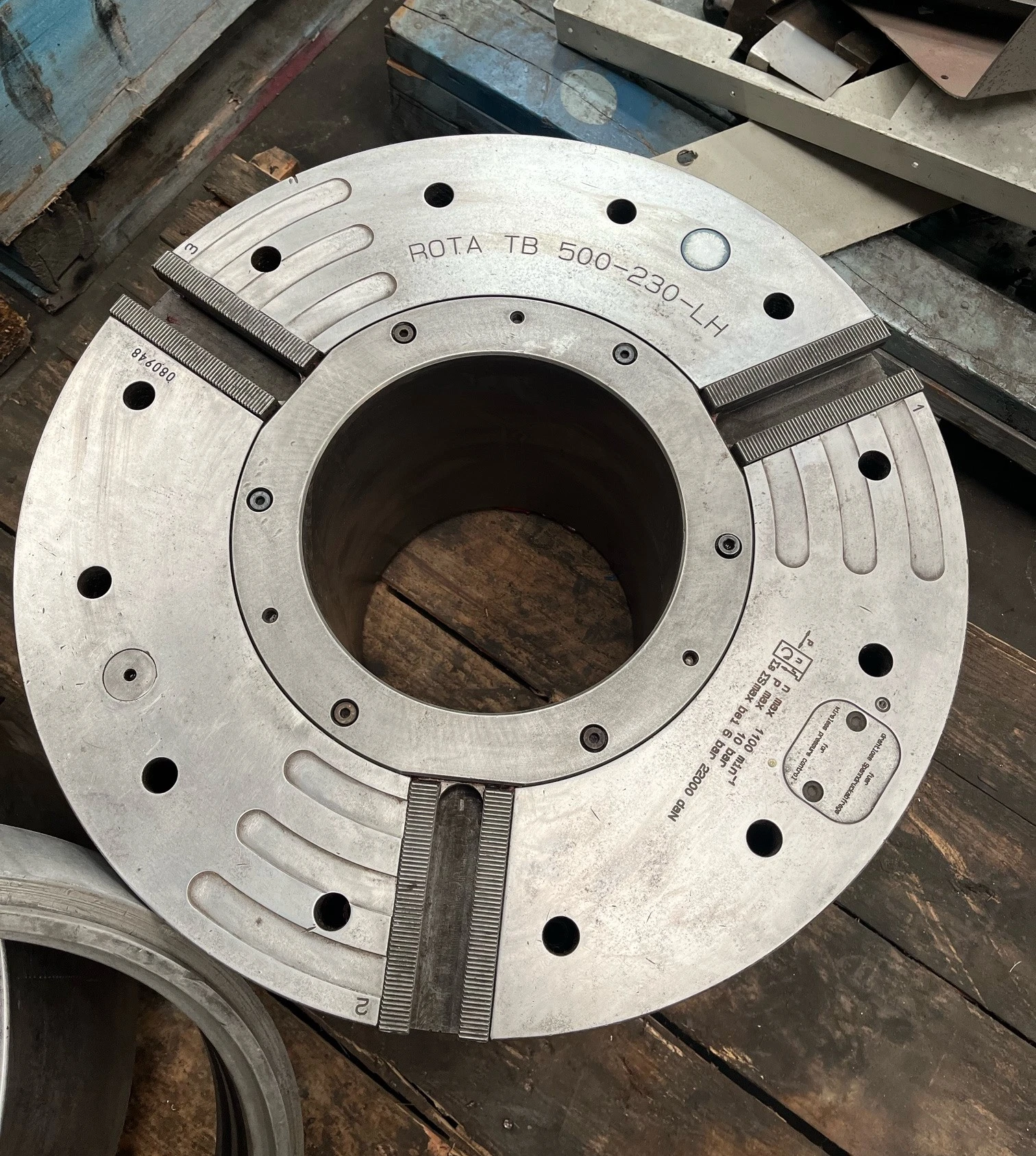

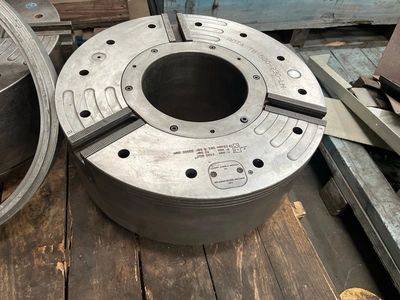

SCHUNK ROTA TB 500-230 LH EXTENDED STROKE AIR CHUCK

Specifications:

Serial number
080948

Chuck diameter
500 mm (19.68”)

Thru hole
230 mm (9.06 ”)

Spindle nose
flat back

Stroke per jaw
25.4mm. (1”)

Fast stroke per jaw
16.9mm. (2/3”)

Clamping stroke per
jaw
8.6mm. (1/3”)

Jaw serrations
3/32 x 90’

Maximum
rpm                                 1,300 rpm

Max gripping force at
6 bar             42,714 lbs.

Weight without top jaw
tooling        724 lbs.

Price each:  $18,500.
FOB Houston, TX.

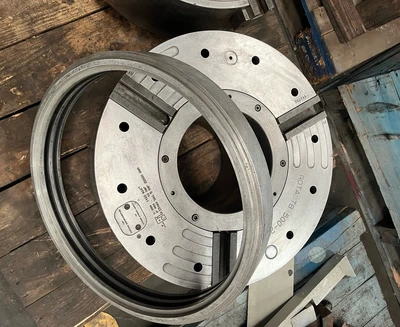

Included with the
chuck: Air distributor ring.

Condition: Good.  The
chuck has been tested overnight in both the open and closed

position to assure it
holds pressure.

Delivery:  Stock, our
warehouse.

Mounting package:

--We can also supply a
full wrap around distributor ring mounting bracket (DRMB)

for a front mounted
chuck or stand-off brackets for a rear mounted chuck.  We also

supply adapter plates
and can do the complete installation if required.

SCHUNK ROTA TB
500-230 LH EXTENDED STROKE AIR CHUCK
