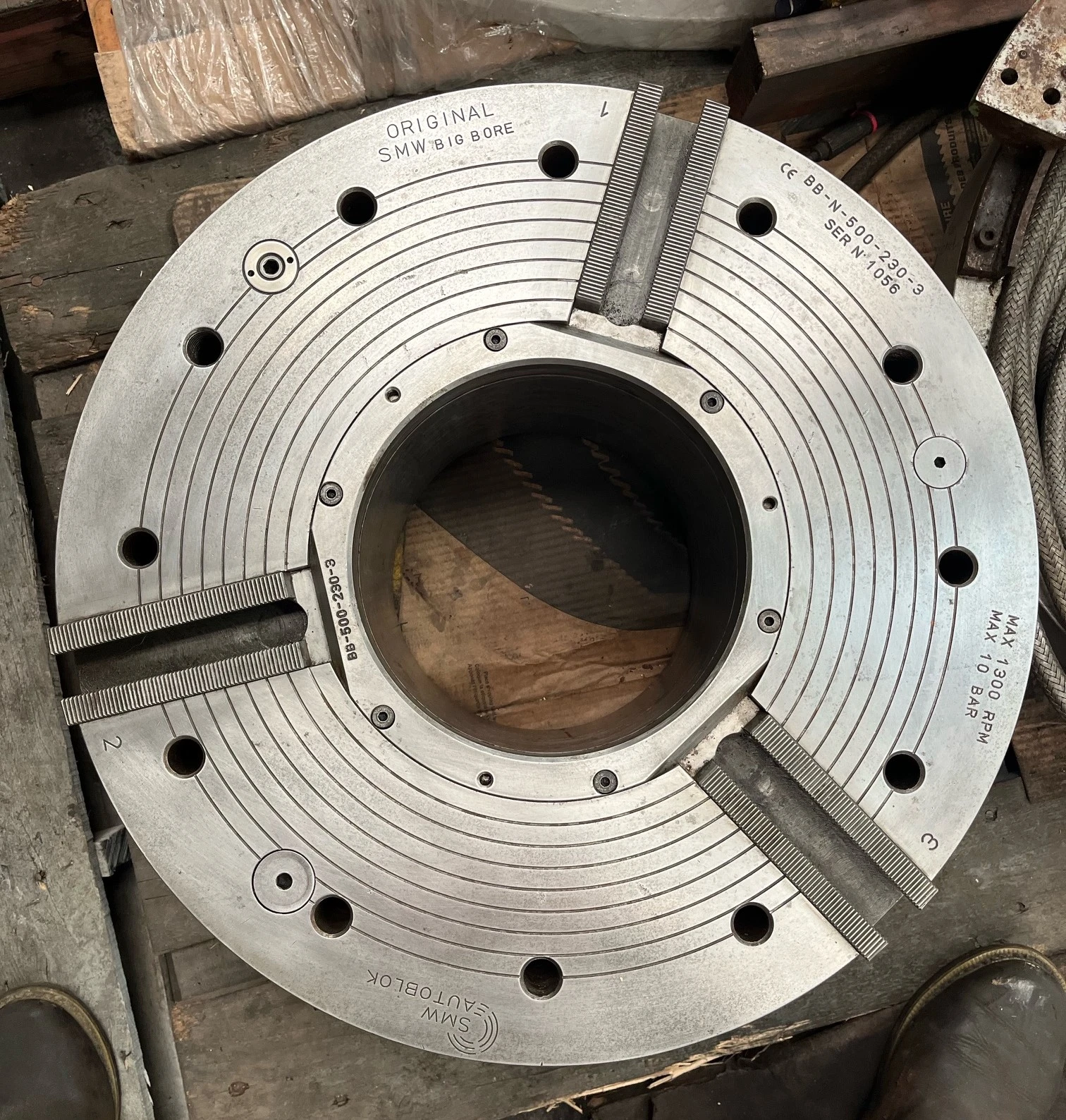

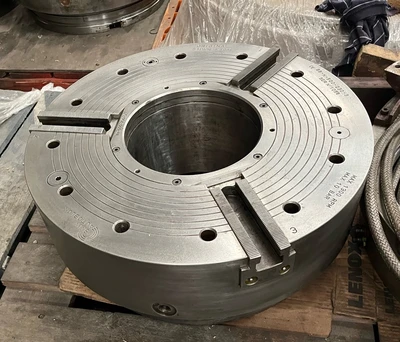

SMW BB N 500-230-3 STANDARD STANDAR STROKE AIR CHUCK

Specifications:

Serial number
1056

Chuck diameter
500 mm (19.68”)

Thru hole
230 mm (9.06 ”)

Spindle nose
flat back

Stroke per jaw
0.33”

Jaw serrations
3/32 x 90’

Maximum
rpm                                  1,300 rpm

Max gripping force at
6 bar              42,714 lbs.

Weight without top jaw
tooling         970 lbs.

Price each:  $18,500
.
FOB Houston, TX.

Included with the
chuck: Air distributor ring.

Condition: Good.  .  The chuck has been tested overnight in both the
open and closed

position to assure it
holds pressure.

Delivery:  Stock, our
warehouse.

Mounting package:

--We can also supply a
full wrap around distributor ring mounting bracket (DRMB)

for a front mounted
chuck or stand-off brackets for a rear mounted chuck.  We also

supply adapter plates
and can do the complete installation if required.
