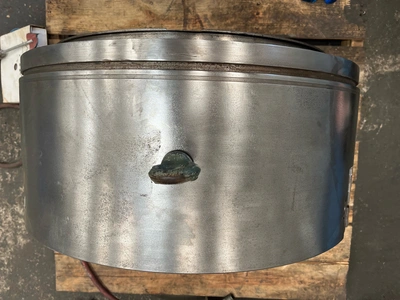

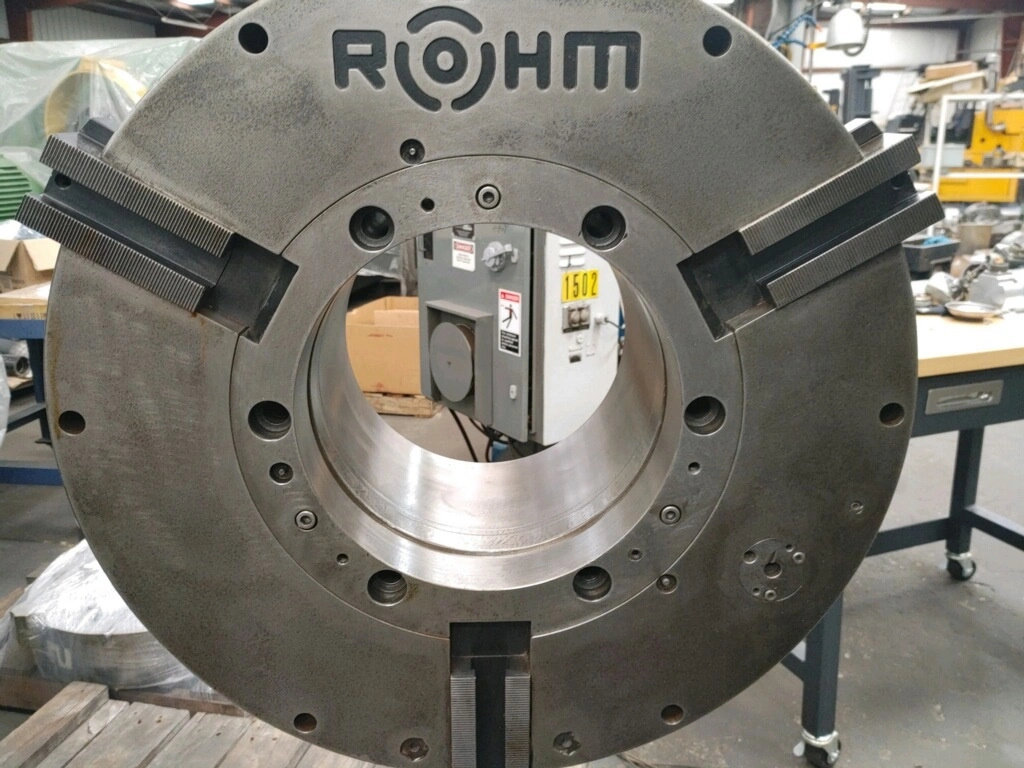

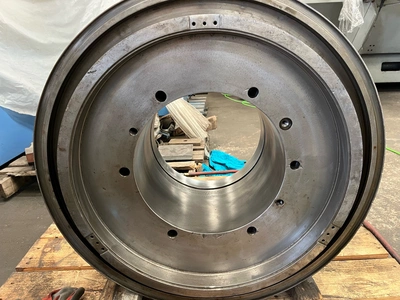

ROHM LVE 630-325 EXTENDED STROKE AIR CHUCK

Model
ROHM LVE 630-3-325 ES

Serial
number
None

Diameter, OD
26.75”

Thru hole,
ID
12.8”

Spindle nose
Flat back

Stroke per
jaw
1.00” (25.4 mm)

Clamping
stroke per jaw
0.33” (8.5 mm)

Jaw
serrations
3/32 x 90’

Maximum rpm
900 rpm

Maximum
clamping force
280.0 kN at 6 bar or 90-120 lbs. shop air)

Weight
without top jaw tooling       1,100
lbs.

Included

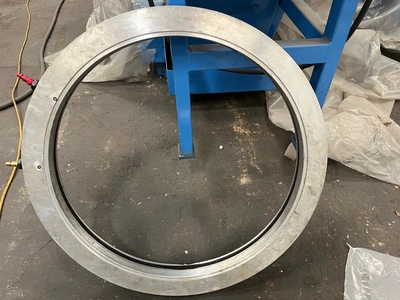

with the chuck: Air distributor ring.

Price:  $ 24,500.
FOB Houston,
TX.

Condition:
Good. New cost about $ 56,000.  The chuck has been
disassembled, cleaned,

and
re-assembled, tested in both the open and closed position.
Sold with a 30-day return

privilege.

ROHM LVE 630-325 EXTENDED STROKE AIR CHUCK
