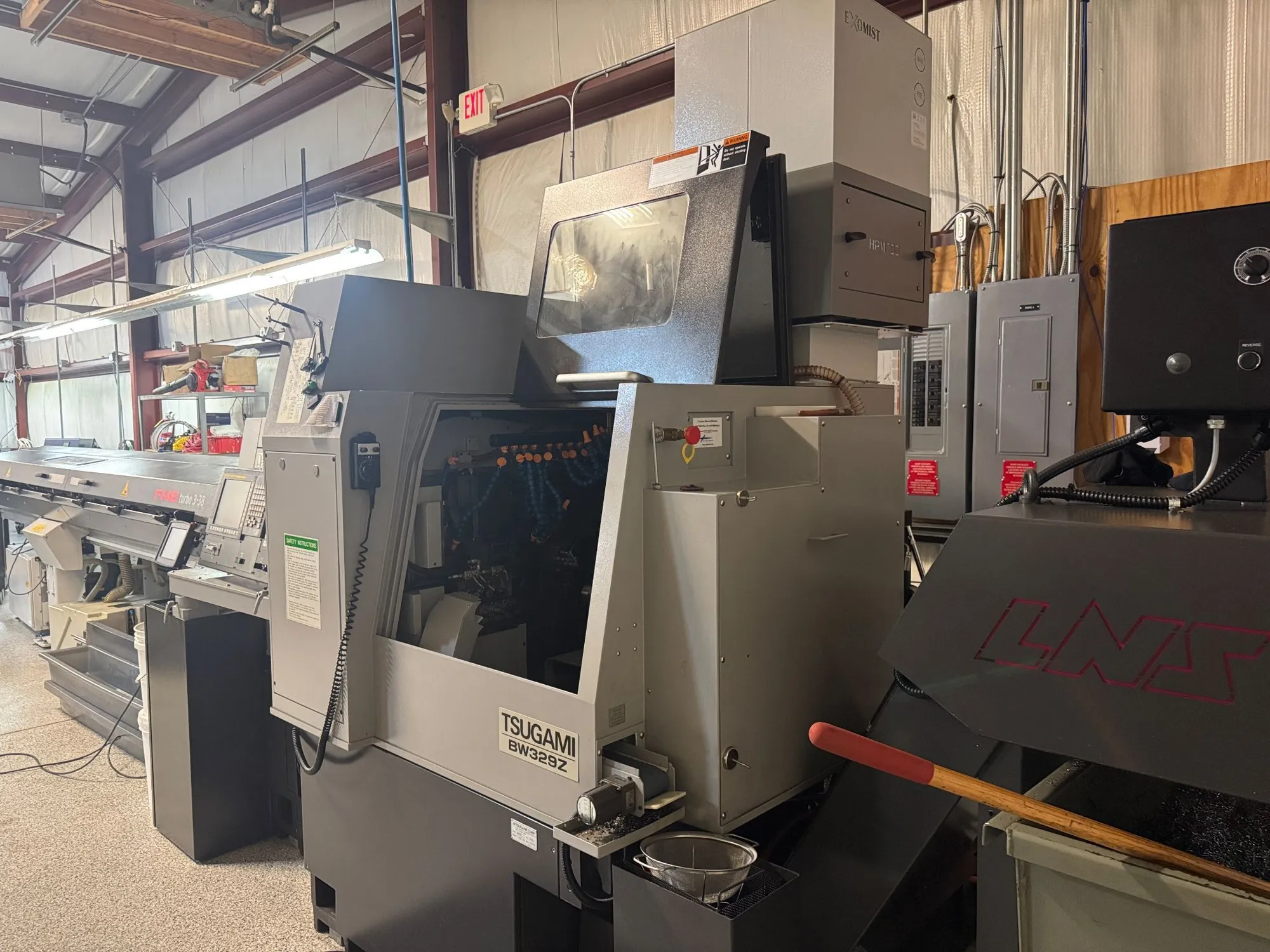

USED 2022 TSUGAMI BW329Z
Or as low as $633.32 USD/month over 60 months
Overview
Description
2022 TSUGAMI BW329Z 9-Axis CNC Swiss Lathe offers precision with C-axis indexing, live back tools, and a bar capacity of 32mm. Features include high-pressure coolant, FireTrace system, and LNS Turbo chip conveyor. Ready for demanding operations.
Specifications
| Capacity | 1.25" | 31.75 mm |
|---|---|---|
| Power | 7.5 kW | 10.1 hp |
| RPM | 8,000 RPM | 8,000 RPM |
| # Axis | 11 | 11 |
| Swiss, Chucker or Convertible? | Convertible | Convertible |
| Main Spindle Indexing | Full C | Full C |
| Sub Spindle Indexing | Full C | Full C |
| Live Back Working Tools? | Yes | Yes |
| Control | CNC (CNC FANUC 31I-B) | CNC (CNC FANUC 31I-B) |
| Dimensions | 104.5″ x 64.5″ x 79″ | 104.5″ x 64.5″ x 79″ |
| Weight | 11,460 lbs | 11,460 lbs |
Maximum Bar Stock: 32mm / 1.26″
Number Axes: 9
Max Headstock Stroke w/ Guide Bushing: 330mm / 12.99″
Max Headstock Stroke w/o Guide Bushing: 70mm / 2.76″
Number Tool Positions (std/max): 29 / 38
Number Live Tool Positions (std/max): 11 / 26
Main Spindle Speed: 200 – 8,000 RPM
Sub Spindle Speed: 200 – 8,000 RPM
Main Spindle Motor: 3.7 / 5.5 kW
Approx. Weight: 11,460 lbs. / 5,200 kg
Approx. Dimensions: 104.5″ x 64.5″ x 79″ W/out barfeed
Equipped With
FMB Turbo 338 Barfeeder, Full 12' with axial shift
FireTrace Fire Suppression System
Plumbed for 8 Port High Pressure Coolant System
Oscillation Cutting )X1/Z1, X2/Z2/X3/Z3)
Two Sets of Collets and Guide Bushings
V2-HO8 High Pressure 2,000 PSI Oil Pump
TriMist 850 Mist Collection System
LNS Turbo Micro Hinge Chip Conveyor, 500 Micron
Red/Yellow/Green Patrol Light System
Chuckit Kit
TOOLING AS PER PHOTOS
