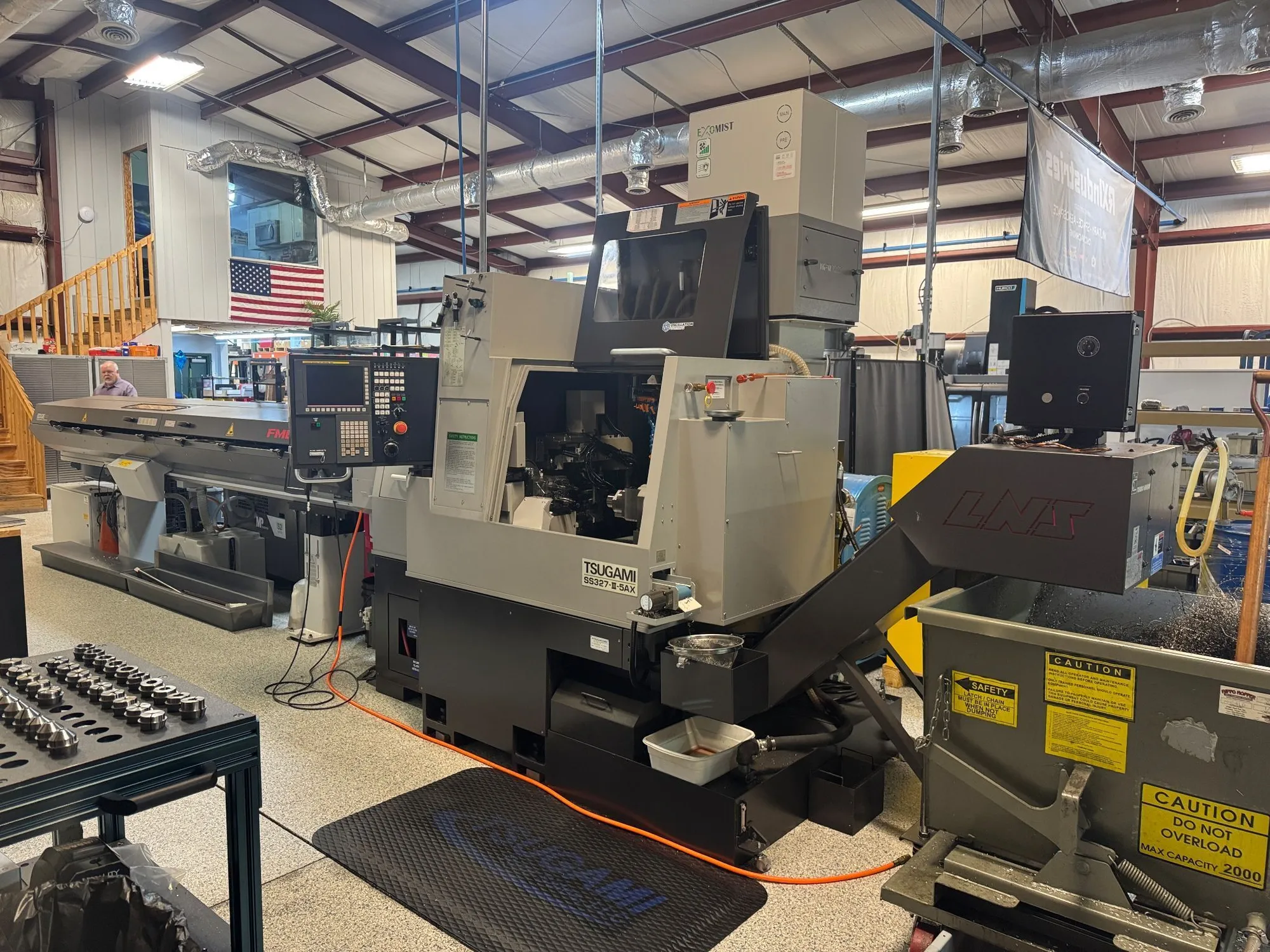

USED 2022 TSUGAMI SS327-III-5AX
Or as low as $586.32 USD/month over 60 months
Overview
Description
For sale: 2022 TSUGAMI SS327-III-5AX CNC Swiss Lathe. Features 1.26" bar capacity, 8,000 RPM main & back spindles, FANUC 31i-B5 control, and MP Systems 2000 PSI coolant. Includes barloader, parts catcher, chip conveyor, and more. Excellent for precision work.
Specifications
| Capacity | 1.25" | 31.75 mm |
|---|---|---|
| Power | 7.5 hp | 5.6 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # Axis | 9 | 9 |
| Swiss, Chucker or Convertible? | Convertible | Convertible |
| Main Spindle Indexing | Full C | Full C |
| Sub Spindle Indexing | Full C | Full C |
| Live Back Working Tools? | Yes | Yes |
| Control | CNC (FANUC 31I-B5 CNC MAPPS) | CNC (FANUC 31I-B5 CNC MAPPS) |
BAR CAPACITY 1.26"
MAX MACHINING LENGTH 12.99"
MAX DRILLING DIAMETER 0.47"
MAIN SPINDLE MOTOR 7.4 hp
MAIN SPINDLE INDEXING FULL C-AXIS
MAIN SPINDLE SPEED 8,000 RPM
BACK SPINDLE MOTOR 7.4 hp
BACK SPINDLE INDEXING FULL C-AXIS
BACK SPINDLE SPEED 8,000 RPM
LIVE TOOL SPEEDS 6,000 RPM
CONTROLLABLE AXES 9
Equipped With
FANUC 31i-B5 CNC CONTROL (SIMULTANEOUS ALL AXES CONTROL)
FMB TURBO 3-38 BARLOADER
X1, Z1, Y1, X2, Y2, Z2, C1, C2
MODULAR B-AXIS TOOL SPINDLE (7,000 RPM SPINDLE)
OSCILATION CUTTING ON X1/Z1 AND X2/Z2
BACK CROSS TOOL SPINDLE INCLUDED
DEEP HOLE DRILL HOLDER BESIDE BACK SPINDLE (T91 & T92)
MP SYSTEMS 2000 PSI COOLANT SYSTEM (8-PORT)
FIRETRACE SYSTEM
CHIP CONVEYOR (LNS)
PARTS CATCHER
LONG PARTS EJECTOR
TRANSFORMER
SLIDING HEADSTOCK W/DIRECT DRIVE GUIDE BUSHING
CONVERTIBLE TO CHUCKER MODE W/ OPTIONAL CHUCKER KIT
RIGID CAST IRON FRAME
