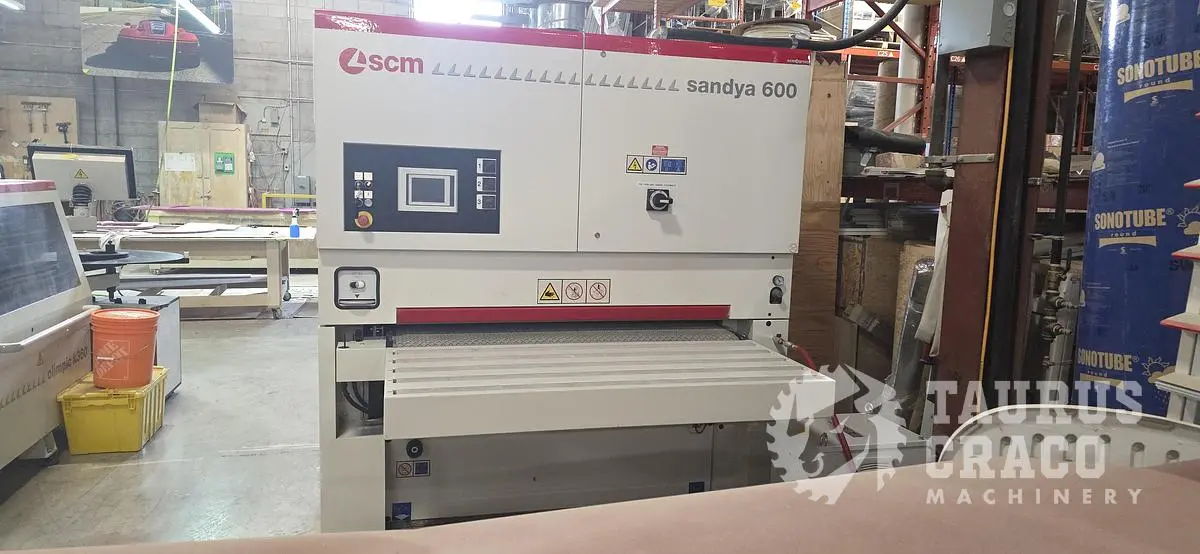

USED 2017 SCM SANDYA S600 – 135 RRCS WIDE BELT SANDER (3‑HEAD)

Manufacturer: SCM Group (Italy)
Model: Sandya / S600 135 RRCS
Sanding Configuration: Three‑Head (RRCS)
Year of Manufacture: 2017
Condition: Used – Great Condition
Status: Fully operational, recently serviced by an authorized SCM technician
Usage: Very low hours

The SCM Sandya 600 – 135 RRCS is a high‑performance industrial three‑head wide belt sander designed for both calibrating and fine finishing of solid wood, veneered, painted, and lacquered panels. The RRCS configuration provides exceptional flexibility by combining aggressive stock removal with precision finishing in a single pass.

This specific unit is a 2017 build, in excellent working condition, and has been recently serviced by an SCM technician, ensuring it is ready for immediate production. The machine shows very low operating hours, making it an outstanding value compared to new replacement cost.

Working Capacity
Working width: 1350 mm (53")
Minimum / Maximum working thickness: 4 mm – 170 mm
Sanding belt dimensions: 1370 mm × 2150 mm
Sanding Groups (RRCS Configuration)
Three sanding heads, configured for:
Calibrating
Intermediate sanding
Final finishing
Large‑diameter sanding rollers designed for stability and uniform pressure
Electronic “MESAR” sectional pad, providing excellent surface conformity and finishing quality across varying panel thicknesses
Drive & Power
Motor power per sanding group: 11 kW (15 HP) each
Designed for consistent torque and reliable performance in production environments
Feed System
Variable feed belt speed: 4.5 – 9.0 m/min
Diamond‑profile feed belt for superior panel traction and stability
Automatic feed‑belt centering and tensioning system
Control & Automation
SCM Logic electronic control system
Program storage for repeatable sanding setups
Digital ammeter for real‑time motor load monitoring
Automatic worktable positioning with electronic thickness detection
Voltage: 600V
Phase requirements: 3‑phase
Frequency: 60 Hz
Short‑circuit rating: 5 kA
Manufactured by: SCM Group S.p.A., Rimini, Italy
Solid wood calibrating and sanding
Veneered panels
Painted and lacquered surfaces
Furniture components
Cabinet panels and millwork
High‑quality finish sanding with consistent results

The RRCS version is particularly well suited to shops that want to increase throughput while maintaining excellent surface finish, especially when processing larger panels or multiple material types.
