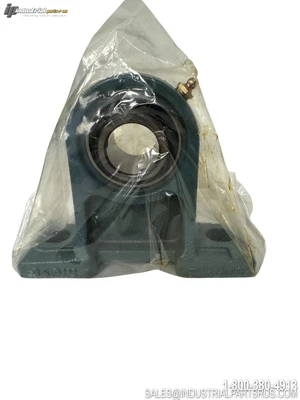

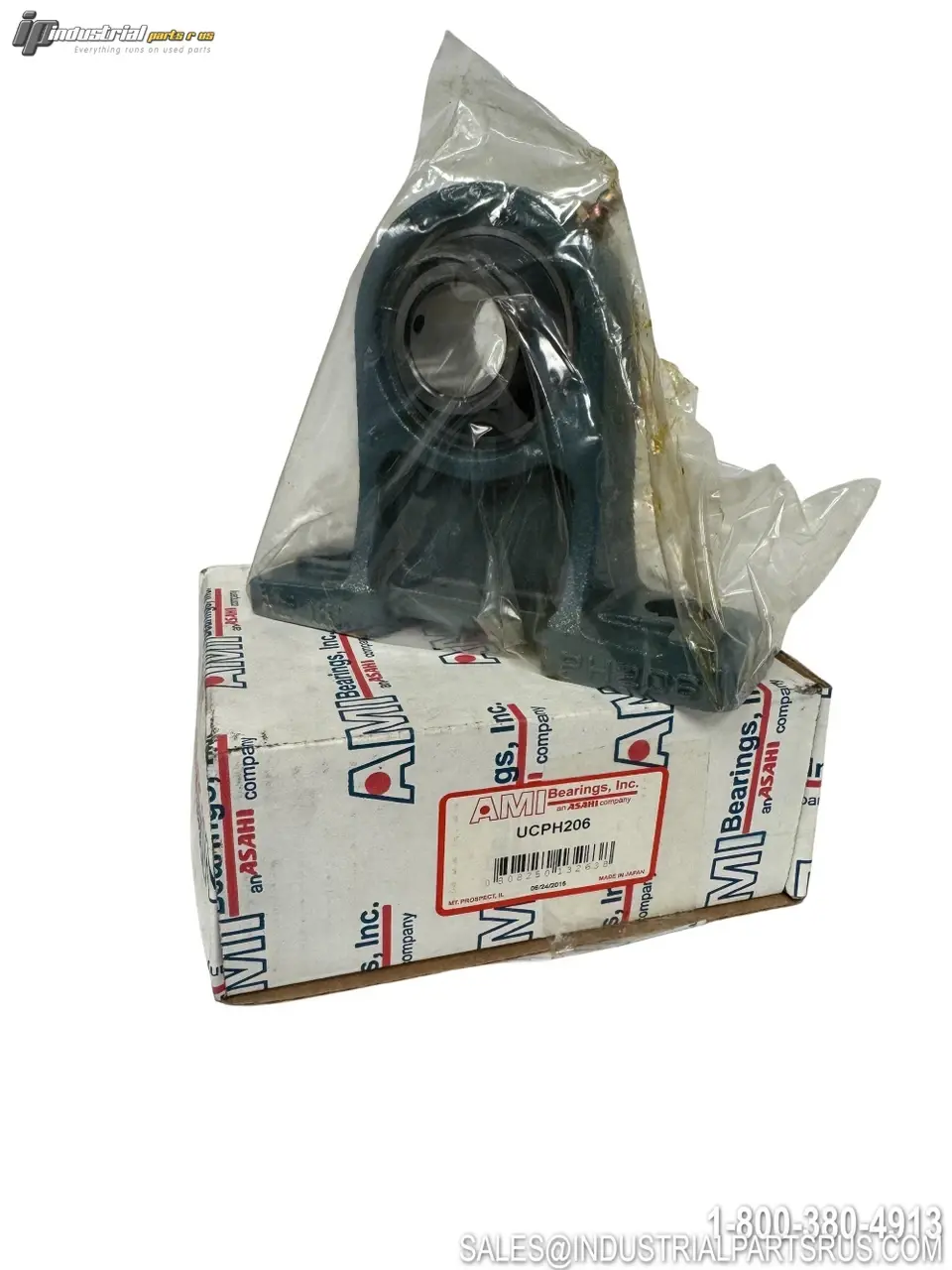

The Ami UCPH206 is a 30mm pillow block ball bearing unit designed for general purpose applications requiring reliable shaft support. This unit features a set screw locking mechanism, 2-bolt base mounting configuration, and cast iron housing construction for durability in demanding industrial environments.
Specification
Value
Brand
Ami
Model/Part Number
Ucph206
Manufacturer
AMI Bearings Inc. (Asahi Seiko Co., Ltd.)
Series
UCPH200
Bore Diameter
30 mm
Mounting Type
2-Bolt Base
Locking Device
Set Screw
Housing Material
Cast Iron
Seal Type
Contact Seal with Flinger
Overall Height
130 mm
Overall Length
165 mm
Base Width
50 mm
Base to Bore Centerline
90 mm
Bolt Size
M14
Radial Static Load Capacity
1150 kgf
Replacement Bearing
UC206
Expansion Type
Non-Expansion (Fixed)
Lubrication Type
Lubrication Fitting
Duty Type
Standard Duty
We warranty all items for 30 days from date of purchase.
| Weight | 4.00 LBS | 4.00 LBS |
SKU: AI1477
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 4.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Material: Chrome Steel
Manufacturer: Ami
Part Number: UCPH206
Shelf: K-65
Bore Diameter: 30 mm
Model: UCPH206
MPN: UCPH206
Type: Pillow Block
