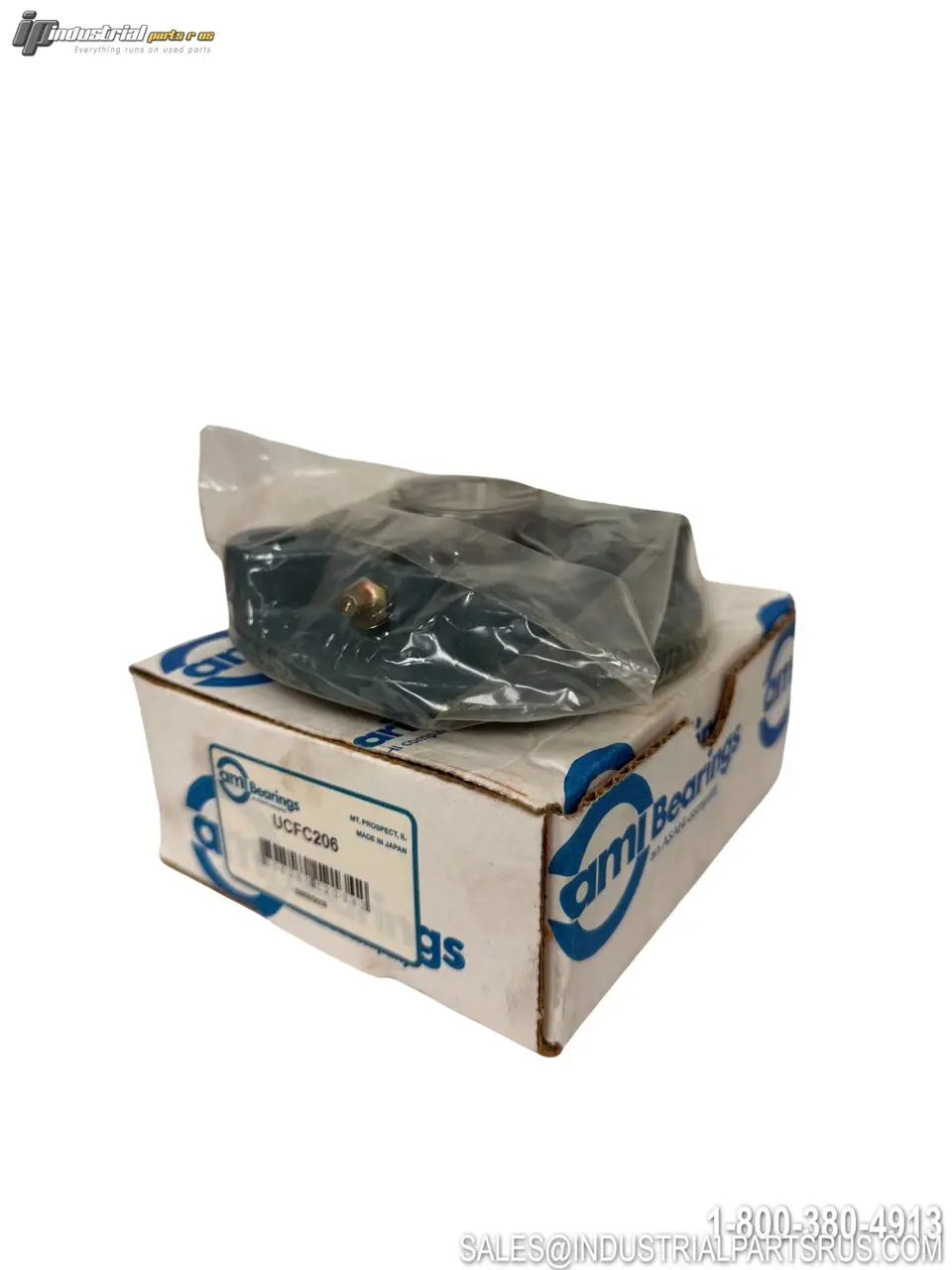

The AMI UCFC206 is a piloted flange cartridge bearing unit designed for industrial applications requiring precise shaft mounting and alignment. This bearing features a 30mm bore diameter with set screw locking mechanism and cast iron housing construction for durability and reliability in demanding environments.
Specification
Value
Brand
AMI
Model/Part Number
UCFC206
Product Type
Piloted Flange Cartridge Unit
Bore Diameter
30mm
Housing Material
Cast Iron
Locking Type
Set Screw
Mounting Type
4-Bolt Piloted Flange
Series
UCFC200
Bearing Number
UC206
Housing Number
FC206
Dynamic Load Rating
19.5 kN
Static Load Rating
11.3 kN
Bolt Size
3/8"
Seal Type
Contact Seal
Lubrication Type
Relubricatable
We warranty all items for 30 days from date of purchase.
| Weight | 5.00 LBS | 5.00 LBS |
SKU: AI1491
UPC: 679523686208
Condition: New
Availability: In Stock
Weight: 5.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Material: Chrome Steel
Manufacturer: Ami
Part Number: UCFC206
Shelf: K-64 Tub 4
Bore Diameter: 30 mm
Model: UCFC206
MPN: UCFC206
Type: Pillow Block
