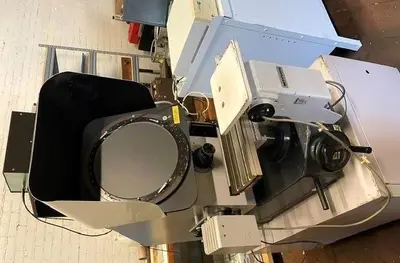

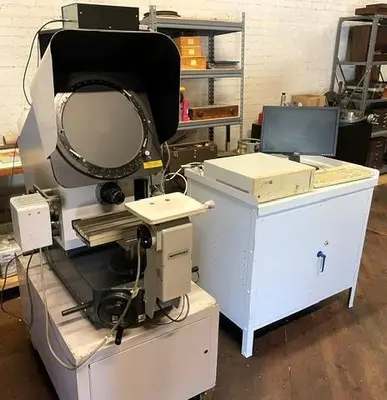

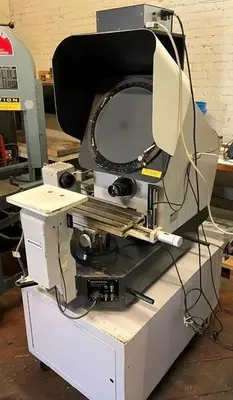

MITUTOYO OPTICAL COMPARATOR
MODEL: PH 350H
SERIAL NUMBER: 491 Year: Approximately 1990
GENERAL SPECIFICATIONS
Screen Diameter: 14"

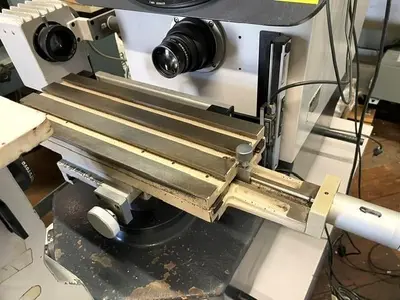

Size Of Work Stage Table: 15.7" x 5.9"
Longitudinal Table Travel: 6"
Vertical Table Travel: 3"
Angular Measuring Capacity: 360 Degree Chart Rotation
EQUIPPED WITH
Tungsten Halogen Projection: 12V/150 Watt
Surface Illumination

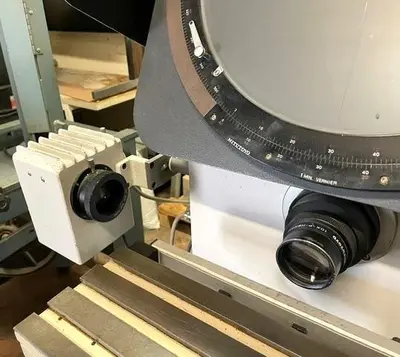

10X & 20X Lens

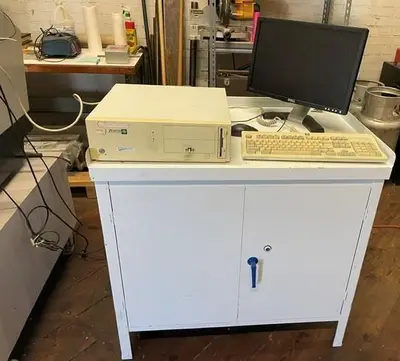

QC-4000 Comp. Digital Readout System w/Acurite Glass Scales & Dell Screen & Computer w/Edge Sensing
Electric: 120/60/1
Floor Space: 30" L-R x 48" F-B x 68"H (On Cabinet Base)
Approximate Weight: 300 Lbs.
Approximate Weight: 250 Lbs.
F.O.B. Charlotte, North Carolina
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
