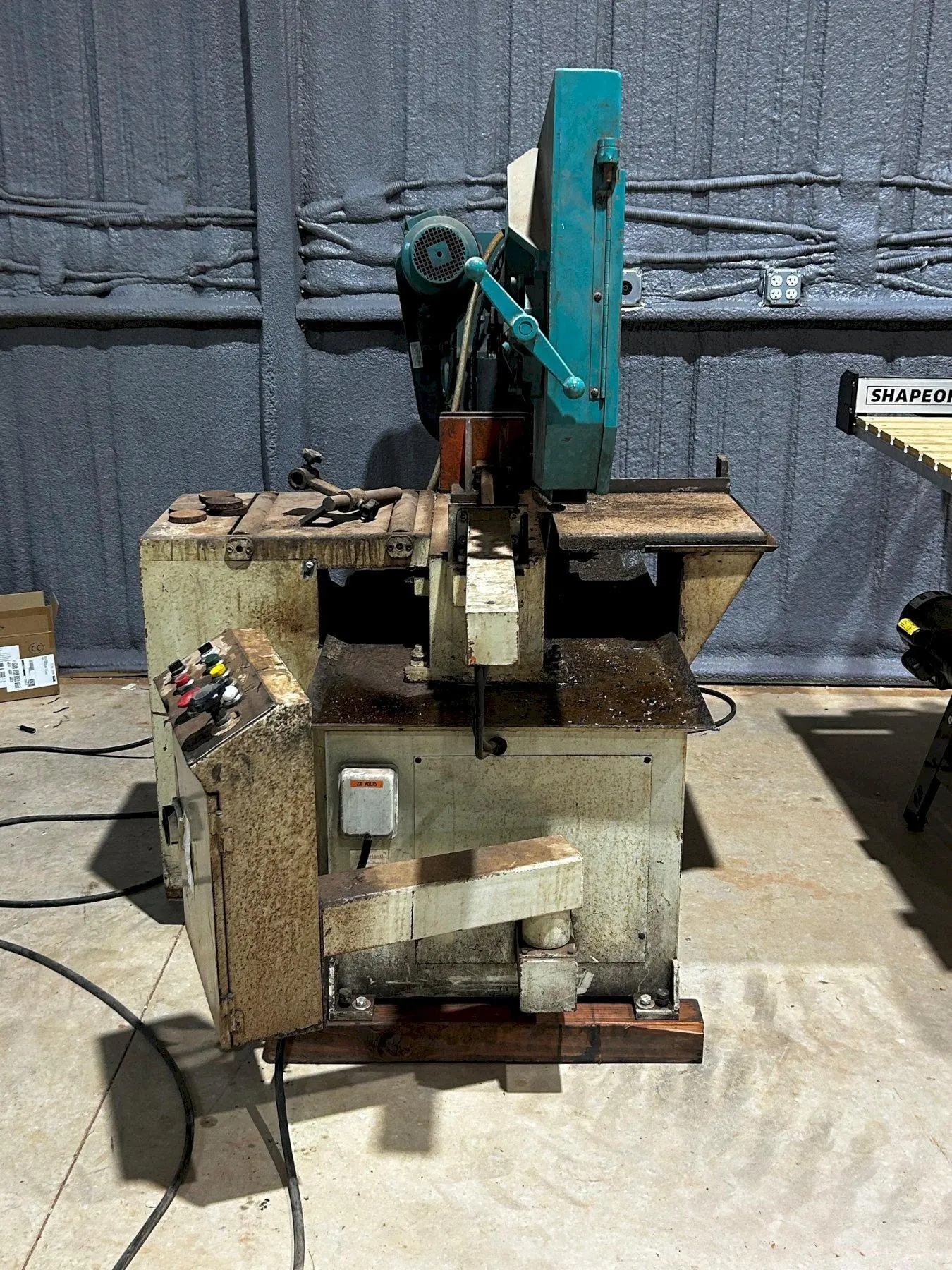

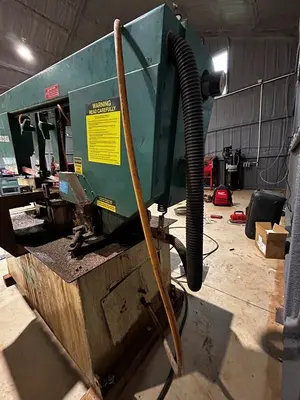

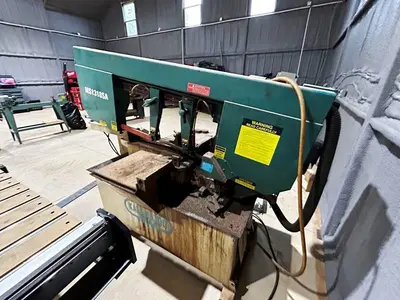

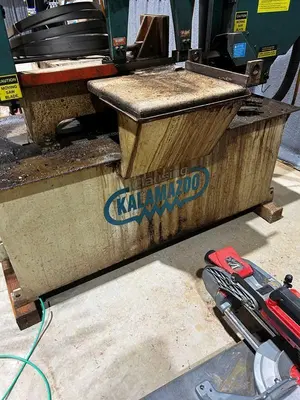

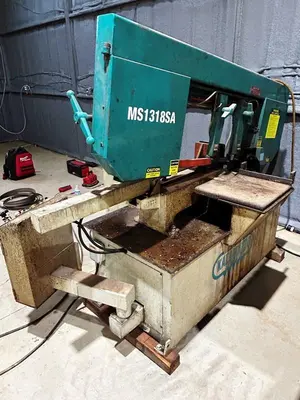

18.5" X 10.6" CLAUSING KALAMAZOO MS1318SA MITERING HORIZONTAL BAND SAW

Equipped With
18.5" X 10.6" CLAUSING KALAMAZOO MS1318SA MITERING HORIZONTAL BAND SAW
Motor Driven with 3 HP, 3-Phase, 60 Cycle, AC Motor & Controls
DESCRIPTION
Clausing Kalamazoo 13″ Semi-Automatic Swivel Head Mitering Horizontal Band Saw, MS1318SA
Advanced hydraulic system provides dependable power for powered clamping and raising the saw head at the end of the cut

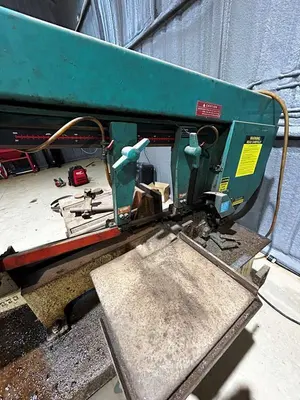

Full stroke machine vise for tight clamping of any material from operator’s panel
Operator’s panel pivots allowing operator to control the saw from the rear of the machine
EQUIPPED WITH: Coolant
SPECIFICATIONS:
Capacity Rectangles @ 60 Degrees                           18.5" x 10.6"
Capacity Rectangles @ 60 Degrees                            8.7" X .8.7"
Capacity Rectangles @ 45 Degrees                           10.5" X 10.5
Capacity Round @ 90 Degrees                                  13"
Capacity Round @ 45 Degrees                                  11.8"
Capacity Round @ 60 Degrees                                  8.7"
Capacity Squares @ 90 Degrees                                10.6"
Capacity Squares @ 60 Degrees                                10.5"
Capacity Squares @ 45 Degrees                                 8.7"
Blade Speeds                                                              98 to 328 FPM
Head Miters                                                                0 to 60 Degrees
Vises                                                                           7-1/2" x 6-1/2"
Blade Dimension                                                        13.7" X 1" X .035"
Approximate Dimensions                                           75" x 34" x 55.5" H
Approximate Weight                                                  1,500 Lbs.
