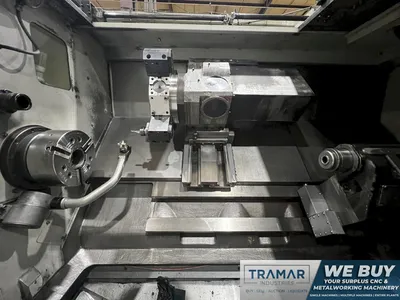

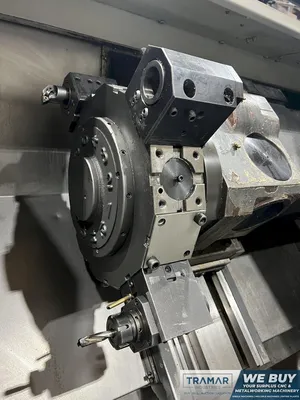

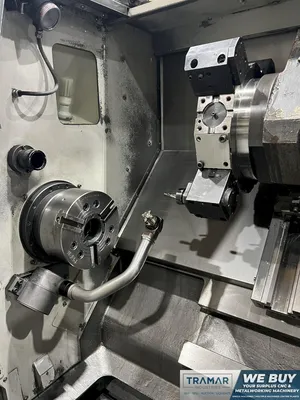

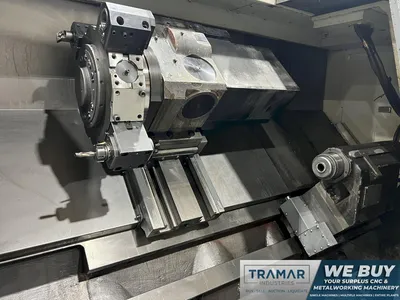

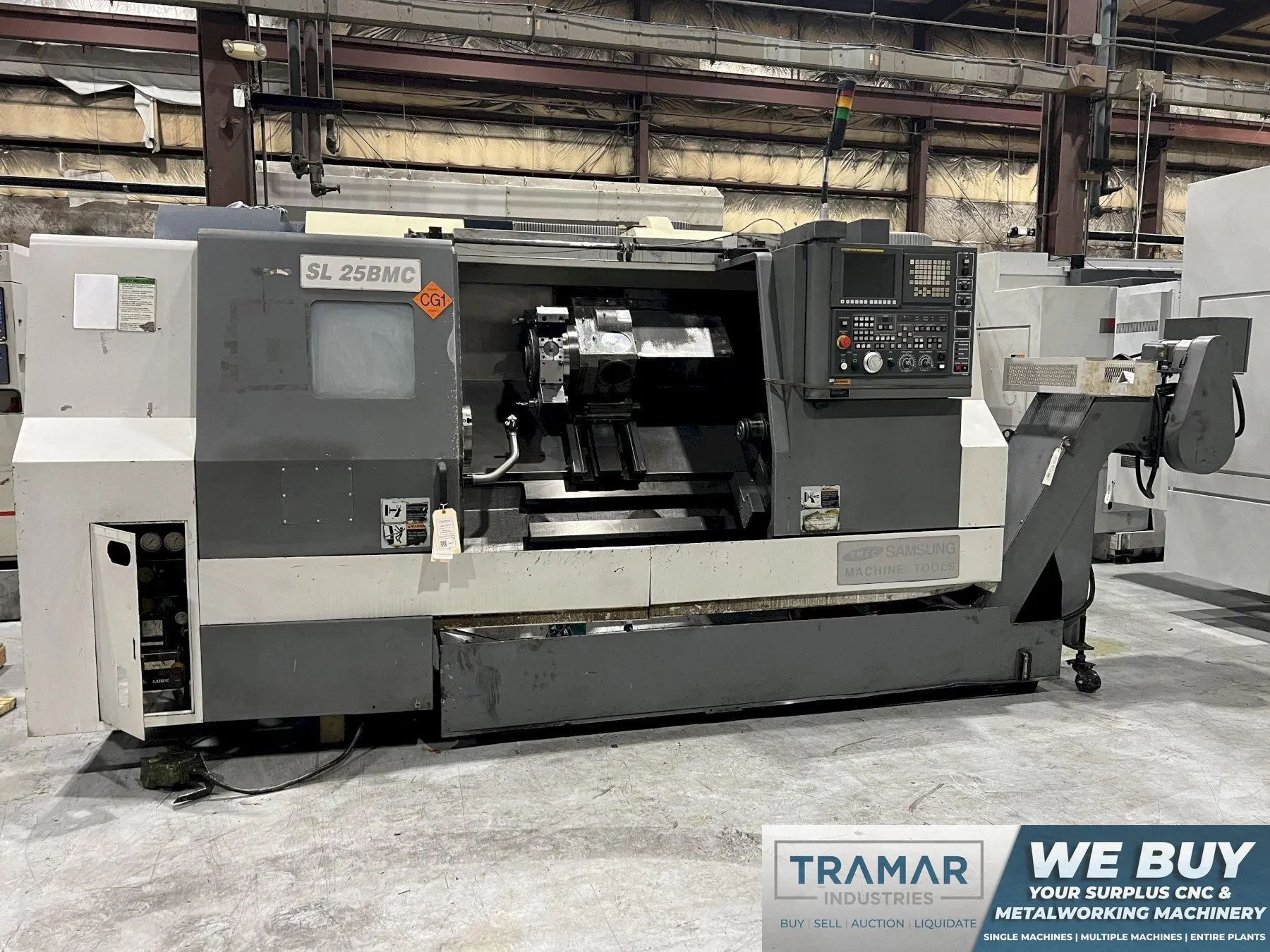

USED 2013 SAMSUNG SL25BMC

The Samsung SL25BMC is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes
Control Type: Fanuc 0i-TD
# Axis: 3
Swing: 25.06"
Turning Diameter: 13.78"
Center Distance: 44.30"
Chuck Size: 10"
Bar Capacity: 3"
X Axis Travel: 8.66"
Z Axis Travel: 42.91"
C Axis Index: 0.001°
Rapid Traverse (X/Z): 709/945 ipm
Spindle Speed: 3,500 rpm
Main Motor: 30 hp
Tailstock: yes
Y Axis: yes
Live Tooling: yes
Live Tooling Speed: 5,000 rpm
Live Tooling Motor: 5 hp
Sub Spindle: no
Turret Capacity: 12
Machine Weight: 14,400 pounds

- Fanuc 0i-TD CNC Control
- Box Ways

- Tool Presetter
- Chip Conveyor

- Coolant Tank & Pump

- (1) Axial (1) Radial Live Tool Holder

- Misc. Static Toolholders
- Live Tooling
