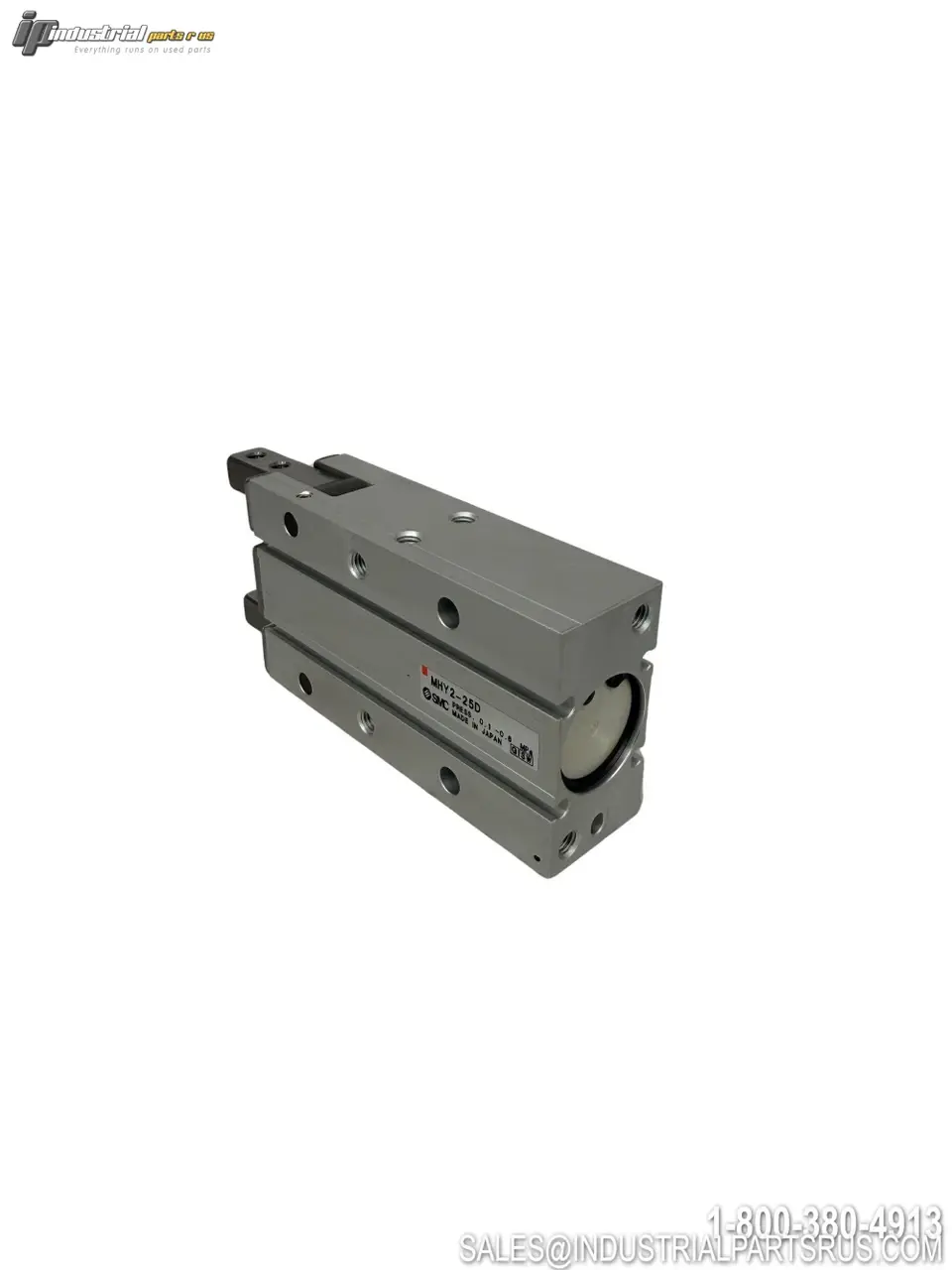

NEW SMC MHY2-25D
Overview
Description
The SMC MHY2-25D is a compact 180-degree angular pneumatic gripper featuring cam-style operation for reliable gripping force. This double-acting gripper uses a piston/cam design to deliver large gripping forces while maintaining small size and lightweight construction, making it ideal for automation applications.
Specification
Value
Brand
SMC
Model/Part Number
MHY2-25D
Product Type
180° Angular Air Gripper
Bore Diameter
25 mm
Operating Pressure Range
0.1 to 0.6 MPa
Gripping Force (at 0.5 MPa)
75 N
Port Size
M5×0.8
Operation Type
Double Acting
Gripper Style
Cam Style
Opening Angle
180°
Number of Fingers
2
Weight
620 g
Operating Temperature Range
-10°C to 60°C
Lubrication
Not Required (Pre-lubricated)
Auto Switch Capability
Yes (4 locations)
Material
Stainless Steel (Standard)
Series
MHY2
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 3.00 LBS | 3.00 LBS |
|---|
SKU: AI1473
UPC: 679523686246
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686246
Manufacturer: SMC
Part Number: MHY2-25D
Shelf: K-60
Bore Diameter: 25 mm
Model: MHY2-25D
MPN: MHY2-25D
Type: Pneumatic Gripper
