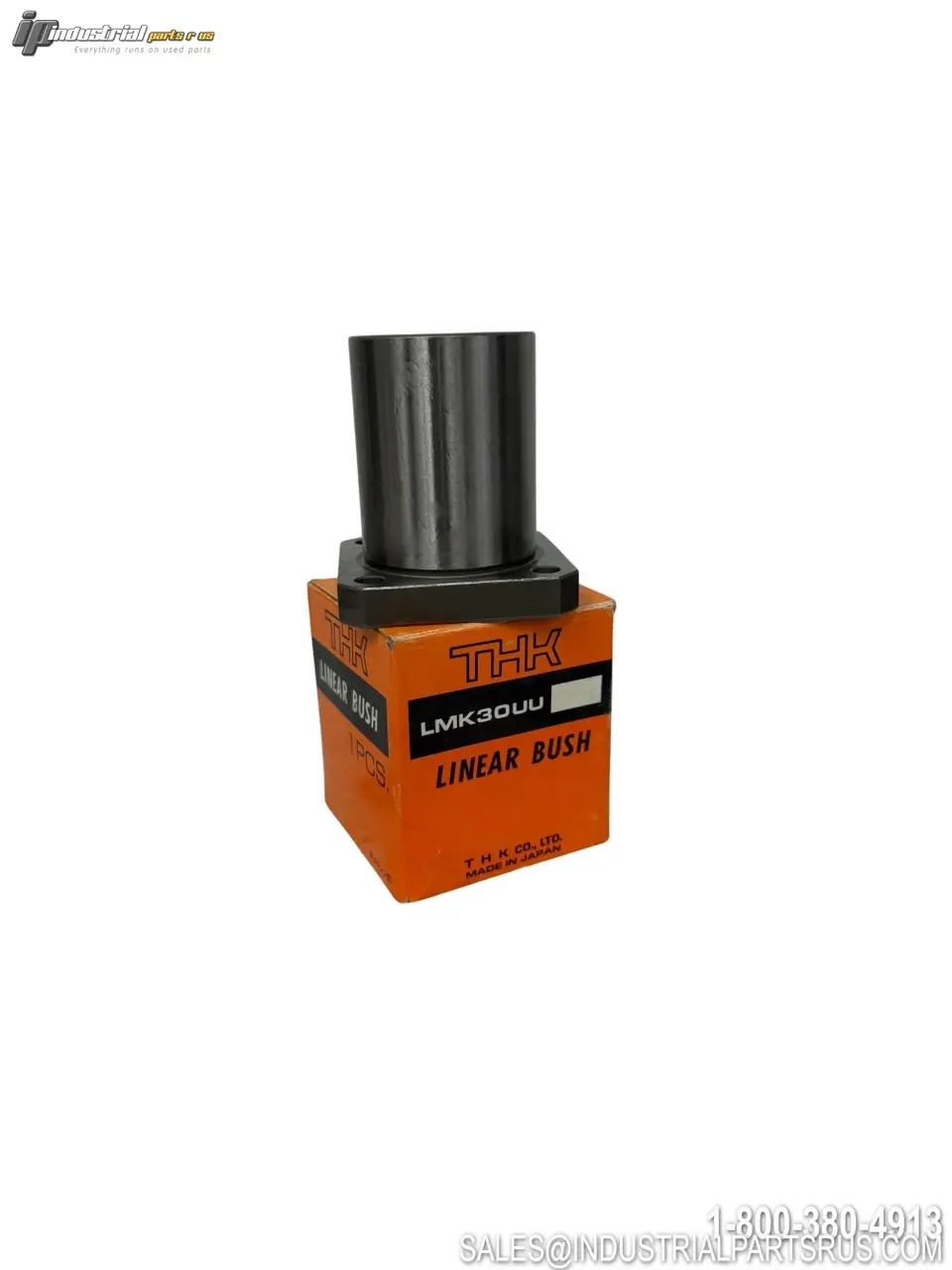

The THK LMK30UU is a square flanged linear ball bearing designed for precision linear motion applications. This bearing features a unique square flange design with flats at four locations, enabling compact designs with lower core height compared to round flange types. It is engineered for use with g6 metric shafts in CNC machines, 3D printers, and automated machinery.
Specification
Value
Brand
THK
Model/Part Number
LMK30UU
Type
Linear Bearing
Bore Diameter
30mm
Outer Diameter
45mm
Width/Length
64mm
Flange Size
58x58x10mm
Weight
375g
Material
52100 Chrome Steel
Number of Ball Rows
6
Dynamic Load Rating
160 kgf
Static Load Rating
280 kgf
Seal Type
Rubber Seals Both Ends
Mounting Hole Distance
44mm
Series
LMK
We warranty all items for 30 days from date of purchase.
| Weight | 2.00 LBS | 2.00 LBS |
SKU: AI1474
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: THK
Part Number: LMK30UU
Shelf: K-65 Tub 3
Model: LMK30UU
MPN: LMK30UU
Type: Linear Bearing
