USED HWACHEON MEGA 95/3000

24" 3 Jaw Manual Chuck
12 Position Hydraulic Turret
Heavy Duty Tailstock w/ One Shot Lubrication

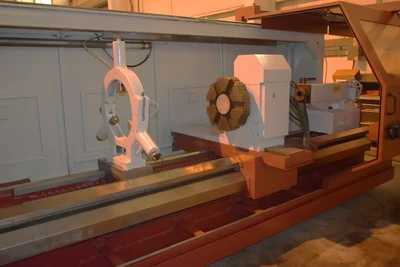

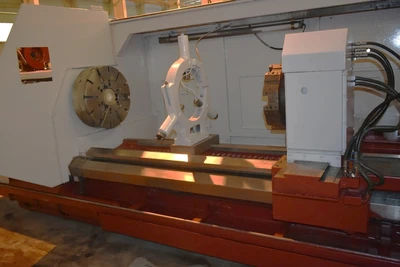

Steady Rest
Chip Conveyor
6" Bar Capacity
48.4" Turning Diameter in Gap

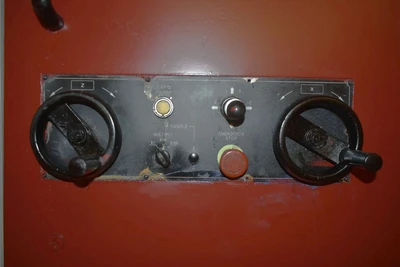

Manual Hand Wheels
Status Lights
Coolant System with Full Length Tank & Pump
All Available Tooling
All Available Manuals

The Hwacheon Mega 95/3000 is a robust used CNC lathe designed for precise and efficient machining, suitable for large-scale operations. This machine offers a maximum turning length of 118 inches and supports up to a 48.4-inch maximum turn diameter, making it excellent for handling a variety of large workpieces. Equipped with a 24-inch 3-jaw manual chuck, it provides a 6-inch bar capacity. The spindle operates at speeds ranging from 40 to 1,000 RPM, powered by a 30 HP motor, ensuring flexibility in operation while maintaining excellent performance.

This model features a Fanuc 21T Series Control, enabling user-friendly operation and enhancing productivity. With an X-axis travel of 19.09 inches and Z-axis travel of 118 inches, it is engineered to accommodate extensive workpieces with precision. The turret has 12 positions, optimizing tool setup and versatility. Additionally, rapid traverse rates of 236 IPM allow for swift, efficient movements.

Constructed for heavy-duty operations, this CNC lathe includes a steady rest and tailstock, enhancing stability during machining. The machine dimensions are 236 inches in length, 99 inches in width, and 85 inches in height, with a substantial weight of 22,000 lbs, making it a durable, reliable choice for demanding environments.

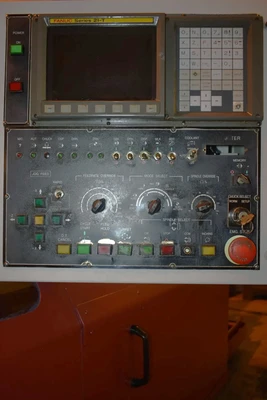

Control: Fanuc 21T Series Control
Chuck Size: 24" 3 Jaw Manual Chuck
Maximum Swing Over Bed / Gap: 38.6" / 48.4"
Maximum Swing Over Cross Slide: 26.2"
Maximum Turning Length: 118"
X-Axis Travel: 19.09"
Z-Axis Travel: 118"
Spindle Speed: 40 - 1,000 RPM
Spindle Nose / Bore / Bar Capacity: A2-15" / 6" / 6"
Spindle Motor: 30 HP
Number of Turret Positions: 12 Position Turret
Rapid Travers Rates: 236 IPM
Tailstock Body Travel / Quill Travel: NA / 10.2"
Machine Dimensions LxWxH: 236" x 99" x 85"
Machine Weight: 22,000 lbs
