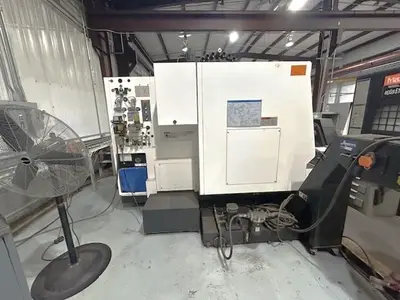

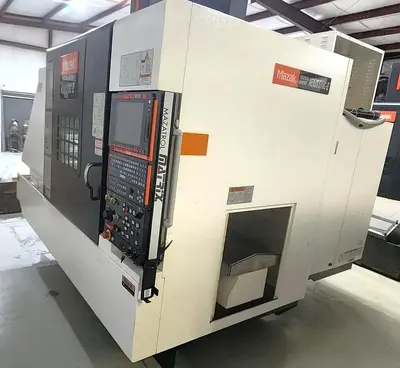

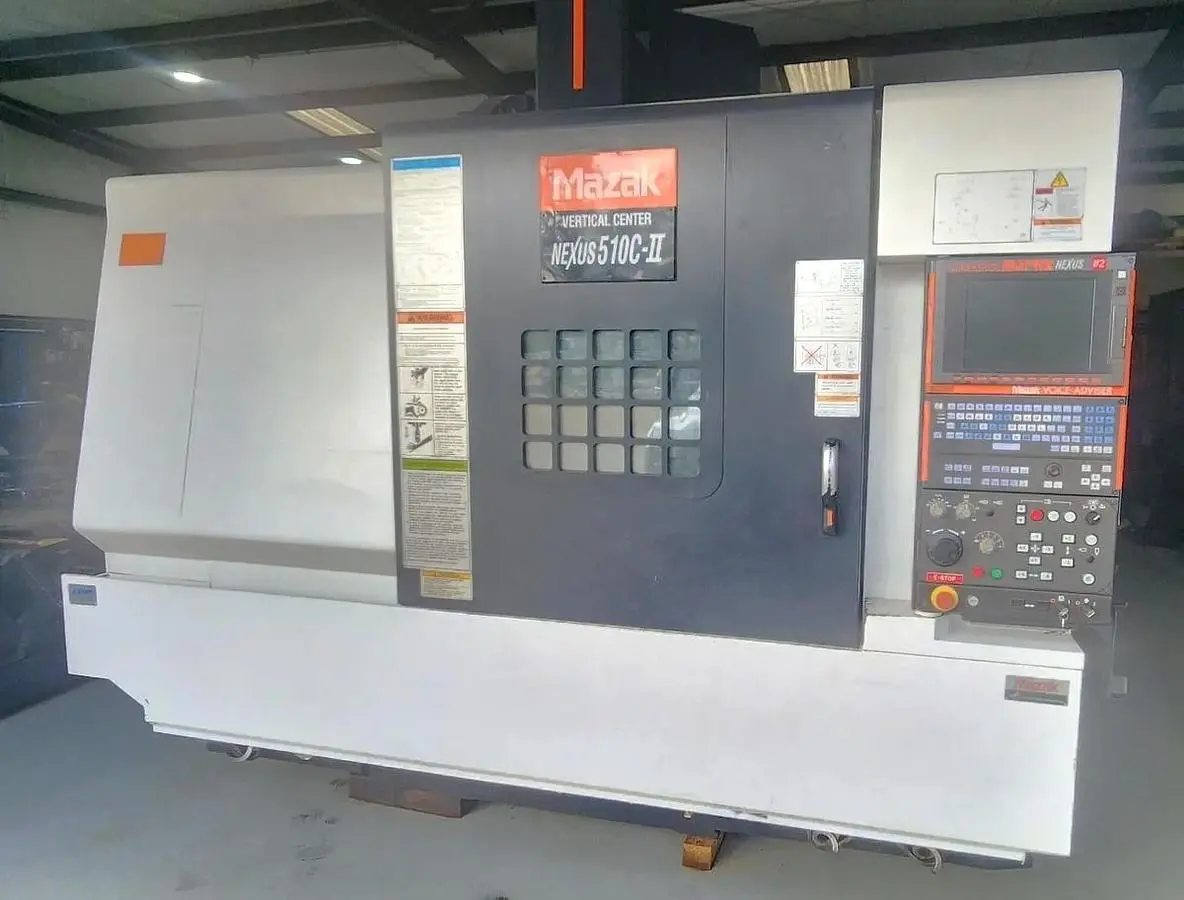

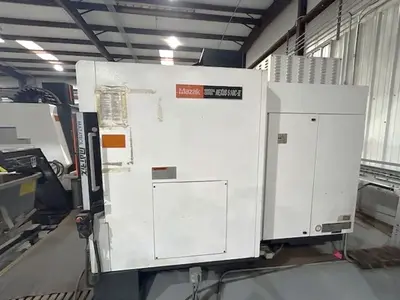

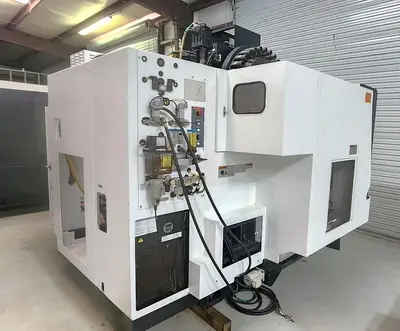

USED 2013 MAZAK NEXUS VCN 510C II

4th Axis Ready
Quad Auger Chip Removal System
Chip Conveyor - External Belt Type
30 Station Side Mounted Tool Changer
Automatic Tool Length Measurement Probe Remote Hand Held MPG
Coordinate Rotation & Scaling Rigid Tapping
EIA/ISO Input Function
Mazzac2D Software G-61.1 PCMCIA Interface 2 Slots USB Port Interface 3.5" Floppy Disk Drive Interface RS-232 Port Interface Multi Tap Transformer
Coolant System with Tank & Pump
Wired 208V Electrics

**Total Cutting Hours 4,232**

The 2013 Mazak Nexus VCN 510C II is a robust used CNC Vertical Machining Center designed for precision and versatility in 3-axis machining operations. It features a Mazatrol Matrix Nexus control system, enhancing ease of programming and operation. The machine comes equipped with a 51.18" x 21.65" table, able to handle a maximum load of 2,646 lbs., making it suitable for a variety of large workpieces.

This model includes key features such as a 41.3" X-axis travel, 20" Y-axis and Z-axis travels, ensuring ample reach and flexibility. It operates at spindle speeds up to 12,000 RPM with a robust 25 HP spindle motor, utilizing a CAT #40 spindle taper. The machine is prepped for coolant through the spindle and includes a 4th axis drive capability, enhancing its operational scope. Additionally, it comes with a side-mounted, 30-station automatic tool changer facilitating swift tool swaps with a tool-to-tool change time of just 1.3 seconds.

For efficient chip management, this unit is fitted with a chip conveyor. The machine's rapid traverse rates reach up to 1,417 IPM, contributing to quicker cycle times for increased productivity. With machine dimensions of 113" x 111" x 113" and an operational weight of 15,200 lbs., the Mazak Nexus VCN 510C II is a heavy-duty, reliable performer for any machining task.

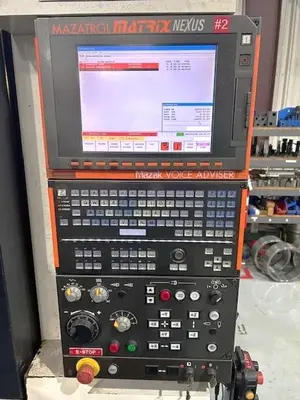

Control: Mazatrol Matrix Nexus
Table Size: 51.18" x 21.65"
Maximum Table Load: 2,646 lbs.
X-Axis Travel: 41.3"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Spindle Taper: CAT #40
Spindle Speeds: 12,000 RPM
Spindle Motor: 25 HP
Distance Spindle Nose to Table Top: 5.9" - 25.98"
Number of Tool Positions: 30 Station Tool Changer - Side Mounted
Maximum Tool Diameter / Length / Weight: 4.92" / 13.8" / 17 lbs.
Tool Change Time Tool to Tool: 1.3 seconds
Rapid Traverse Rates: 1,417 IPM
Machine Dimensions: 113" x 111" x 113"
Machine Weight: 15,200 lbs.
