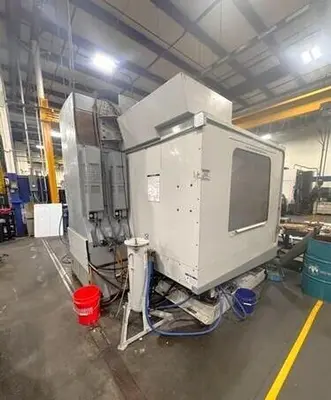

USED 2004 HAAS VF8/50

50 Taper Spindle Option
Coolant Through the Spindle - 300 PSI
30 Station Side Mounted Tool Changer
Haas Probing Package includes Spindle Mounted Part Probe (does not include table tool probe)
10,000 RPM Spindle Option

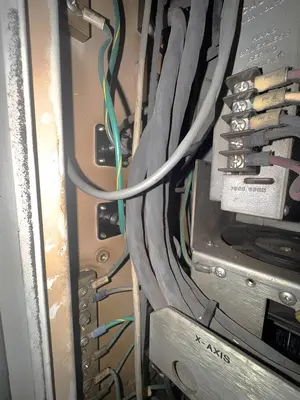

4th Axis Drive & Wiring - Brushless
5th Axis Drive & Wiring - Brushless
Rigid Tapping
Chip Auger Conveyor
Programmable Coolant Nozzle
High Speed Machining
Visual Quick Code Programming
User Definable Macros
Spindle Orientation
Coordinate Rotation & Scaling
Negative Work Offsets
Remote Jog Handle

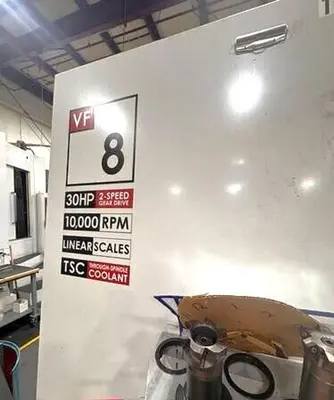

2 Speed Gearbox
Linear Scales
High Intensity Lighting
Auxiliary Coolant Filter System
Memory Key Lock Switch
208-230V Electrics
USB Port Interface
RS 232 Port Interface
Haas Manual
Back Up Disk

**Power On Hours 13,424**
**Machine Motion Hours 8,766**
**Spindle Run Hours 8,129**

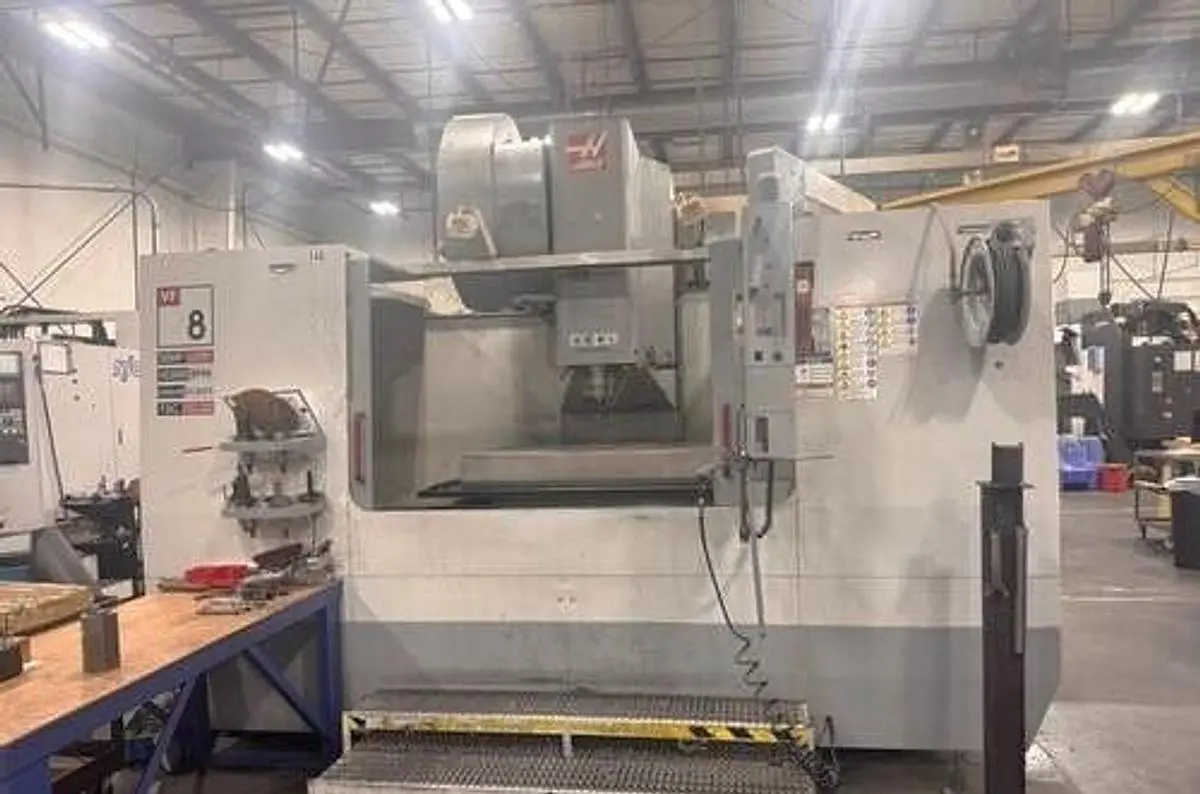

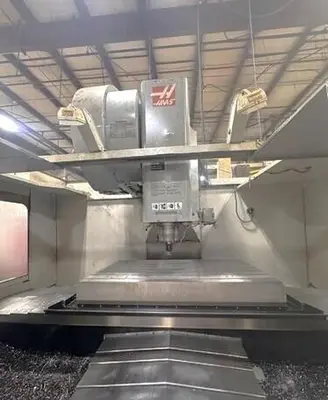

The 2004 Haas VF8/50 CNC Vertical Machining Center is a robust and reliable machine designed for high-performance precision machining. This 3-axis VMC is equipped with a Haas CNC Control system and a large 64" x 36" table capable of handling loads up to 4,000 lbs. It features an impressive X-Axis Travel of 64", a Y-Axis Travel of 40", and a Z-Axis Travel of 30". The machine's spindle is a CAT 50 taper offering a powerful 30 HP with speeds up to 10,000 RPM, supported by a geared head.

Ready for advanced operations, this model comes probe ready and includes a coolant-through spindle system, enabling efficient cooling for various machining processes. A programmable coolant nozzle (PCool) and auger come standard, enhancing chip removal and management. The 30-position side-mounted tool changer allows for quick tool swaps, accommodating tools up to 5.3" in diameter and 25 lbs. in weight. The VF8/50 also boasts rapid traverse rates of 540 IPM in the X and Y axes and 600 IPM in the Z axis, helping to minimize idle time.

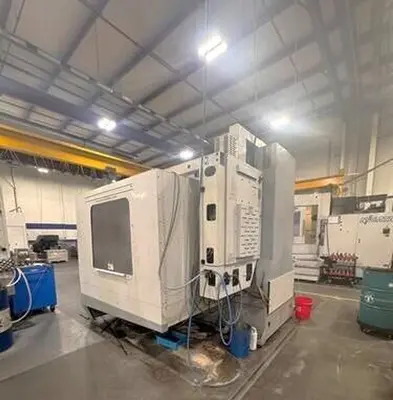

With overall dimensions of 156"x139"x129" and weighing in at 24,000 lbs., this machine is a sturdy addition to any manufacturing setup, ready to handle complex jobs with speed and precision. Ideal for large-scale production or heavy-duty applications, the 2004 Haas VF8/50 remains a dependable choice for various machining needs.

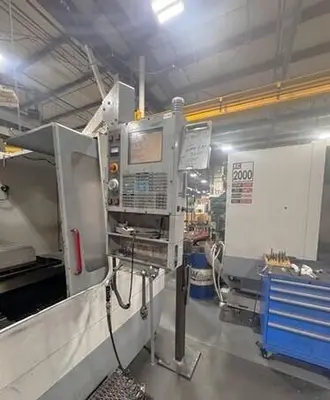

Machine Control: Haas CNC Control

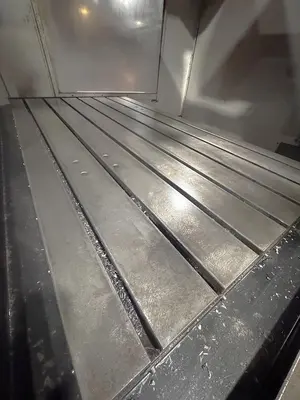

Table size: 64" x 36"
Maximum Table Load: 4,000 lbs
X-Axis Travel: 64"
Y-Axis Travel: 40"
Z-Axis Travel: 30"
Spindle Taper: CAT 50
Spindle Motor: 30 HP
Spindle Speeds: 10,000 RPM
Distance Spindle Nose to Table Top: 5" - 35"
Tool Magazine Capacity: 30 Position Side Mount
Maximum Tool Diameter / Weight: 5.3" / 25 lbs.
Rapid Traverse Rates X / Y, Z: 540 IPM / 600 IPM
Machine Dimensions LxWxH: 156"x139"x129"
Machine Weight: 24,000 lbs.
