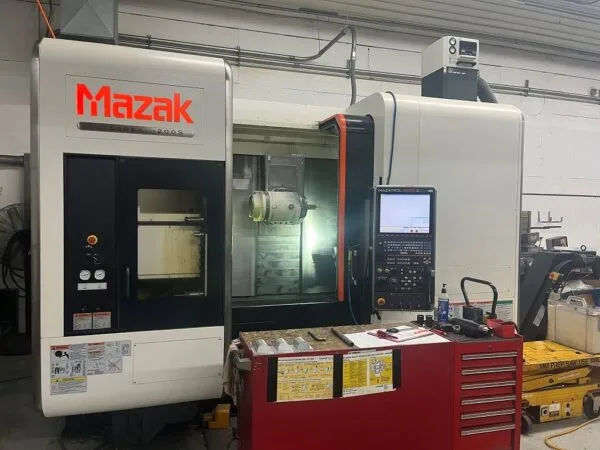

Mazak Integrex i-200S
Specifications
Main Spindle Chuck 8″
Maximum Swing 25.91″
Maximum Machining Length 40″
Maximum Bar Size 2.6″
Main Spindle HP 30 HP
Main Spindle RPM 5000 RPM
Spindle Taper Capto C6
2nd Spindle HP 30 HP
2nd Spindle RPM 5000 RPM
2nd Spindle Chuck 8″
Milling Spindle HP 30 HP
Milling Spindle RPM 12,000 RPM
Number of Tool Stations 72
Maximum Tool Length 15.75″
X Axis Travel 24.21″
Y Axis Travel 10.24″
Z Axis Travel 42.4″
B Axis Travel -30° to +240°
C Axis Positioning 0.0001 Deg.
W Axis Travel 41.97″
Mazatrol Matrix 2
Thru Coolant/ Flood Coolant (213 PSI)
Work Measuring System RMP60 Probe
Hobbing Function W/O Tooling
EIA/ISO Function Simultaneous 5 Axes
Tool Tip Point Control /Simultaneous 5 Axes
Tool Radius Compensation / 5-Axis
EIA Dynamic Compensation
Mazacc-3D High-Speed Software Package
High Smoothing Control
Chip Conveyor Side Disposal (Hinge Type)
