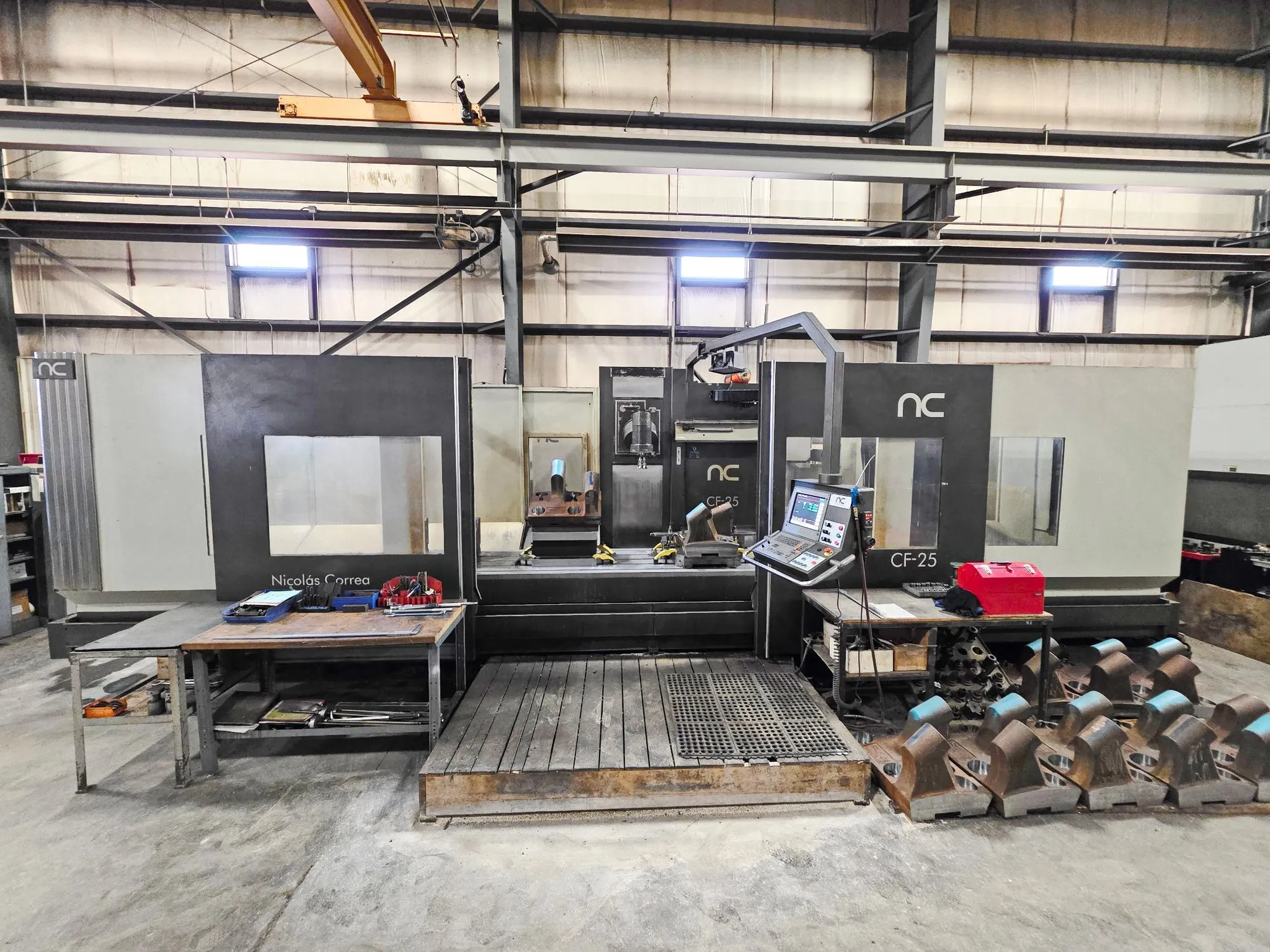

2005 Nicolás Correa CF25/35 Bed-Type CNC Machining Center, UAD Auto-Indexing Universal Milling Head, 4th-Axis Rotary Table W/ 20" Chuck And Approx. 6" Bore, Internal Coolant, Paper Filtration System, Chip Conveyor
| Table-W | 39.37" | 1,000 mm |
| Table-L | 149.61" | 3,800.1 mm |
| # Axis | 4 | 4 |
| X-Axis Travel | 137.8" | 3,500.1 mm |
| Y-Axis Travel | 39.37" | 1,000 mm |
| Z-Axis Travel | 39.37" | 1,000 mm |
| ATC Positions | 30 | 30 |
| Power | 29.5 hp | 22 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| Taper | ISO 50 DIN 69871 | ISO 50 DIN 69871 |
| Max Table Load | 17,637 lb | 8,000 kg |
| Rapid Traverse (X/Y/Z) | 787 in/min. | 787 in/min. |
| Distance Between T-Slots | 7.87" | 199.9 mm |
| Made In | Spain | Spain |
| Control | CNC (Heidenhain TNC-530) | CNC (Heidenhain TNC-530) |
| Dimensions | 384" X 168" X 122" (Approx.) | 384" X 168" X 122" (Approx.) |
| Weight | 48,502 lb | 48,502 lb |
UAD auto-indexing universal milling head (0.1° / 0.1°)
4th-axis rotary table w/ 20" chuck & approx. 6" bore
4th-axis ready
Internal coolant
Chip conveyor
Paper filtration system
Full machine guarding
Heidenhain HR-410 electronic handwheel
