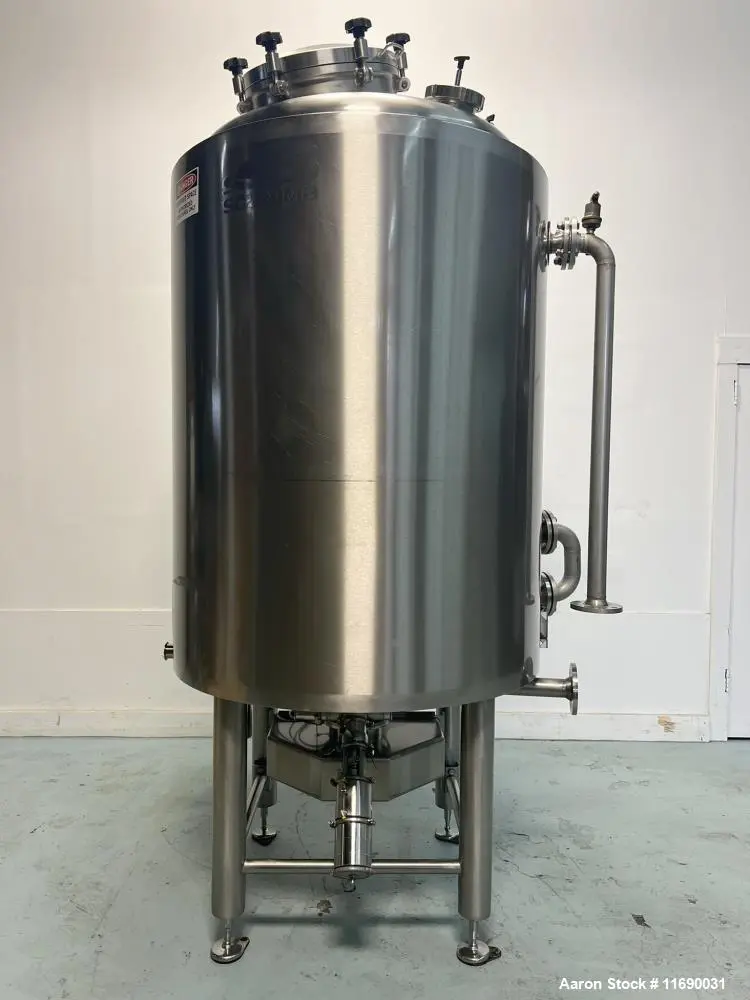

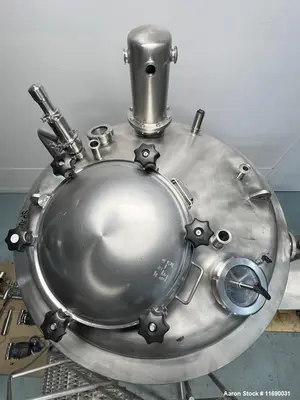

Used Tetra Pak (Scanima) STM-1250V Aseptic Mixing Reactor | 1,500L High Shear Vacuum Vessel

Used Tetrapak (Scanima) 1,500 Liters (396 Gallon) 316 Stainless Steel Vacuum and Pressure Jacketed Aseptic High Shear Mixing Reactor, Model STM-1250V. The vessel is rated full vacuum /45 PSI internal pressure, and is jacketed for 75 PSI maximum pressure, maximum jacket temperature is 150 Degrees C. Bottom entering high shear agitator driven by a 50 HP (3/60/460V) motor. Includes a 2" Pneumatic discharge valve and 2" recirculation valve. Includes a control panel with VFD, a pneumatic panel and an operator PC station. Built 2009.

Used Equipment Facts About This Machine
Manufacturer: Tetra Pak (Scanima)
Model: STM-1250V
Equipment Type: Aseptic High Shear Mixing Reactor
Capacity: 1,500 Liters (396 Gallons)
Material: 316 Stainless Steel
Condition: Used
Year Built: 2009

Description
Used Tetra Pak (Scanima) STM-1250V aseptic high shear mixing reactor designed for precision blending, emulsification, and thermal processing in sanitary environments. Constructed from 316 stainless steel, this vessel is ideal for food, dairy, pharmaceutical, and cosmetic applications requiring strict hygiene standards.
The reactor is rated for full vacuum and up to 45 PSI internal pressure, with a jacket rated to 75 PSI and maximum temperature of 150°C, enabling efficient heating and cooling. The system features a powerful bottom-entering high shear agitator driven by a 50 HP motor, delivering excellent mixing performance and product consistency.
This unit includes a 2” pneumatic discharge valve and 2” recirculation valve for process flexibility. The system is complete with a control panel featuring VFD, pneumatic panel, and operator PC station, making it a fully integrated solution for automated processing.

Specifications

Manufacturer: Tetra Pak (Scanima)
Model: STM-1250V
Capacity: 1,500 liters (396 gallons)
Type: Aseptic high shear mixing reactor
Material: 316 stainless steel

Pressure & Temperature Ratings

Internal: Full vacuum / 45 PSI
Jacket: 75 PSI
Max Jacket Temperature: 150°C

Agitation System

Bottom-entering high shear mixer

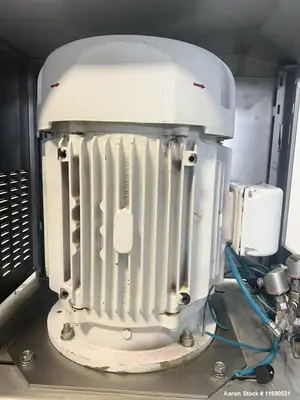

Motor: 50 HP
Electrical: 3 Phase / 60 Hz / 460V

Features

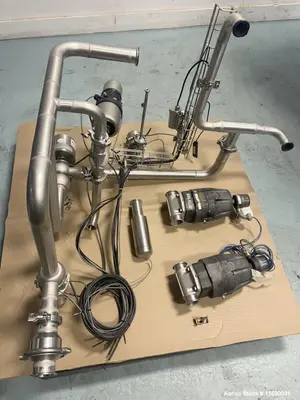

2” pneumatic discharge valve
2” recirculation valve
Control panel with VFD
Pneumatic control panel
Operator PC station
Year Built: 2009

Applications
Ideal for aseptic processing, emulsification, and high shear mixing in regulated industries.

Products This Equipment Would Be Used For

Dairy products
Sauces and dressings
Baby food
Nutritional beverages
Cosmetic creams and lotions
Pharmaceutical formulations
Emulsions
Liquid food products
Syrups and concentrates
Specialty chemicals
