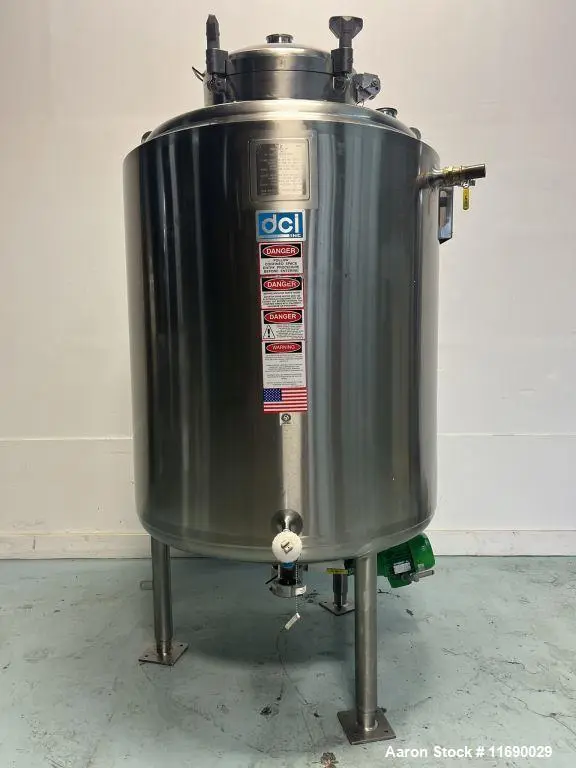

DCI 1,000 Liter Reactor – Jacketed Emulsification Mixing Tank

DCI 1,000 Liter Reactor Jacketed Emulsification Mixing Tank. Vessel is rated 30 psi at -20 to 300 degrees F, Jacket rated 150psi at -20 to 300 degrees F. Bottom mounted emulsifier, driven by a 0,65kw (0.87hp) 3/60/460v 3410 rpm motor. Includes a thermowell and spray ball. 3" Pneumatically actuated sanitary discharge valve, (1) VFD and box containing misc. pneumatic control valves, piping, etc. Mounted on 3 stainless steel legs. Serial# JS4470B, National Board# 7434, Built 2009.

Used Equipment Facts About This Machine
Manufacturer: DCI
Equipment Type: Jacketed Mixing Reactor / Emulsification Tank
Capacity: 1,000 Liters (264 Gallons)
Material: Stainless Steel
Condition: Used
Year Built: 2009
Serial Number: JS4470B
National Board #: 7434

Description
Used DCI 1,000 liter stainless steel mixing reactor designed for pressure-rated processing, emulsification, and temperature-controlled mixing applications. This vessel is rated for 30 PSI internal pressure and operates across a wide temperature range from -20°F to 300°F, making it suitable for a variety of demanding industrial processes.

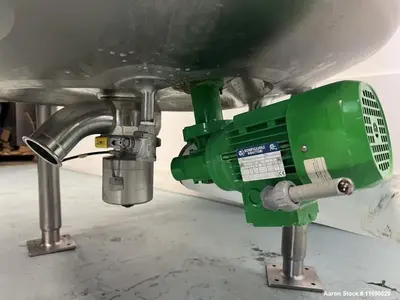

The tank features a jacket rated to 150 PSI, allowing efficient heating and cooling. Equipped with a bottom-mounted emulsifier driven by a 0.65 kW (0.87 HP) motor at 3410 RPM, the system ensures high shear mixing and consistent product dispersion.
Additional features include a thermowell for temperature monitoring, a spray ball for CIP cleaning, and a 3” pneumatically actuated sanitary discharge valve. The system also includes a VFD and control box with pneumatic valves and piping for enhanced process control. Mounted on three stainless steel legs, this reactor is suitable for sanitary environments such as pharmaceutical, food, and cosmetic production.

Specifications

Manufacturer: DCI
Capacity: 1,000 liters (264 gallons)
Type: Jacketed mixing reactor / emulsification vessel
Material: Stainless steel

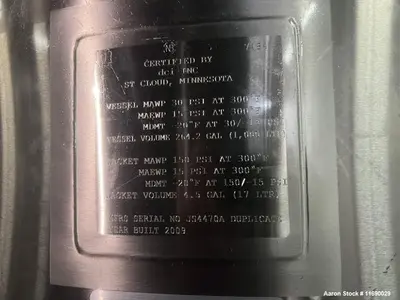

Internal Rating: 30 PSI
Temperature Range: -20°F to 300°F
Jacket Rating: 150 PSI (-20°F to 300°F)

Agitation / Mixing

Bottom-mounted emulsifier

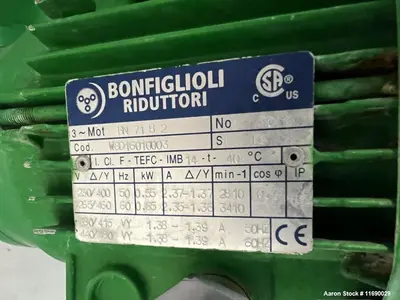

Motor: 0.65 kW (0.87 HP)
Speed: 3410 RPM
Electrical: 3 Phase / 60 Hz / 460V

Features

Thermowell
Spray ball (CIP capable)
3” pneumatically actuated sanitary discharge valve
VFD included

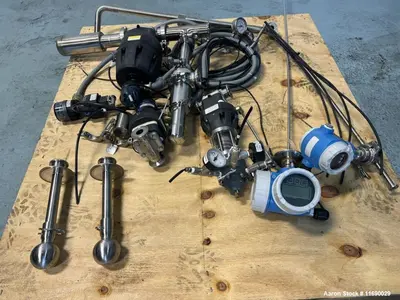

Pneumatic control valves and piping

Construction

Mounting: (3) stainless steel legs
Serial #: JS4470B
National Board #: 7434
Year Built: 2009

Applications
Ideal for emulsification, mixing, heating, and pressure processing in sanitary and industrial environments.

Products This Equipment Would Be Used For

Cosmetic creams and lotions
Emulsions
Pharmaceutical formulations
Food ingredients
Sauces and dressings
Adhesives
Chemical blends
Nutraceutical products
Gels and pastes
Specialty liquids
