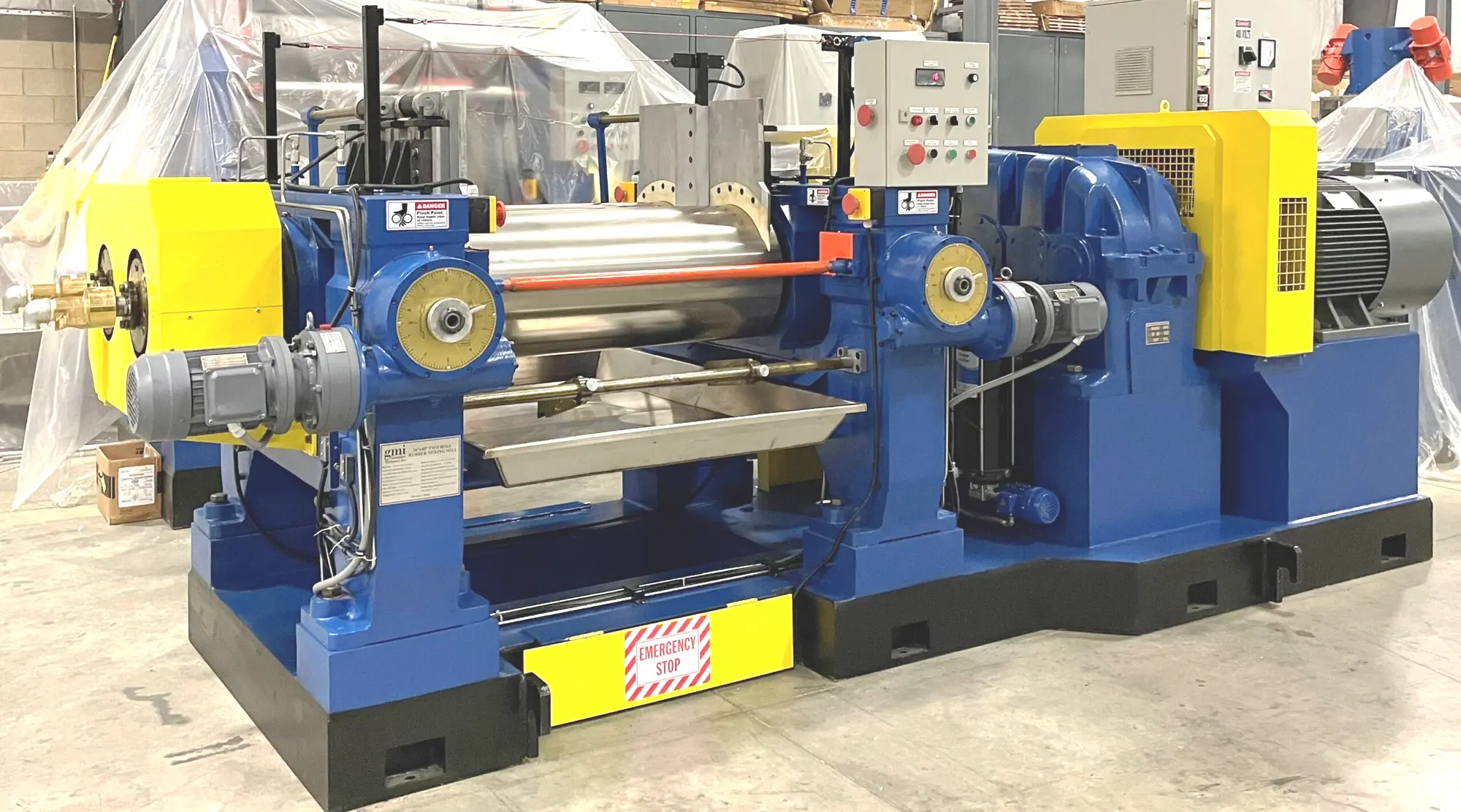

NEW 16″ x 40″ Two Roll Mill, Item # 1729

Cored rolls for heating or cooling
Rolls: 16″ Ø x 40″ Long (400X1000mm)
Roller bearings
Motorized roll nip adjustments
Friction ratio = 1.27:1
Two teflon stock guides mounted on heavy construction round bar providing full adjustability along the bar and the length of the rolls.
Triple reduction (50:1) gear reducer with helical gearing. Catalog rating 175 HP @ 1200 RPM.
Direct drive
Bearing housings with anti-dust seals and with zirc fittings for manual grease lubrication. Automatic grease lubrication system available separately upon request.
Hydraulically operated safety brake
Overhead perimeter cable, front & rear belly bars, front kick plate, and front & rear E-stop pushbuttons for operator safety.
Low -speed and high-speed couplings
Two rotary joints with siphon pipes for roll cooling
Stainless steel mill pan
60HP/480V/1200RPM motor
Unitized steel base for easy installation
Operator control station with start, stop, emergency stop, left & right roller nip adjustment, etc.
Main electrical panel with voltmeter, ammeter, SOFT motor starter, fuses, power disconnect, control transformer, cooling fan, etc.
480V/3PH/60HZ
Overall Dimensions: 15’ L x 5’3” W x 5’10” H (18,000 Lbs)
Height from ground to top of rolls: 46” without leveling feet or anti-vibration pads (offered separately). Minimum height required by OSHA is 50″.
New Rubber and Silicone Mill
