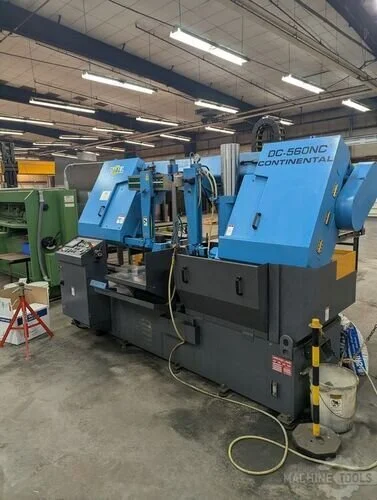

DoAll DC-560NC 24" x 22" Horizontal Automatic Bandsaw
| Rect-Cap (H) | 22" | 558.8 mm |
| Rect-Cap (W) | 24" | 609.6 mm |
| Rounds-Cap | 22" | 558.8 mm |
| Power | 10 hp | 7.5 kW |
| Blade Width | 2" | 50.8 mm |
| Blade Thickness | 0.063" | 1.6002 mm |
| Blade Length | 260" | 6,604 mm |
General Info
Stock #: 121260015
Location: OH
Brand: DoAll
Model: DC-560NC
Approx. Shipping Weight: 10,000 lbs
Approx. Shipping Dimensions: 84" L x 27" W x 85" T
Specifications
Machine Capacity: 24" x 22"
Cutting Capacity Round: 22"
Cutting Capacity Rectangle: 23.6" x 22"
Band Saw Blade: 2" x 260"
Band Speed: 72 - 390 SFPM
Band Drive: 10 HP
Hydraulic Pump: 3 HP
Hydraulic Tank Capacity: 34 Gal.
Coolant Tank Capacity: 37 Gal.
Automatic Index Length Single: 15.75"
Automatic Index Length Multiple: 141.73"
Material Pass Line Height: 33-1/2"
Equipped With
Toch Screen Control, Automatic Shuttle Vice, Hydraulic Clamping, Coolant Pump, Hydraulic Blade Tensioning
Additional Info
Can be inspected upon request.
