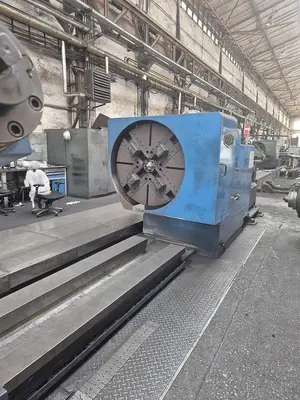

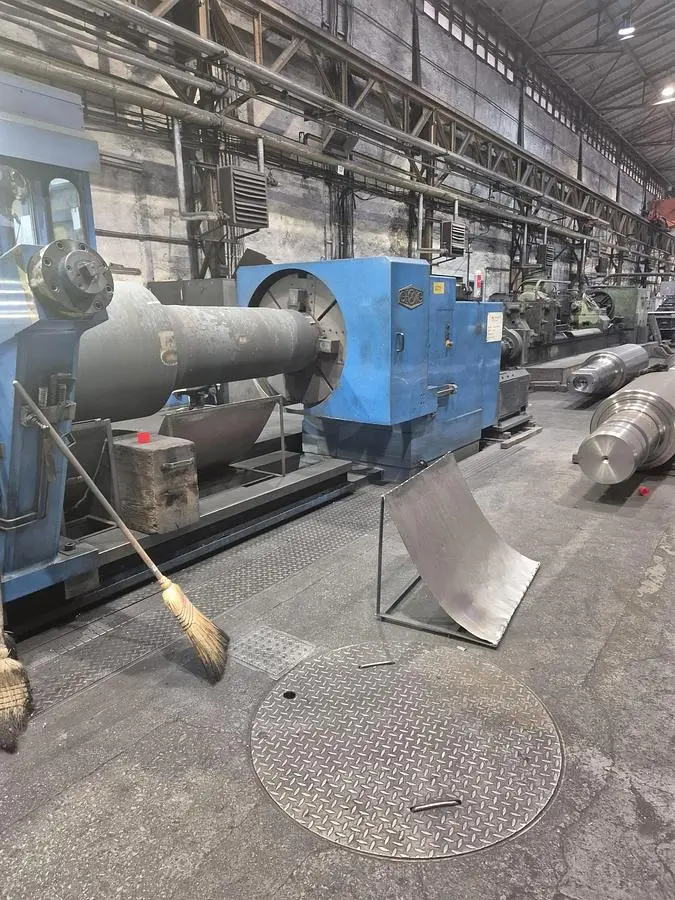

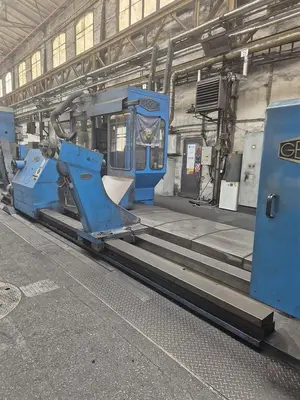

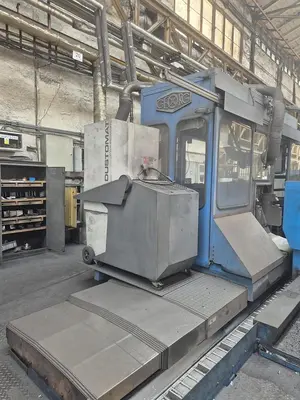

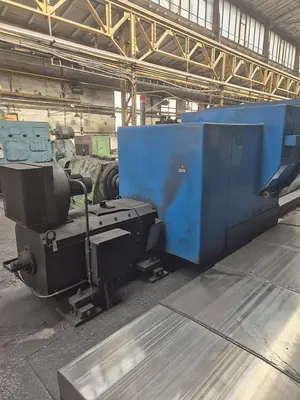

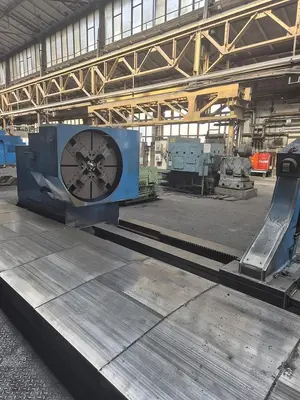

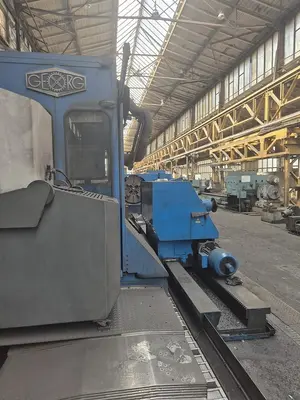

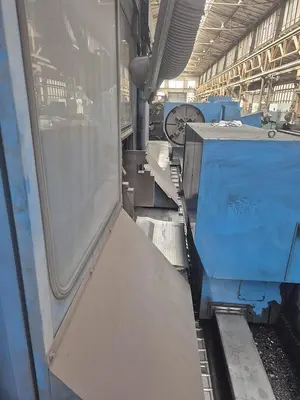

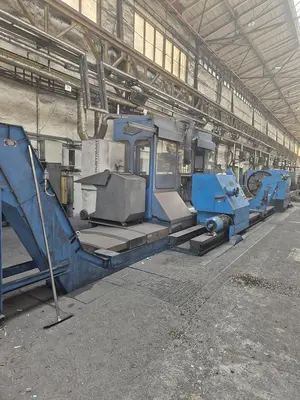

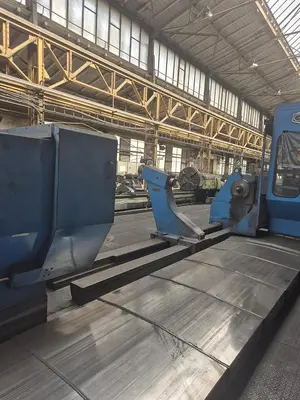

USED 2006 GEORG GWD 1300/6000/20

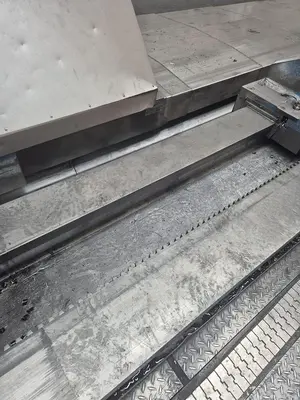

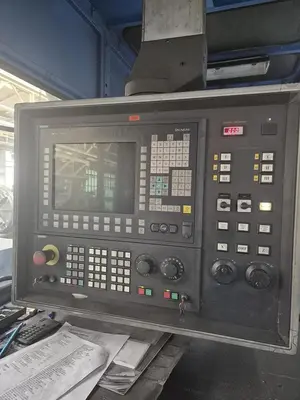

Siemens SINUMERIK 840D CNC ControlMachine Bed with Chip Conveyor and Telescopic Sheet Metal Cover for the Support GuidewaysNumber of Guideways - 4Number of Tailstock Guideways - 2Number of Support Guideways - 2

Manufacturer: Georg
Model: GWD 1300/6000/20
Year: 2006
Condition: Used
Stock Number: 5654362
Between centers: 6,000 mm
Capacity between centers: 20 Ton
Swing over bed: 1,400 mm
Swing over support: 1,300 mm
Chuck speed: 1 - 20 - 250 rpm
Main motor power: 7.6 - 152 - 152 kW
Main motor torque: 66000 - 66000 - 18860 Nm
Diameter - main shaft in the front bearing area: 400/540 x 140 mm
Flange Bore Diameter: 100 mm

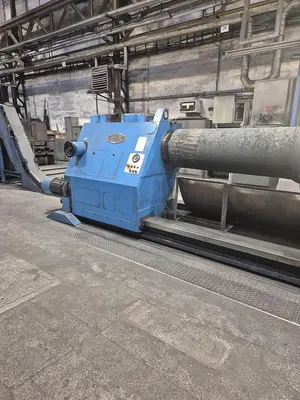

Tailstock quill diameter: 450 mm
Tailstock adjutsment speed: 2000/4000 mm/min
Travel support on the machine bed in X-axis: 6,500 mm
Travel cross slide on the main slide along the X-axis: 700 mm
Diameter of ball screw on X-axis: 80 mm
Length of machine bed: 9,900 mm
Width of machine bed: 2,000 mm
Height of machine bed: 600 mm
