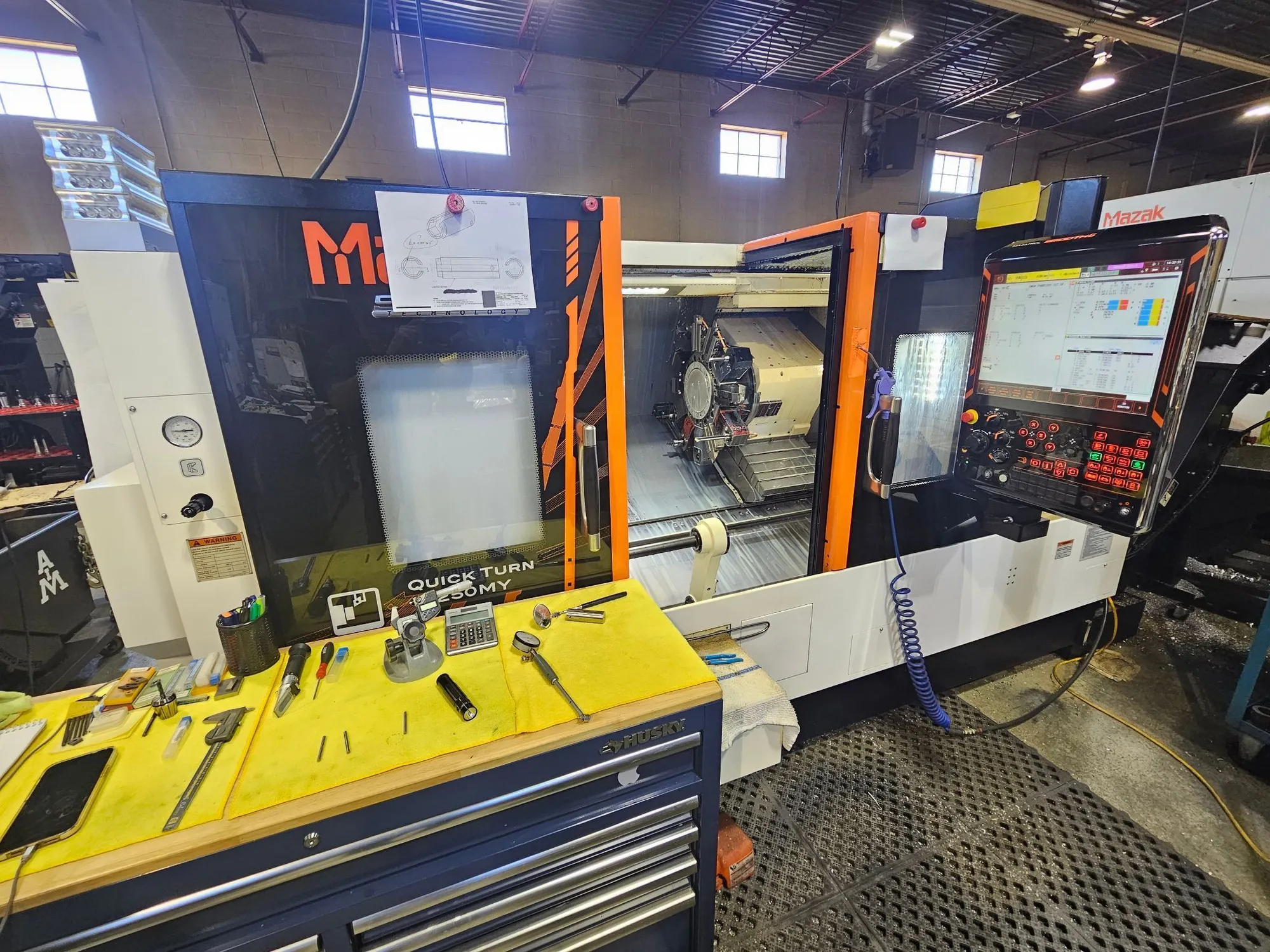

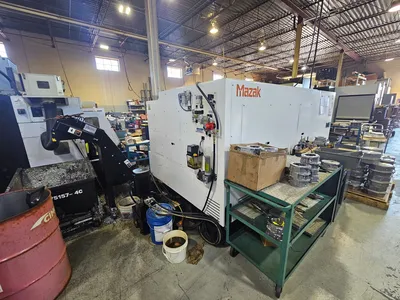

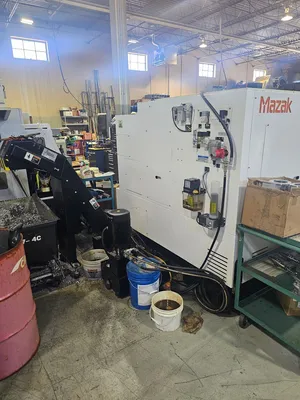

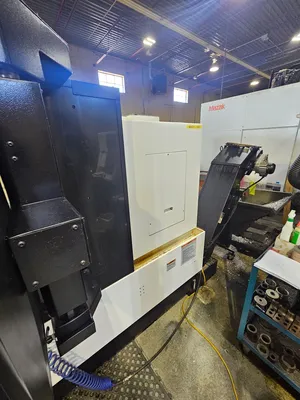

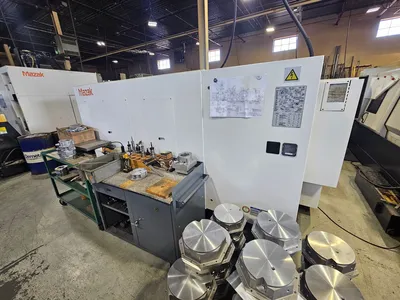

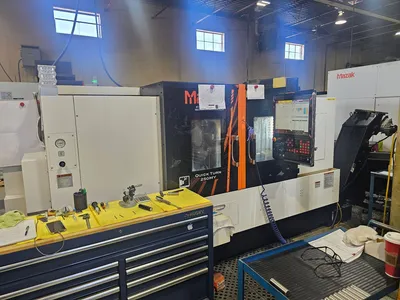

2020 Mazak Quick Turn 250MY Multi-Axis CNC Lathe, Milling Tool, Y-Axis, Programmable Tailstock, Automatic Tool Presetter, Chip Conveyor, Scale Feedback, Synchronized Mill Tapping
| Max Swing | 27.36" | 694.94 mm |
| Turning Dia | 14.96" | 379.98 mm |
| Machining Length | 39" | 990.6 mm |
| # Axis | 4 | 4 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.15" | 80.01 mm |
| Spindle Bore | 3.58" | 90.932 mm |
| Power | 25 hp | 18.6 kW |
| Power (Milling Tool) | 35 hp | 26.1 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Max RPM (Milling Tool) | 5,000 RPM | 5,000 RPM |
| X-Axis Travel | 9.21" | 233.93 mm |
| Y-Axis Travel | ±1.96" | ±1.96" |
| C-Axis Rotation | 360° | 360° |
| Z-Axis Travel | 42.9" | 1,089.7 mm |
| Spindle Nose | A2-8 | A2-8 |
| Tailstock | Yes | Yes |
| Tailstock Travel | 42.32" | 1,074.9 mm |
| Live Tooling | Yes | Yes |
| Tailstock Taper | MT5 | MT5 |
| Sub Spindle | No | No |
| Rapid Traverse (X/Z) | 1,181 / 1,299 in/min. | 1,181 / 1,299 in/min. |
| Rapid Traverse (Y) | 826 in/min. | 21 m/min. |

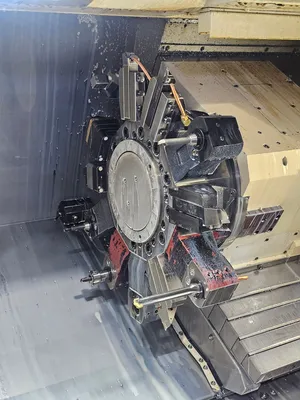

| Turret Capacity | 12 | 12 |
| Made In | United States | United States |

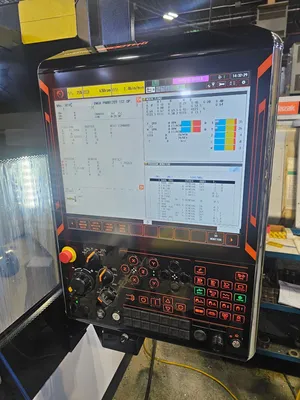

| Control | CNC (Mazatrol Smooth) | CNC (Mazatrol Smooth) |
| Dimensions | 139.76" X 78.54" X 73.11" | 139.76" X 78.54" X 73.11" |
| Weight | 14,500 lb | 14,500 lb |
75% machined mostly Aluminum
Y-axis
Milling tool (5000 rpm)

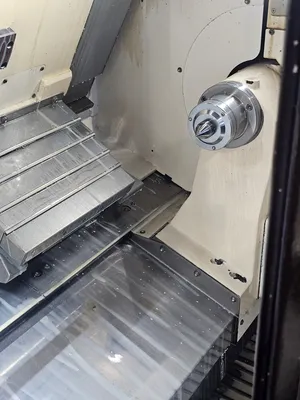

Programmable tailstock

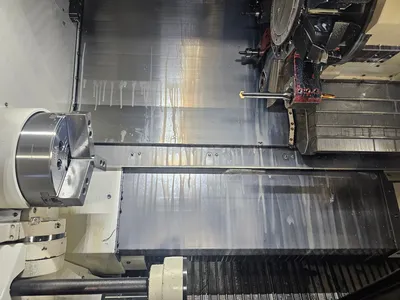

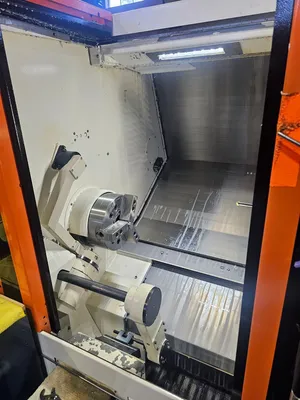

10" 3-jaw hydraulic chuck
Automatic tool presetter
C-axis

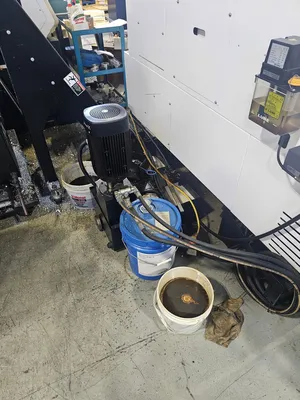

Chip conveyor
Scale feedback
Synchronized mill tapping
Standard tooling package
