USED 2011 GANESH CYCLONE-32GTS

Illinois, United States
Asking Price
USD $22,000.00
1 available
Your Partners in productivity. 520 Machinery Sales specializes in new and used machine tools sales.
Overview
Multiple Spindle Automatic Screw Machines

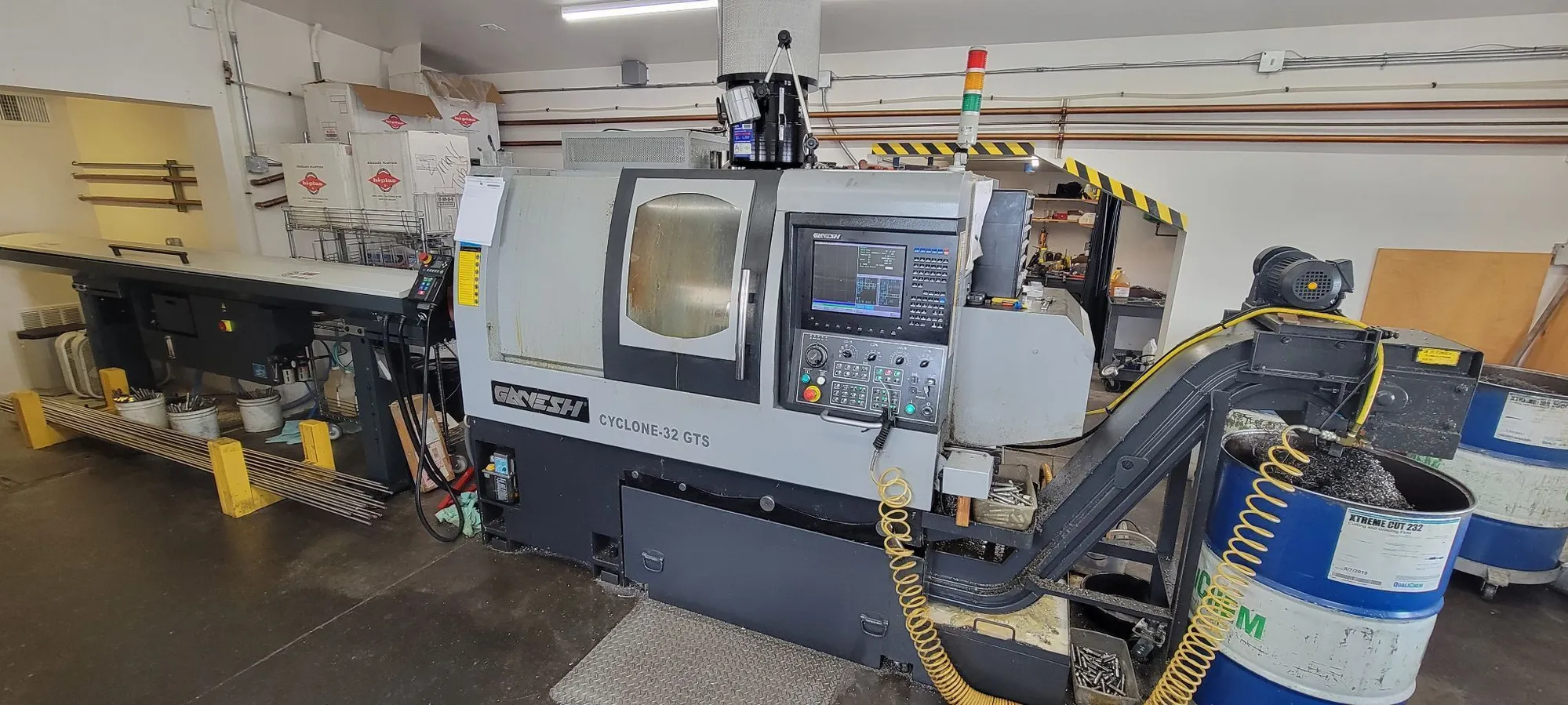

2011 Ganesh Cyclone 32GTS CNC Lathe With Sub-Spindle. Machine is in good condition and can be viewed under power as needed. All original manuals are with the machine. Spare toolholders and extra collets will be included. Machine has a chip conveyor and a 2015 12' LNS barfeeder included. ROYAL FILTERMIST ON TOP OF MACHINE NOT INCLUDED.

Specs
Live Tooling
No
No
Y-Axis
No
No
Sub Spindle
Yes
Yes
Machining Length
10.63"
270 mm
# Axis
3
3
X Travel
13"
330.2 mm
Z Travel
10.63"
270 mm
Bar Capacity
1.25"
31.75 mm
Power
10 hp
7.5 kW
Max RPM
6,000 RPM
6,000 RPM
Tailstock
No
No
Barfeed
Yes
Yes
Control
CNC (Ganesh (Mitsubishi))
CNC (Ganesh (Mitsubishi))
Dimensions
103"L X 50"W X 67"H
103"L X 50"W X 67"H
Weight
7300 Lbs
7300 Lbs
Equipped With

12' LNS Barfeeder (Purchased new in 2015)
All Manuals Included
