Cubic GTV-42 High Speed Gang Style CNC Lathe New in 2019, With Fedek Barfeed, The Cubic GTV-42 is a high-precision vertical gang-tool CNC lathe designed for small-part production. Its vertical design and gang-tooling layout prioritize extreme accuracy (0.00005") and fast cycle times by eliminating turret indexing.
| size | 6" Chuck | 6" Chuck |
| Swing | 12" | 304.8 mm |
| Machining Length | 7" | 177.8 mm |
| # Axis | 4 | 4 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 1.65" | 41.91 mm |
| Power | 7.5 hp | 5.6 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 8" | 203.2 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 80 x 45 x 68 in | 80 x 45 x 68 in |
| Weight | 4500 lbs | 4500 lbs |

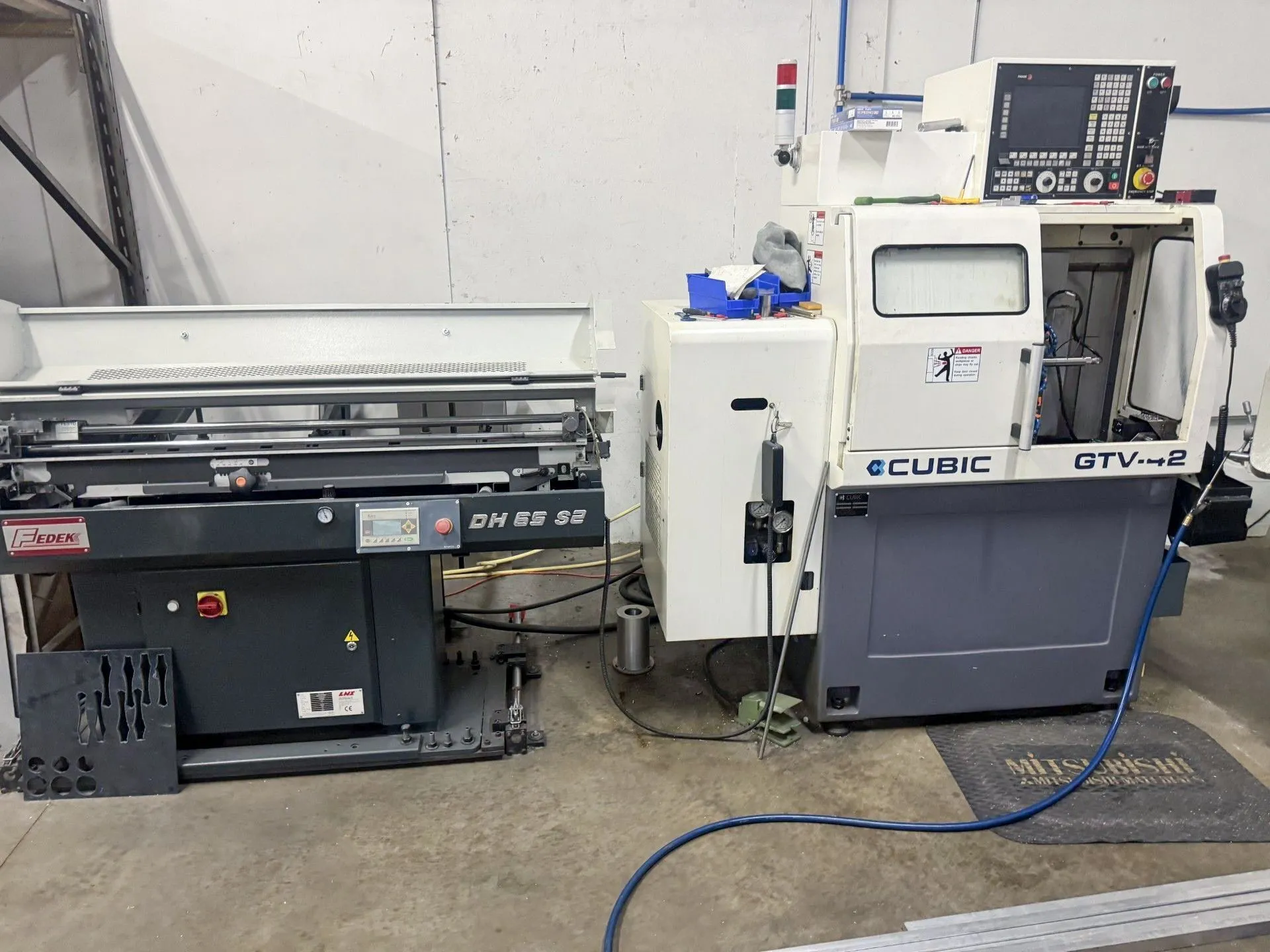

Cubic GTV-42 High Speed Gang Style CNC Lathe (2019)
Bar Capacity
42 mm (1.654 in)
X-Axis Travel
300 mm (11.8 in)
Z-Axis Travel
165 mm (7.0 in)
Simultaneous Axes
X-Z-C, X-C & Z-C Flat Plane Selection
Positional Repeatability
0.000050"
Accuracy
0.000050"
Spindle Runout
0.000050"
Spindle Speeds
60 – 6,000 RPM
Spindle Nose
16C Collet Nose
Motor Power
10 HP (Peak) / 7.3 HP (Cont.)
Rapid Traverse
945 ipm (24 m/min)
Machine Weight
3,750 lbs (1,704 kg)
Fagor 8055 CNC Control
Fedek DH 650 S2 60" Bar Feed ( 5-65MM )
Collet Chuck
Manual Pulse Generator Remote Jog Handwheel
Parts Catcher
Live Tooling
Gang tool holders
ER16 Collets
Short Loader
NSK Spindle and Ballscrews
Transformer
Foot Pedal For Chuck
L Shaped Tool Plate
