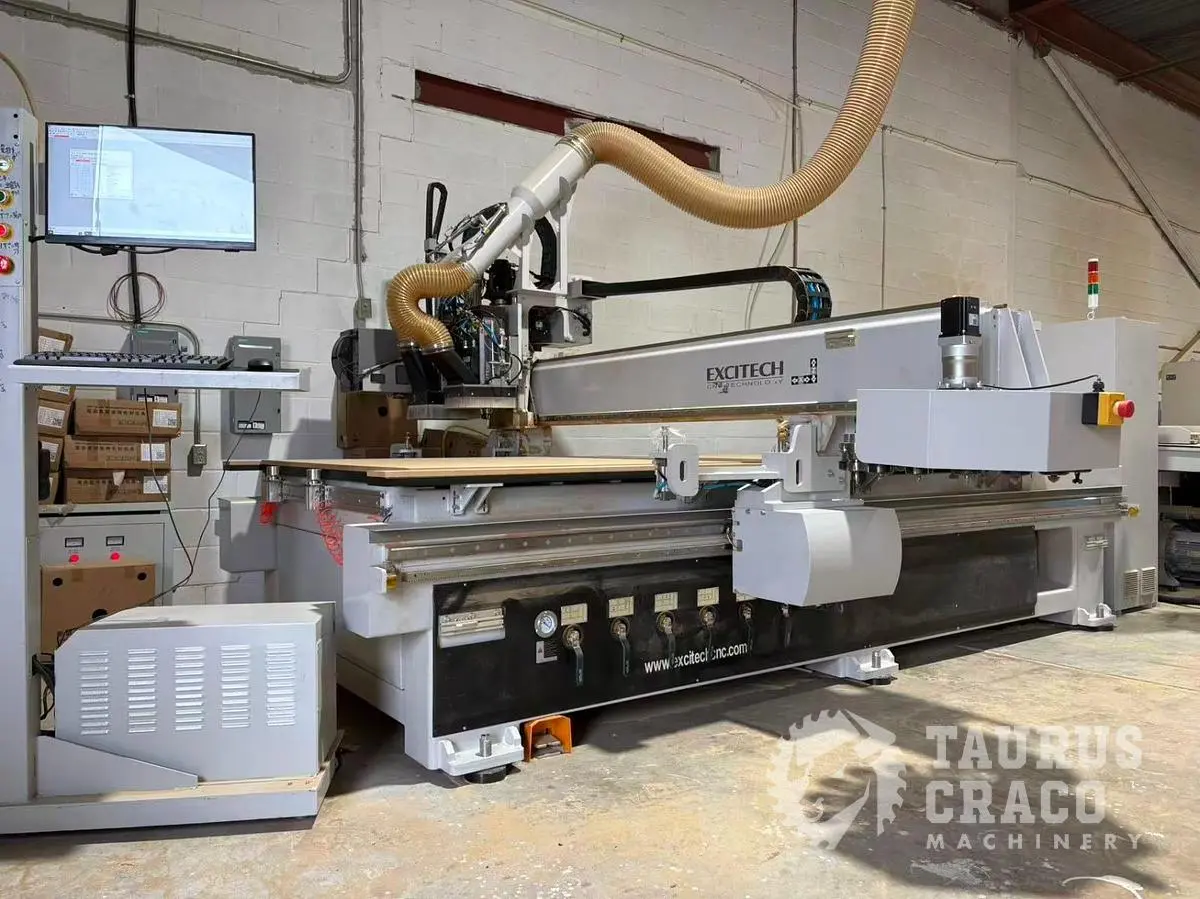

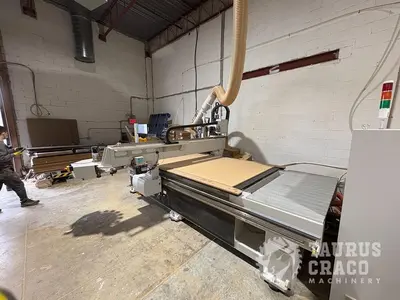

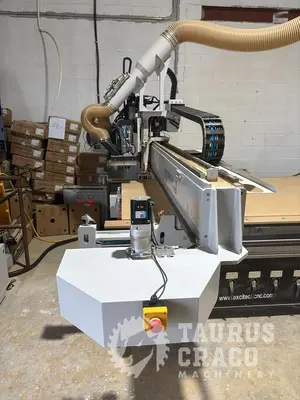

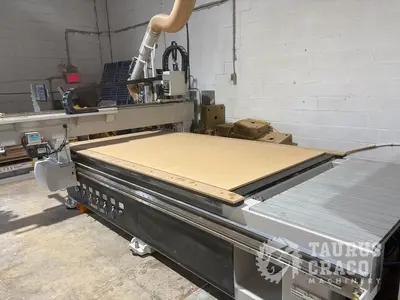

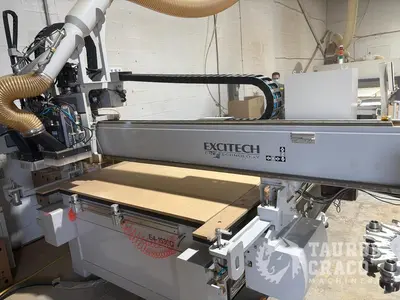

USED 2023 EXCITECH E4‑1530D CNC ROUTER 5' X 10'

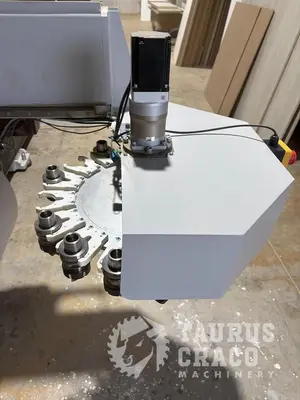

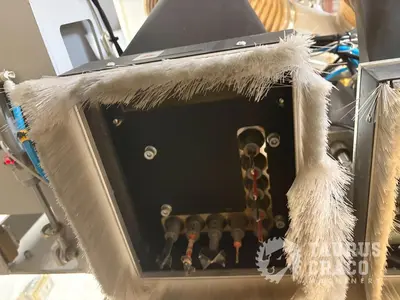

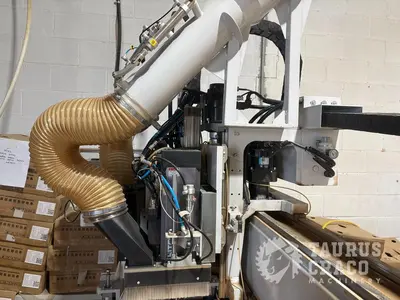

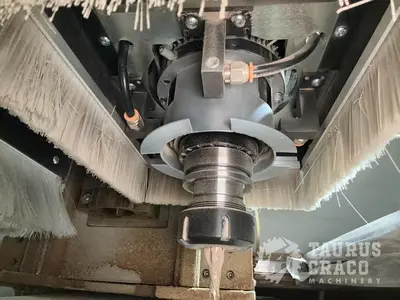

Manufacturer: Excitech Model: E4‑1530D Year: 2023 Condition: Used – Great Condition Approx. Running Hours: ~1,000 hrs The Excitech E4‑1530D is a modern, production‑ready CNC router designed for cabinet, furniture, and panel processing. Featuring a fixed table with moving gantry, this machine offers excellent rigidity, accuracy, and repeatability for both nested‑based routing and point‑to‑point operations. With a generous 5' × 10' working envelope, an HSD spindle, and a 16‑position rotary tool changer, this CNC is well suited for shops looking for a capable, cost‑effective machining solution with minimal operating hours. Table size: 5' × 10' Machine design: Fixed table, moving gantry Z‑axis stroke: 200 mm (7.8") Reference system: Pneumatic reference stops Vacuum system: Selectable vacuum zones X & Y axes: Rack & pinion drive Z axis: Ball screw drive Gear reducer: Shimpo Spindle manufacturer: HSD Power: 12.75 HP (9.5 kW) Tool holder interface: HSK, quick‑change Spindle speed: Variable, up to 24,000 RPM Cutting speed: Up to 75 FPM Automatic tool changer: 16‑position rotary ATC Includes: (8) tool holders Drill configuration: (9) vertical spindles Designed for cabinet hardware preparation, line boring, and dowel drilling applications Vacuum pump: Becker Power: 7.5 HP Provides reliable workpiece hold‑down for nested routing operations Controller: OSAI system Interface: PC‑based control on mobile stand Operating system: Windows Input devices: Standard keyboard and mouse Voltage: 380 V Frequency: 60 Hz Phase: 3‑Phase Includes: External electrical transformer Cabinet and casework production Nested‑based panel processing Furniture components Routing, drilling, pocketing, and contouring Small‑ to medium‑production environments
