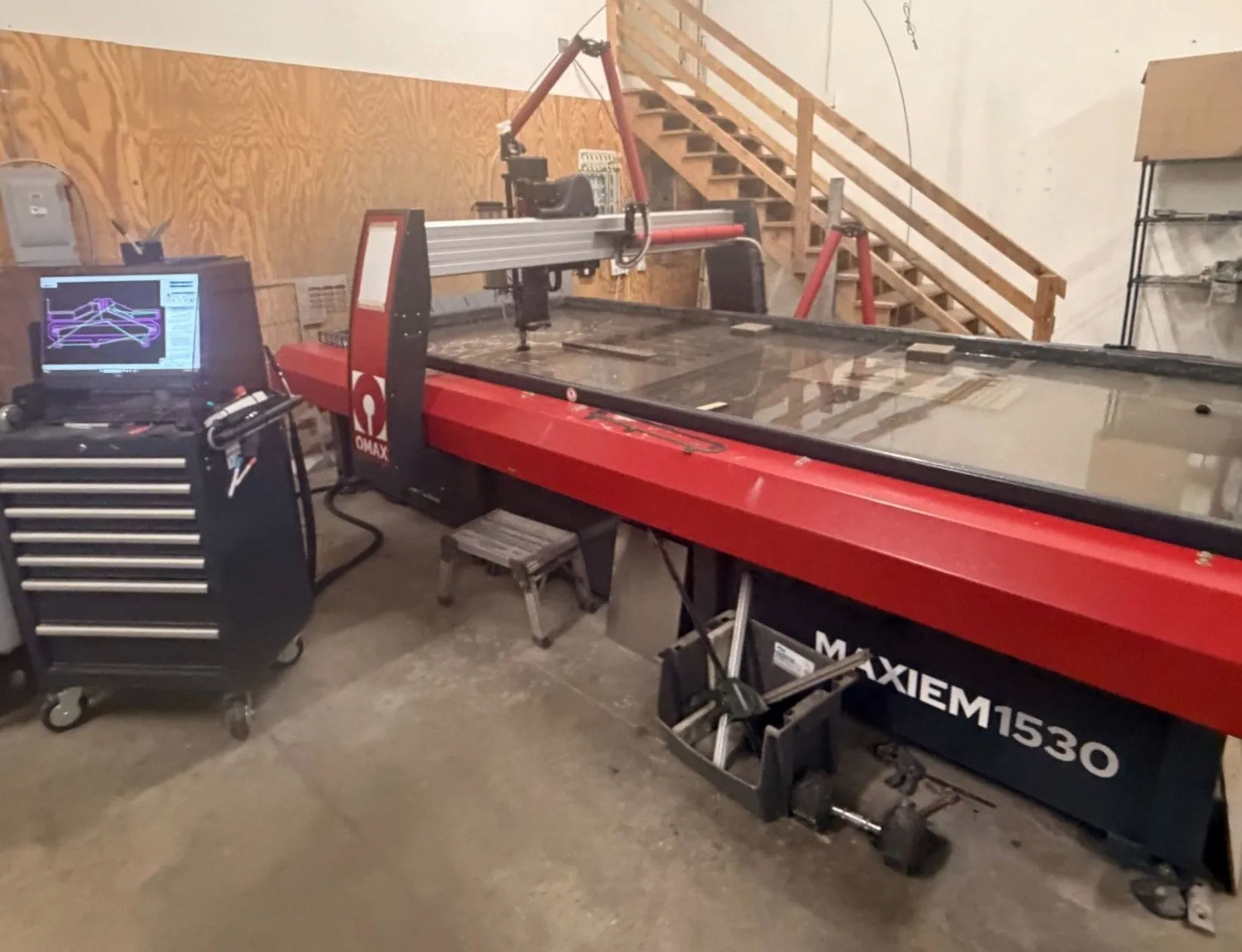

USED 2013 OMAX MAXIEM 1530

(2013) Omax Maxiem 1530 CNC Water Jet (2015), Under 200 Pump Hours, From prototype development to full-scale production, the MAXIEM 1530 can do it all. With a spacious cutting envelope
and a rigid tank design, the 1530 is scaled to handle common plate sizes with room to spare. Like all MAXIEM
waterjet machines, the 1530 waterjet provides a cutting tolerance of ±0.003" (±0.076 mm). MAXIEM machines feature
IntelliTRAX®, the high-precision, traction drive technology designed exclusively for the abrasive waterjet environment.
The MAXIEM 1530 is compatible with the Motorized Z and A-Jet cutting heads and a full host of accessories. The
MAXIEM 1530 comes standard with whip-style plumbing but is upgradable to scissor-style plumbing.

Omax Maxiem 1530 CNC Water Jet (2013)

Weight (tank empty) 7,000 lb. 3,175 kg
Height (with standard plumbing) 10’ 6” 3.20 m
Operating weight 19,990 lb. 9,067 kg
Footprint (standard layout) 18’ 5” x 13’ 7” 5.61 m x 4.14 m
Work envelope/cutting table Imperial Metric
Cutting x-axis travel* 10’ 0” 3.04 m
Cutting y-axis travel* 5’ 2” 1.57 m
Cutting z-axis travel* 12” 304 mm
X-axis table size 12’ 2” 3.71 m
Y-axis table size 5’ 8” 1.73 m
Material supports slat size 4” x 14 gauge (galvanized steel) 102 mm x 2 mm
Speed 500”/min. 12.70 m/min.
Linear axis repeatability* ±0.001” ±0.025 mm
Linear axis accuracy* ±0.003” ±0.076 mm

145 Pump Hours
30 horsepower (22 kW), 50,000 psi (3,450 bar)
IntelliMAX Premium Software
On/Off Valve Assembly, Pull-to-Open
Continuous Feed Hopper - CFH600
2,200 lbs 80 HPA Garnet
