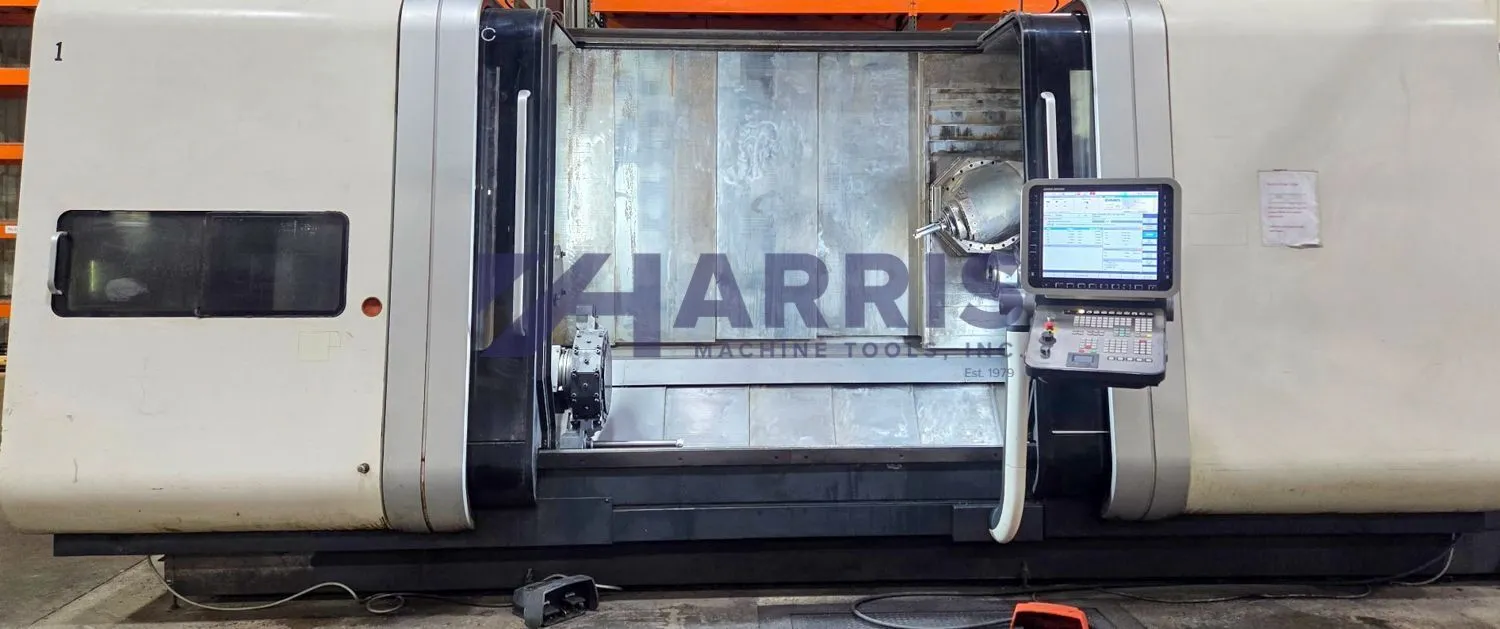

DMG MORI CTX GAMMA 2000 TC, used CNC multi-axis lathe, perfect for precision machining tasks. Maximize your productivity with this sophisticated, high-performance equipment. Ideal for advanced manufacturing needs.
| Machining Length | 78.74" | 2,000 mm |
| Bar Capacity | 4.1" | 104.14 mm |
| Power | 70 hp | 52.2 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 27.6" | 701.04 mm |
| Dimensions | 299" x 166" x 100" | 299" x 166" x 100" |
| Weight | 52,910 | 52,910 |
Capacity:
Maximum workpiece diameter: 27.6"
Maximum workpiece length: 78.74"
Maximum bar capacity: 4.1"
X1 travel: 25.59"
Y1 travel: +/-7.87"
Z1 travel: 80.70"
Z2 travel: 75.19"
Z3 travel: 75.19"
B-axis: +/- 0.001 Degrees
Main spindle:
Maximum speed: 2,500 Rpm
Motor output (30 minute rating): 70 Hp
Second spindle:
Maximum speed: 4,000 Rpm
Motor output (30 minute rating): 61 Hp
Milling spindle:
B-axis travel: 240 Degrees

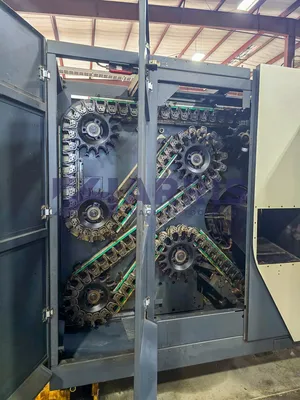

Tooling: Hsk63
Maximum speed: 8,000 Rpm
Motor output: 43 Hp
Approximate dimensions
299" X 166" x 100"
Approximate weight
52,910
Equipped with:

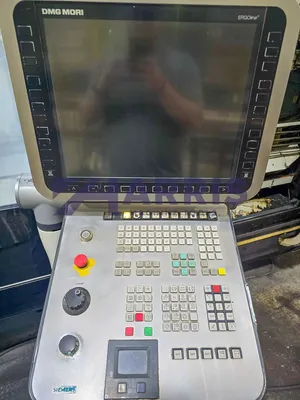

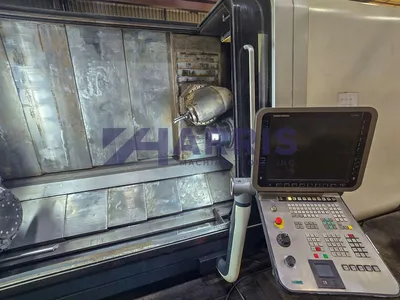

Siemens 840d cnc control

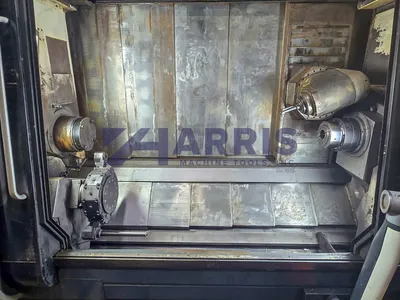

Main & counter spindles
Collet chuck on main spindle
Collet chuck on counter spindle
Lower turret

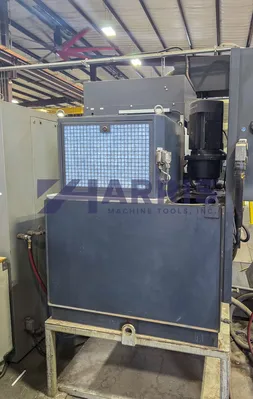

High pressure coolant system
