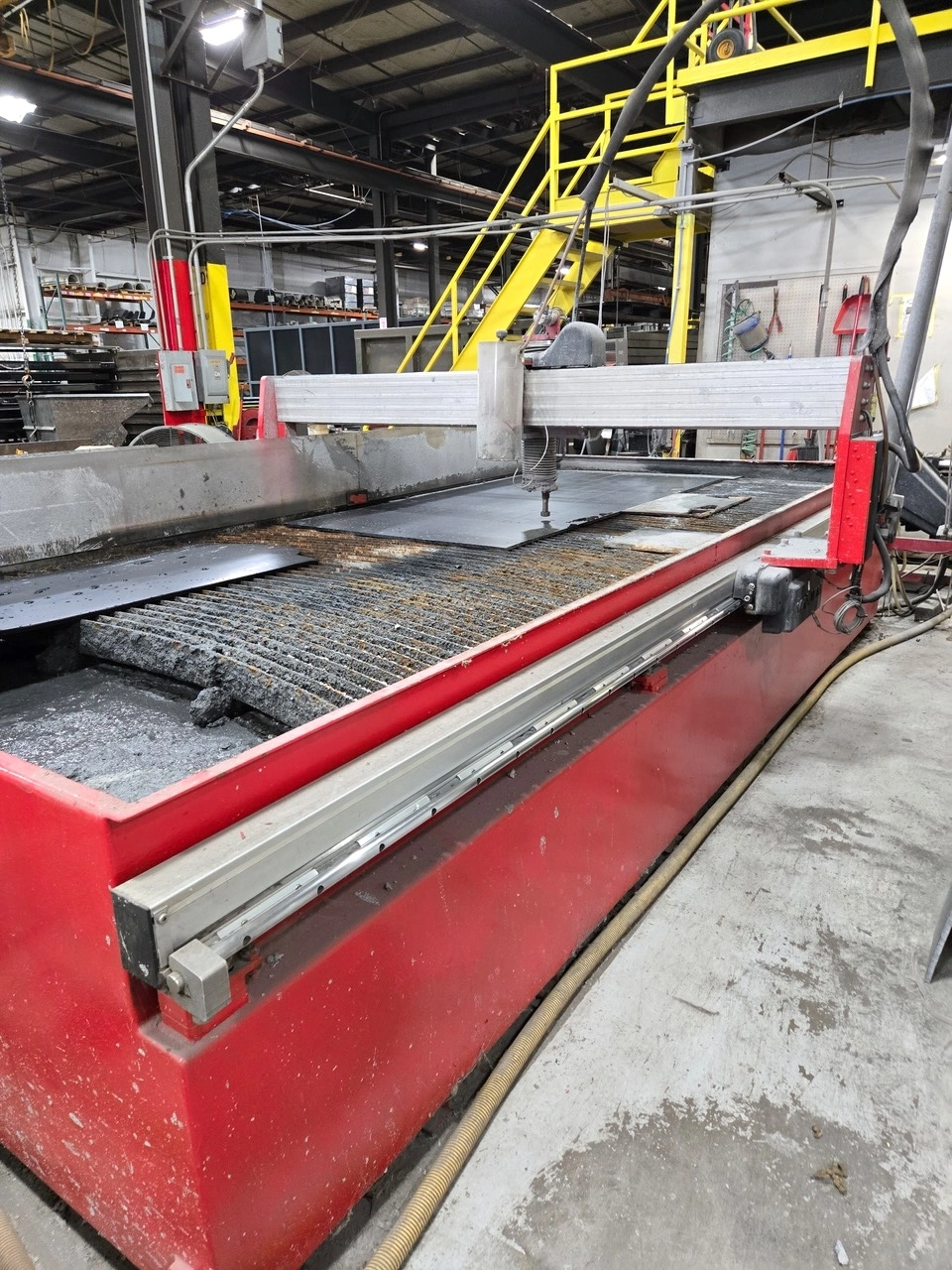

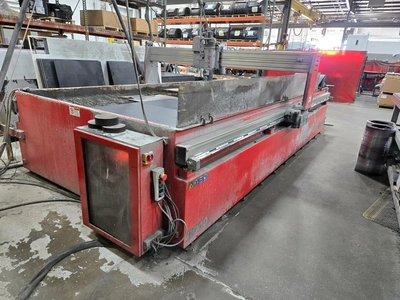

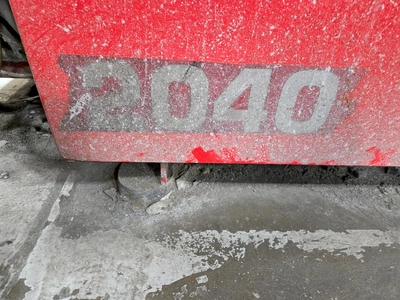

Omax 2040 CNC Waterjet

Omax 2040 CNC Waterjet

X-Y cutting travel* 13′ 10″ x 6′ 7″ (4.21 m x 2.00 m) Z-Axis travel (with motorized Z-Axis)* 12″ (304 mm) Table size 16′ 1″ x 7′ 0″ (4.90 m x 2.13 m) Material support slats 4″ x 14 gauge (102 mm x 2 mm) galvanized steel Maximum supported material load 300 lbs/sq ft (1,465 kg/sq meter) Electrical requirements 3-Phase, 380-480 VAC ±10%, 50-60 Hz Noise level Below 80 dBA at one meter for submerged cutting Speed 500 in/min (12.70 m/min) Linear positional accuracy* ±0.003” (±0.076 mm) Repeatability* ±0.001” (±0.025 mm) Ballbar circularity* ±0.005” (±0.127 mm) Footprint (with controller) 21′ 9″ x 12′ 11″ (6.63 m x 3.94 m) Weight (tank empty) 8,500 lbs (3,856 kg) Height 8′ 10″ (2.69 m) Operating weight 28,283 lbs (12,829 kg)
