3HP ACER “ULTIMA 3VKH” VERTICAL MILL - Sony Digital Readouts - 10” x 50” Table
| Table-W | 10" | 254 mm |
| Table-L | 50" | 1,270 mm |
| Travel-Long | 34" | 863.6 mm |
| Travel-Cross | 16" | 406.4 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| Taper | R-8 | R-8 |
| Weight | 3500 LBS | 3500 LBS |

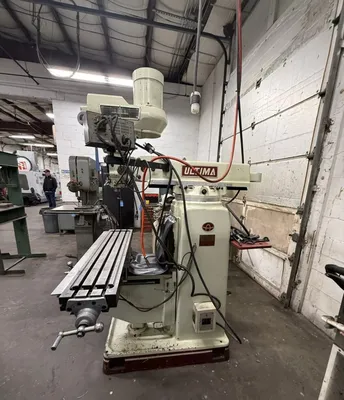

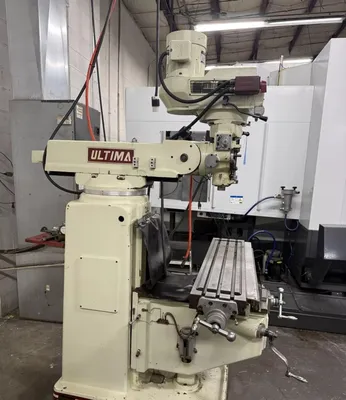

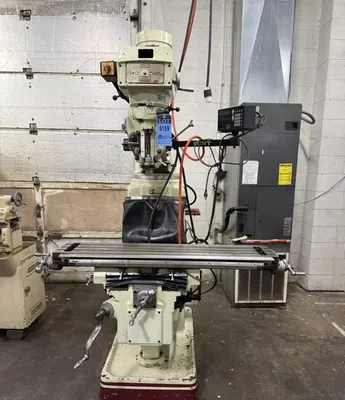

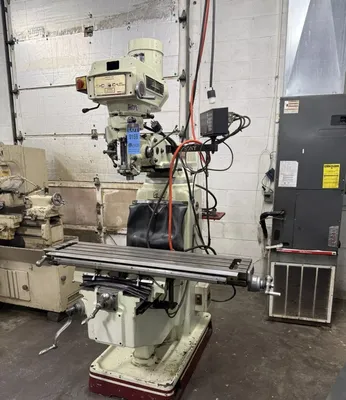

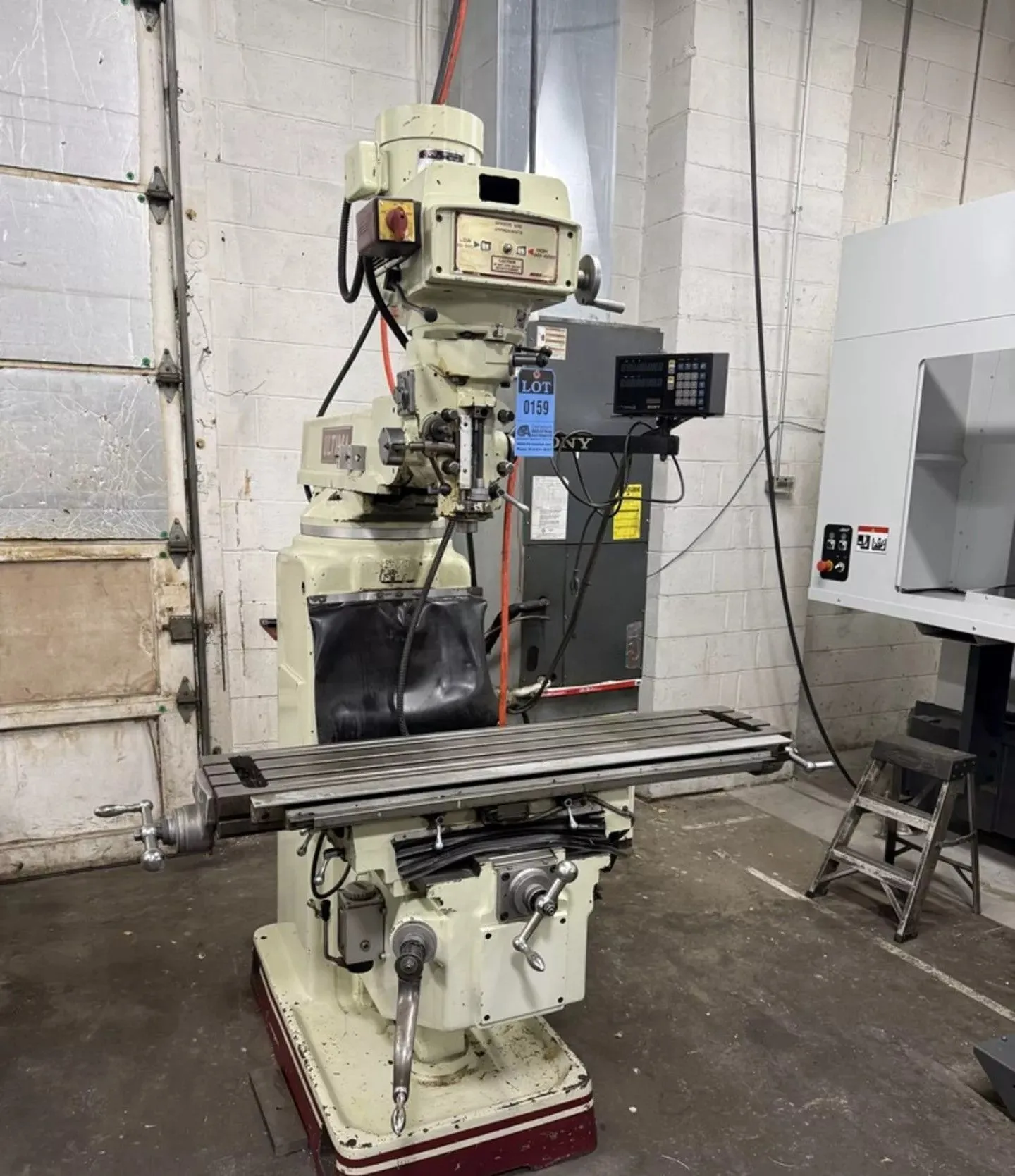

3 HP ACER “ULTIMA” VERTICAL TURRET MILL
Serial No 9605457, Model 3VKH, Series ULTIMA
EQUIPPED WITH:
Sony “MILLMAN LH51” 2-Axis Digital Readouts
3 HP Spindle Motor (Infinitely Variable Speeds)
Power Quill Feed
One-Shot Lubrication System
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 10" x 50"
Table Longitudinal Travel (X-Axis) 34"
Saddle Cross Travel (Y-Axis) 16"
Knee Vertical Travel (Z-Axis) 16"
Quill Travel (Z-Axis) 5"
Ram Travel 20"
Spindle Taper #R8
Head Swivel 360-DEGREES
Spindle Speeds Range, Variable 60 to 4200 RPM
(3) Vertical Feeds, Range .0015 to .006 IPR
Spindle Motor, Horsepower/RPM 3 HP/1730 RPM
Electrical System 220-440/3/60
Weight, Approximately 3500 LBS
F.O.B. OUR WAREHOUSE
