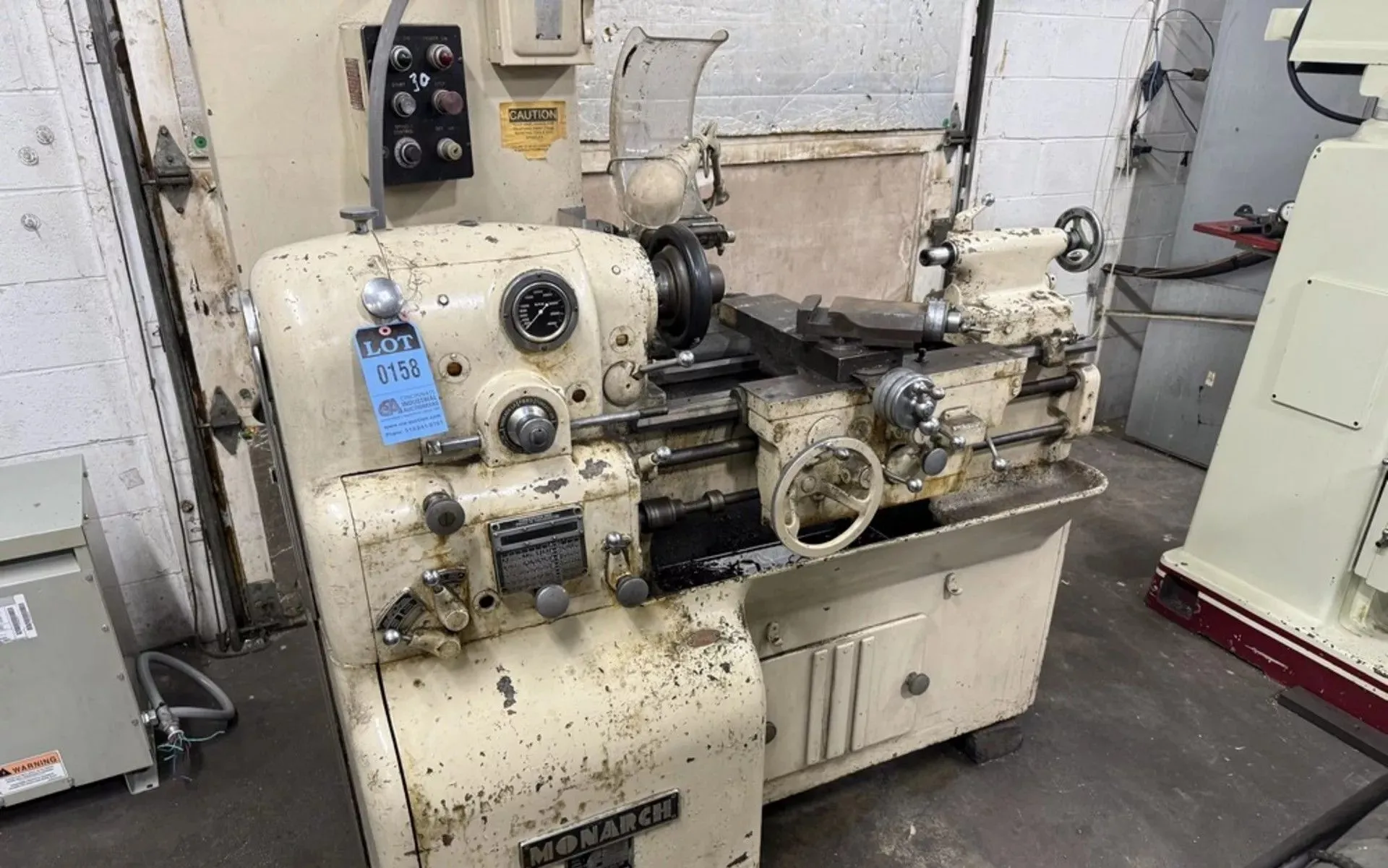

12.5" X 20" MONARCH “10EE” TOOLROOM PRECISION ENGINE LATHE - Taper Attachment - Collet Chuck
| Swing | 12.5" | 317.5 mm |
| Centers | 20" | 508 mm |
| Taper | Taper | Taper |
| RPM | 4,000 RPM | 4,000 RPM |
| Dimensions | 64” x 29” | 64” x 29” |
| Weight | 3450 LBS | 3450 LBS |
12.5" x 20" MONARCH "TOOLROOM" PRECISION ENGINE LATHE
Serial No EE44043, Model 10EE, Series Toolroom
EQUIPPED WITH:
Taper Attachment - Collet Chuck
Flame Hardened & Ground Bed Ways
Coolant System
CATALOG SPECIFICATIONS:
Hole Thru Spindle 1.41"
Swing Over Bed Ways, Rated 12.5"
Swing Over Cross-Slide 7.25"
Distance Between Centers 20"
Tailstock Spindle Diameter 1.25"
Tailstock Spindle Travel 3.5"
Spindle Speeds, Variable Range 0 to 4000 RPM
(50) Carriage Longitudinal Feeds .0005 to .016 IPR
(60) Thread Changes, Range 3 to 184 TPI
Spindle Motor, Horsepower 5 HP
Electrical System 220-440/3/60
Floor Space Required, L x W 5'4" x 2'5"
Weight, Approximately 3450 LBS
F.O.B. OUR WAREHOUSE
