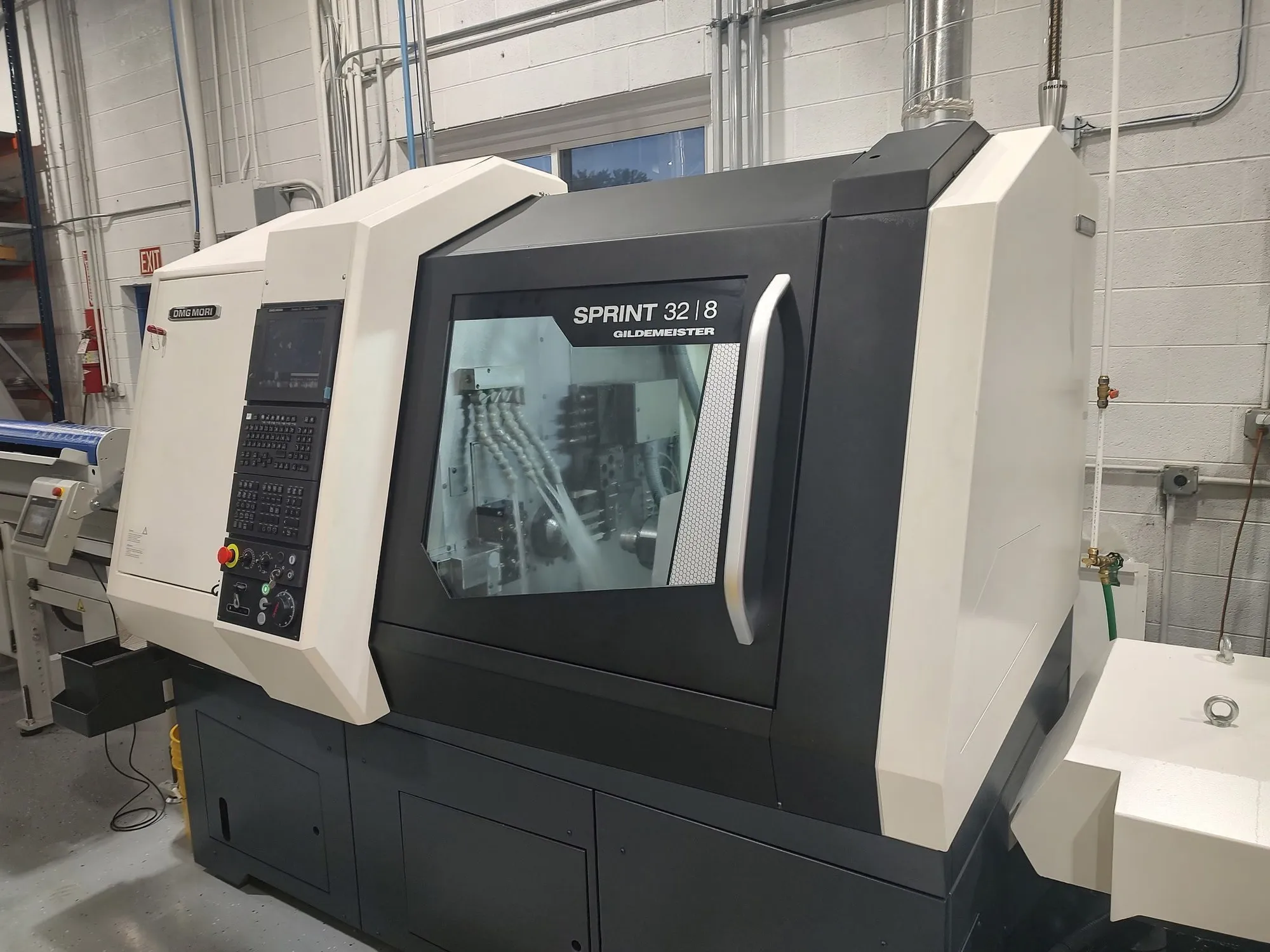

USED 2024 DMG MORI SPRINT 32/8
Overview
Description

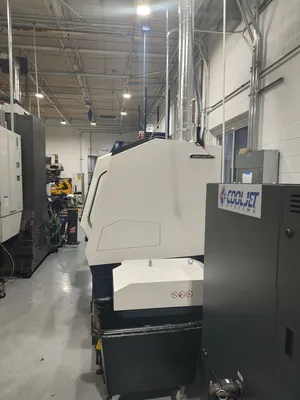

2024 DMG Mori Sprint 32/8 w/Iemca Barfeed and Cooljet Systems Coolant System and Chip Conveyor in Like NEW Condition
Specifications
| Spindle Hole Dia | 1.25" | 31.75 mm |
|---|---|---|
| Power | 7.5 hp | 5.6 kW |
| RPM | 8,500 RPM | 8,500 RPM |
| # Axis | 8 | 8 |
| Control | CNC (32i - Model B Plus) | CNC (32i - Model B Plus) |
Max. workpiece diameter: 1.3 in.
Max. workpiece length: 9.4 in.
Max. bar diameter: 1.3 in.
Max. X-axis travel: 2.8 in.
Max. Y-axis travel: 15.9 in.
Max. Z-axis travel: 3.9 in.
Control & software alternatives: Fanuc
Automatic turning with 6 linear axes and 2 C-axis
Main spindle with 8,500 rpm, 29.8 ft lb, 7.4 hp
Counter spindle with 8,500 rpm, 10.3 ft lb, 3 hp
SWISSTYPEkit optional for short and long part turning on one machine
Bar capacity diameter 32 (38)
Platform means modularity and flexibility
Total of 41 tool stations
8 driven tool stations as standard
Driven tools spindles 6,000 rpm, 2.2 ft lb, 1.3 hp

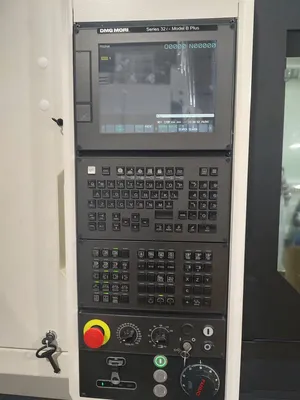

Control panel with 10.4″ color display and FANUC 32i-B Plus
2 control channels, 6 linear axes and 2 C-axes
Tool Monitoring System with graphical tool load display as option
Up to 2 tools working simultaneously
Equipped With

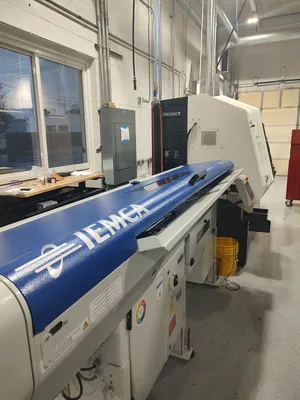

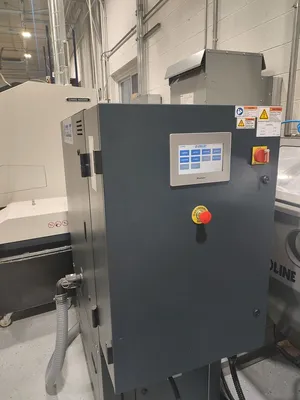

Chip Conveyor, Cooljet Systems Coolant System, IEMCA Barfeed, 32i-B Plus Control
