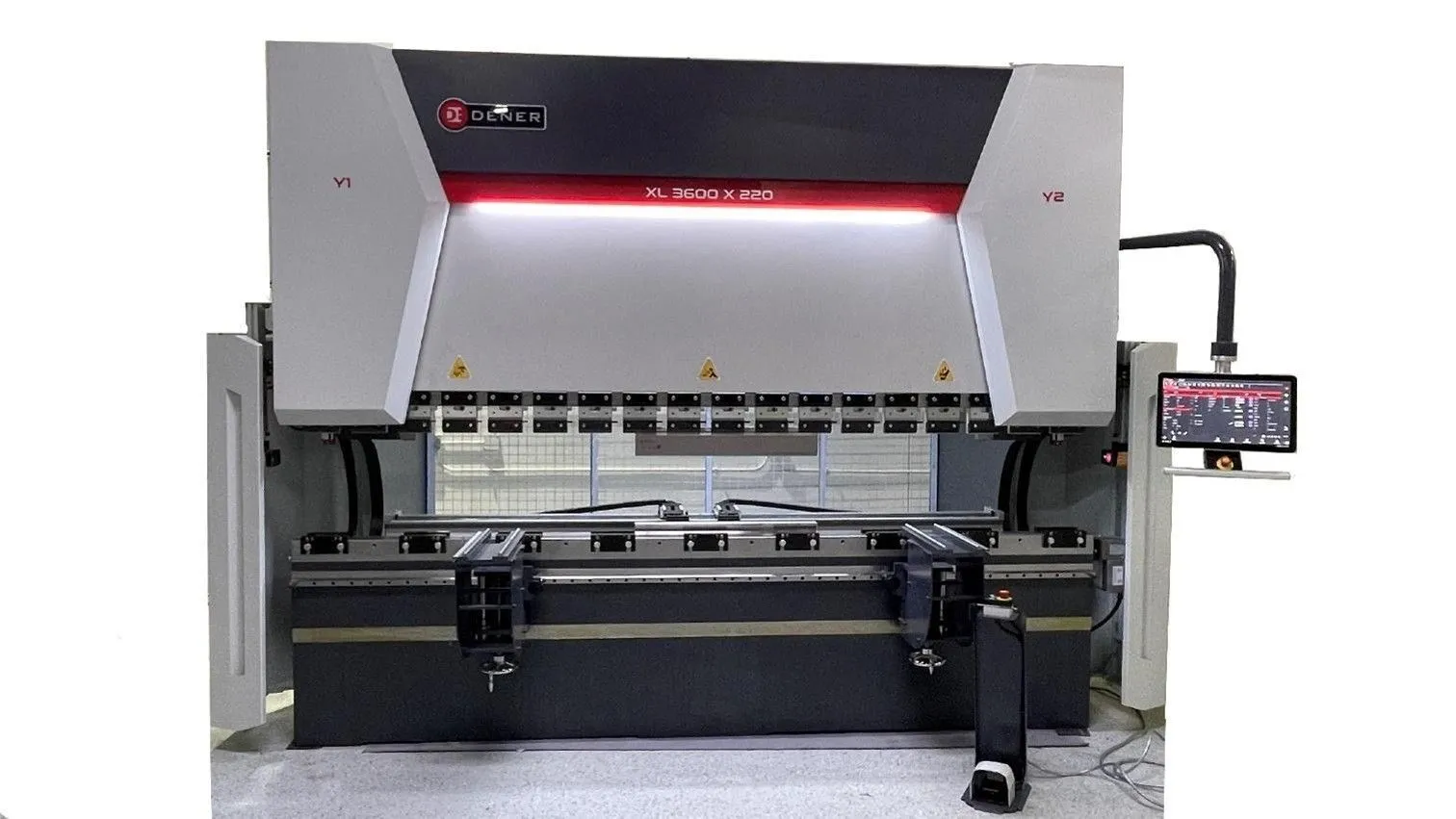

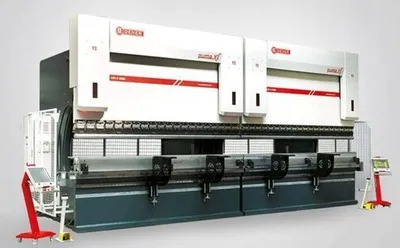

NEW DENER PUMA XL 175-30 HYDRAULIC PRESS BRAKE

Specifications (subject to buyer verification):
Capacity: 193 US Tons (175 metric tons)
Ram Repeatability: ± 0.0004: (± 0.01mm)
Approach Speed Max.: 5.89 IPS (150 mm/s)
Bend Speed Max.: 0.4 IPS (10 mm/s)
Return Speed Max.: 5.1 IPS (130 mm/s)
Punch Holder Height: 4.72" (120 mm)
Back Gauge Speed: 295 IPM (125 mm/s)
Back Gauge Repeat Accuracy: 0.002” (0.05 mm)
Back Gauge X Travel: 29.6" (750 mm)
Back Gauge Max Gauge Point: 36" (915mm)
R Axis Travel (Motorized optional): 9.8" (250 mm)
Bending Length: 143.7" (3,650 mm)
Distance Between Frames: 122" (3,100 mm)
Ram Stroke: 13.8" (350 mm)
Daylight w/o Punch Holders: 23.62" (600 mm)
Throat Depth: 17.7" (450 mm)
Table Height: 36.22" (920 mm)
Table Width: 3.74" (95 mm)
Oil Capacity: 75 Gallons (300 Liter)
Weight: 27,500 lbs (12,500 kg)

Equipped With (subject to buyer verification):
Y1, Y2, X CNC axes
ESA 640 15” 2D CNC control touch screen
Side safety covers and back protection covers without safety switch
LED lights over back gauge and front work area
Safety interlocked side and rear gates
CSA certified electric components
12-month warranty

Optional Equipment (available at an additional cost):
ESA 640 W 2D color touch Windows base controller – 15”
ESA 875 W 3D colour touch Windows base controller– 21”
DELEM 58T
DELEM 66T
DELEM 69T

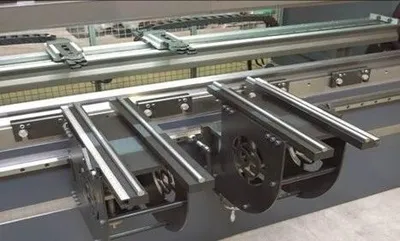

X, R axis back gauge

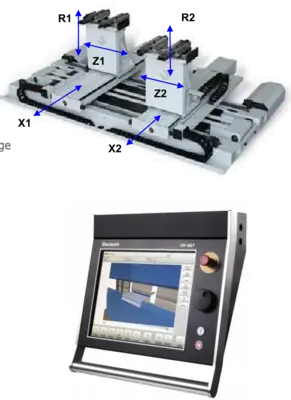

X, R, Z1, Z2 back gauge
X, R, Z1, Z2 + X prime back gauge

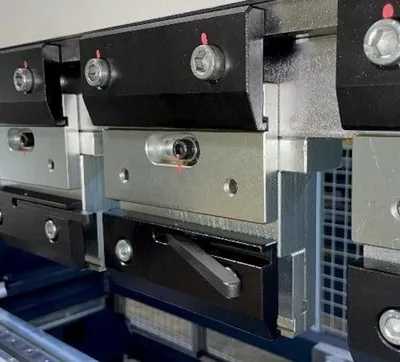

1281 code Eurostamp punch – 835 mm sections
2067 code Eurostamp 4V die (50-32-22-16 mm V’s ) – 835 mm sections
Manual crowning
CNC crowning
Manual adjusted AKAS LC II M (laser finger safety)
Automatic AKAS 3M (laser finger safety)
DSP laser (laser finger safety)

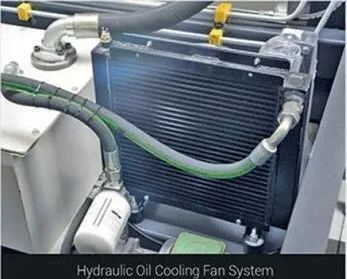

Hydraulic oil cooler
Hydraulic oil heater
600V transformer
Dener patented automatic angle measurement system
DATA M/Germany automatic angle measurement system
Aluminium packing for overseas shipment
