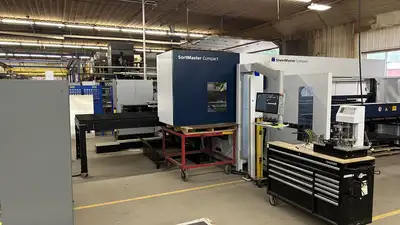

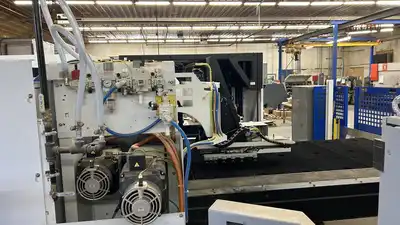

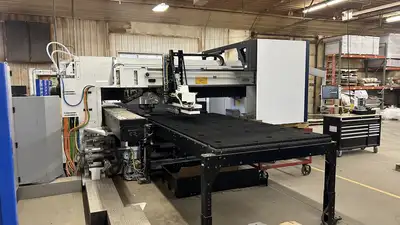

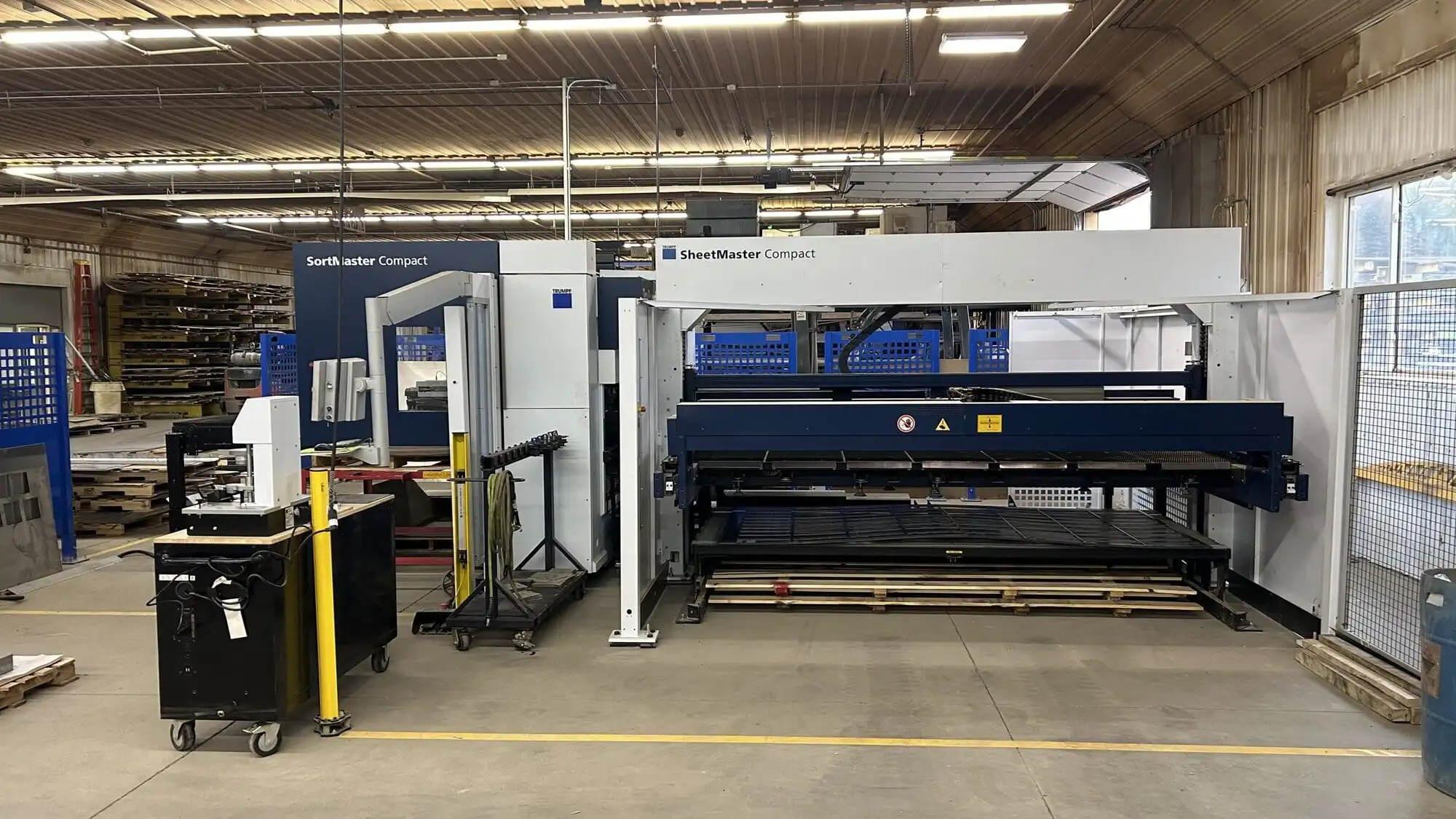

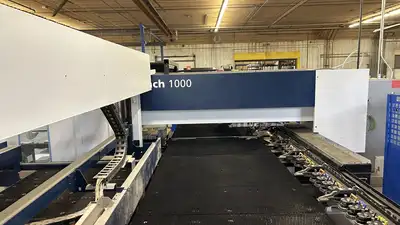

USED 2024 TRUMPF TRUPUNCH

Capacity: 18 Ton

Working area and capacity
Working Range (X-axis): 3000 mm
Working Range (Y-axis): 1500 mm
Maximum Sheet Thickness: 6.4 mm
Maximum Workpiece Weight: 150 kg
Maximum Punching Force: 165 kN (18.5 Ton)
Performance
Maximum Stroke Rate (Punching): 600 1/min
Maximum Stroke Rate (Marking): 1000 1/min
Max. Axis Acceleration (X/Y): 10 / 8 m/s²
Dimensions and weight
Width: 7644 mm
Depth: 7666 mm
Height: 2195 mm
Machine Weight: Approximately 20060 lbs (9100 kg)
Tooling and part removal
Number of Tools/Clamps: 18 pieces / 2 pieces
MultiTool Tool Changing Time: 2.4 s
Maximum Part Size (Part removal flap): 400 mm x 600 mm
Maximum Part Size (Fixed chute): 180 mm x 180 mm
1150 hrs Main Switch – 120hrs Run Time

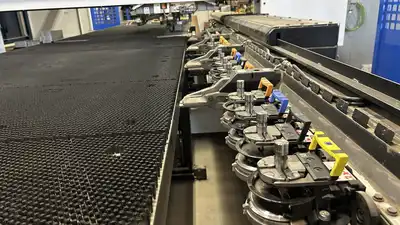

Quick Set tooling pictured included
